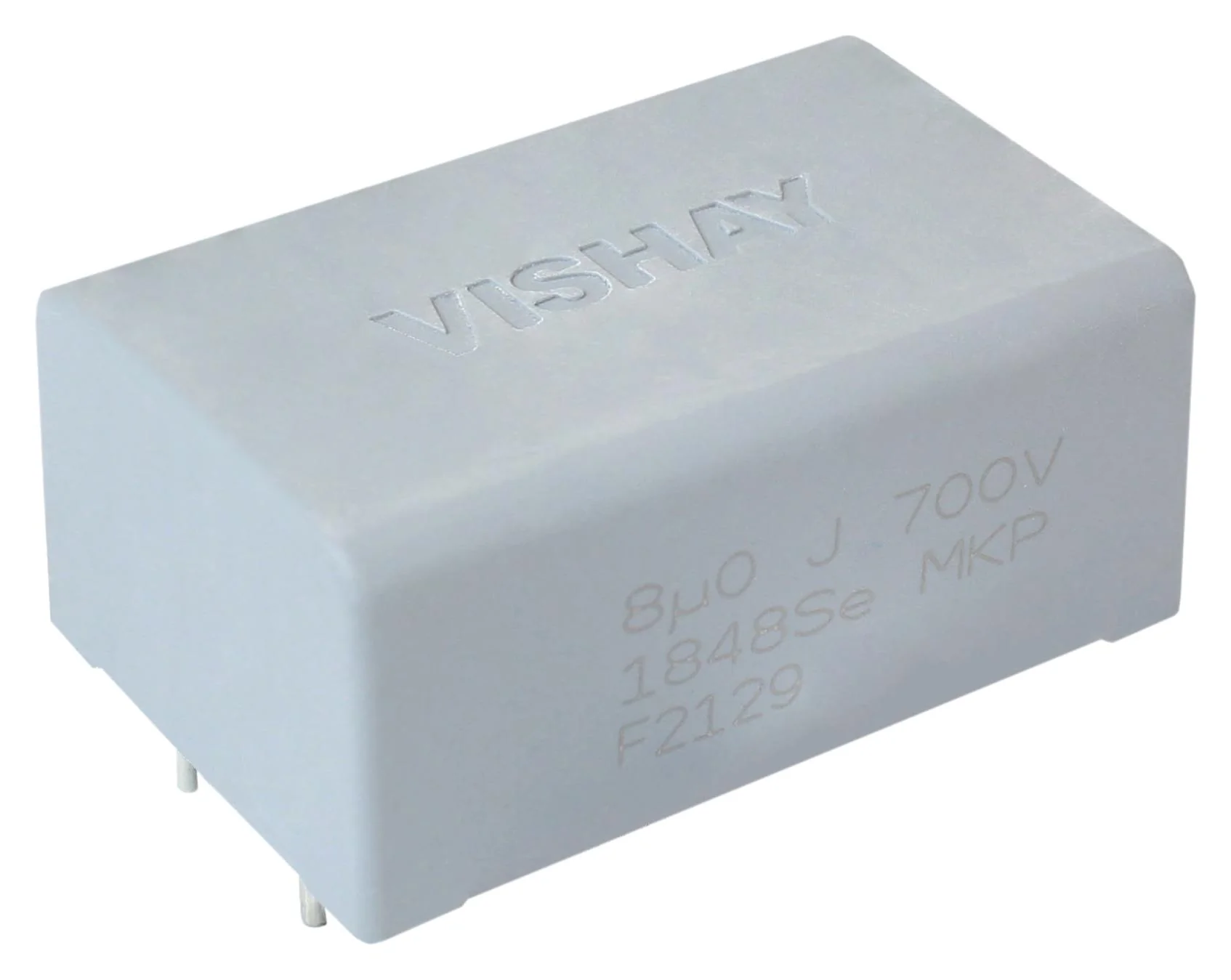

Vishay MKP1848SE58070JP4C Power Film Capacitor Metallized PP Radial Box - 4 Pin 8 µF ± 5% DC Link Through Hole
Vishay MKP1848SE58070JP4C Power Film Capacitor Metallized PP Radial Box - 4 Pin 8 µF ± 5% DC Link Through Hole
- THB and automotive grade
- AEC-Q200 qualified (rev. D) up to 105 °C
- High robustness under high humidity
- THB 60°C, 93%, 56 days RH at rated UNDC
- High ripple current capability, low ESR, low ESL
- Radial mounting
- Tinned wire terminals, mono construction
- Plastic case sealed with resin, flame retardant
- Polypropylene film dielectric
Other details
| Brand | VISHAY |
| Part Number | MKP1848SE58070JP4C |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $13.46
-70%$13.46
$4.04Vishay MKP1848SE58070JP4C Power Film Capacitor Metallized PP Radial Box - 4 Pin 8 µF ± 5% DC Link Through Hole
- THB and automotive grade
- AEC-Q200 qualified (rev. D) up to 105 °C
- High robustness under high humidity
- THB 60°C, 93%, 56 days RH at rated UNDC
- High ripple current capability, low ESR, low ESL
- Radial mounting
- Tinned wire terminals, mono construction
- Plastic case sealed with resin, flame retardant
- Polypropylene film dielectric
Other details
| Brand | VISHAY |
| Part Number | MKP1848SE58070JP4C |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
