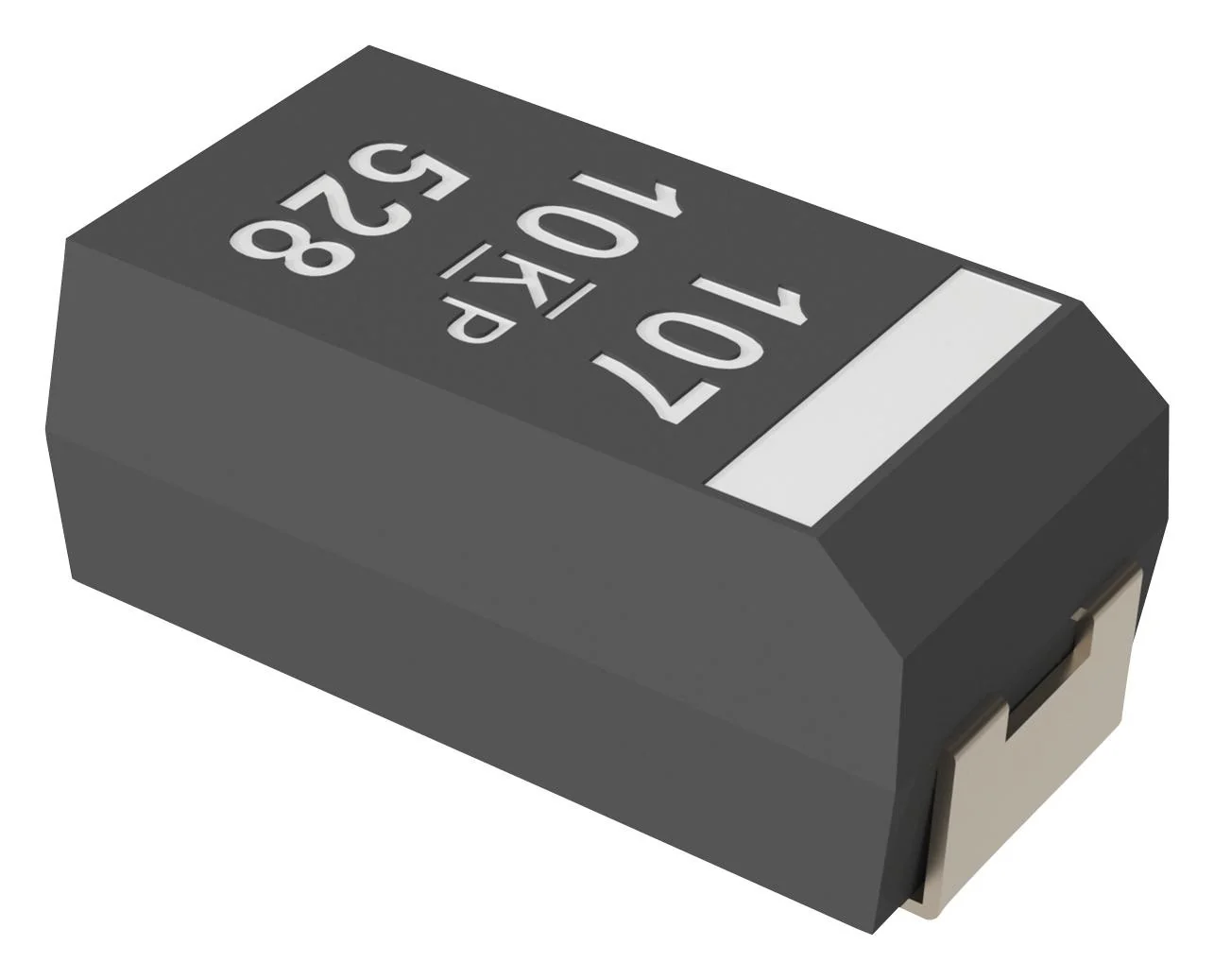

KEMET T598D227M010ATE025 Tantalum Polymer Capacitor, KO-CAP®, 220 µF, 10 V, T598 Series, ± 20%, D, 0.025 ohm

The KEMET Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyt

Ultra-low ESR
Complies with AEC-Q200 Qualification Test Plan
High reliability up to 1,000 hours with 85°C/85% RH load
Subject to PPAP/PSW and Change Control

Applications

Automotive

Product details

Manufacturer Size Code	D
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Voltage Rating	10V
Product Range	T598 Series
Automotive Qualification Standard	AEC-Q200
ESR	0.025ohm
Capacitance	220µF
Capacitance Tolerance	± 20%
Packaging	Cut Tape

Other details

Brand	KEMET
Part Number	T598D227M010ATE025
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
Product Change Notice EN
