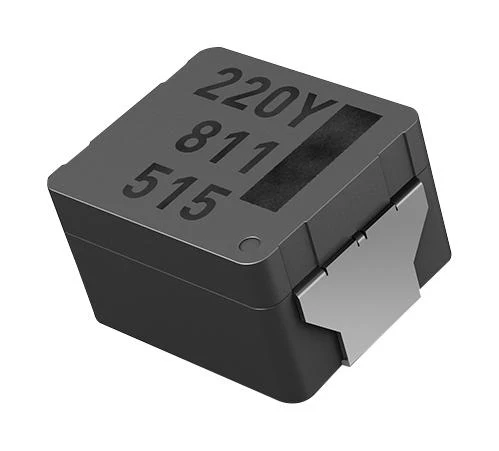

Panasonic ETQP5M220YFK Power Inductor (SMD) 22 µH 4.1 A Wirewound 6.9 8.5mm x 8mm 5.4mm
Panasonic ETQP5M220YFK Power Inductor (SMD) 22 µH 4.1 A Wirewound 6.9 8.5mm x 8mm 5.4mm
Automotive
Product details
| Inductance | 22µH |
| RMS Current (Irms) | 4.1A |
| Inductor Construction | Wirewound |
| Saturation Current (Isat) | 6.9A |
| Product Range | - |
| Power Inductor Case | 8.5mm x 8mm x 5.4mm |
| DC Resistance Max | 0.07ohm |
| Inductance Tolerance | ± 20% |
Other details
| Brand | PANASONIC |
| Part Number | ETQP5M220YFK |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $1.46
-70%$1.46
$0.44Panasonic ETQP5M220YFK Power Inductor (SMD) 22 µH 4.1 A Wirewound 6.9 8.5mm x 8mm 5.4mm
Automotive
Product details
| Inductance | 22µH |
| RMS Current (Irms) | 4.1A |
| Inductor Construction | Wirewound |
| Saturation Current (Isat) | 6.9A |
| Product Range | - |
| Power Inductor Case | 8.5mm x 8mm x 5.4mm |
| DC Resistance Max | 0.07ohm |
| Inductance Tolerance | ± 20% |
Other details
| Brand | PANASONIC |
| Part Number | ETQP5M220YFK |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
