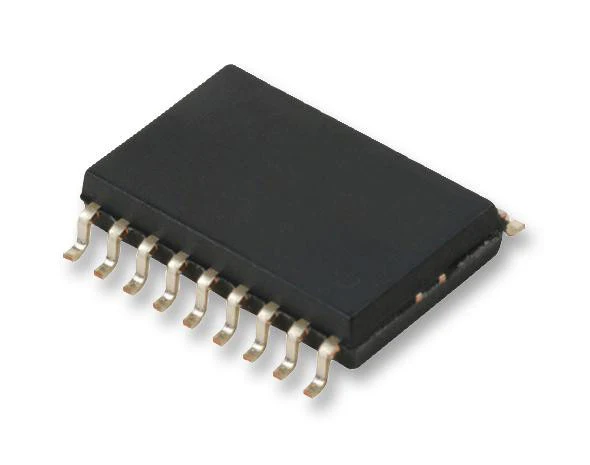

MICROCHIP PIC18F1220-I/SO 8 Bit Microcontroller, Flash, PIC18F1xxx, 40 MHz, 4 KB, 256 Byte, 18, SOIC
MICROCHIP PIC18F1220-I/SO 8 Bit Microcontroller, Flash, PIC18F1xxx, 40 MHz, 4 KB, 256 Byte, 18, SOIC
The PIC18F1220-I/SO is a 8-bit high-performance enhanced Flash Microcontroller with 10-bit A/D. This microcontroller has nanoWatt technology, which features six enhanced power-managed software controlled modes, power consumption as low as 0.1µA in standby mode and a wide operating voltage range from 2 to 5.5V which makes this device ideal for battery managed applications. This device also encompasses a new low-current watchdog timer, a 2-speed start-up from a reset or sleep mode and a new fail-safe clock monitor that is used to detect an external clock failure. The PIC18F1220 features a C compiler friendly development environment, 128 bytes of EEPROM, self-programming, an ICD, capture/compare/PWM functions, 7 channels of 10-bit Analogue-to-digital (A/D) converter, Addressable Universal Asynchronous Receiver Transmitter (AUSART) and advanced low power oscillator controls.
- Two-speed oscillator start-up
- Oscillator - Secondary oscillator using timer1 at 32kHz and fail-safe clock monitor
- Peripheral - Three external interrupts and enhanced capture/compare/PWM (ECCP) module
- Flash/data EEPROM retention of >40 years
- Self-programmable under software control
- Priority levels for interrupts
- 8 x 8 Single-cycle hardware multiplier
- Extended watchdog timer (WDT) - Programmable period from 41ms to 131s
- Single-supply 5V In-Circuit Serial Programming� (ICSP�) via two pins
- In-Circuit Debug (ICD) via two pins
Applications
Power Management, Sensing & Instrumentation, Test & Measurement, Communications & Networking, Consumer Electronics, Audio, Imaging, Video & Vision
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Controller Family/Series | PIC18F1xxx |
| Embedded Interface Type | EUSART |
| No. of I/O's | 16I/O's |
| Program Memory Size | 4KB |
| No. of Pins | 18Pins |
| Product Range | PIC18 Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 40MHz |
| Supply Voltage Min | 4.2V |
| MCU Case Style | SOIC |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 256Byte |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F1220-I/SO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
