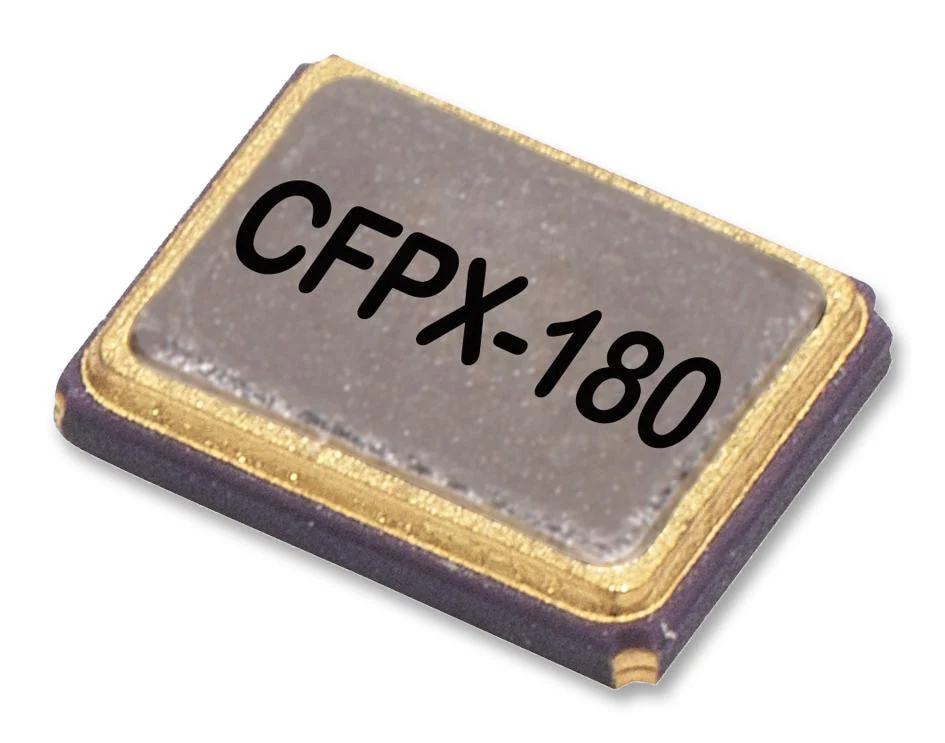

IQD FREQUENCY PRODUCTS LFXTAL053099 Crystal, 27.12 MHz, SMD, 3.2mm x 2.5mm, 10 ppm, 10 pF, 10 ppm, CFPX-180 Series

IQD FREQUENCY PRODUCTS LFXTAL053099 Crystal, 27.12 MHz, SMD, 3.2mm x 2.5mm, 10 ppm, 10 pF, 10 ppm, CFPX-180 Series

IQD FREQUENCY PRODUCTS LFXTAL053099 Crystal, 27.12 MHz, SMD, 3.2mm x 2.5mm, 10 ppm, 10 pF, 10 ppm, CFPX-180 Series

The LFXTAL053099 is a 3.2 x 2.5mm surface-mount Crystal with vibration 4hrs in 3 mutually perpendicular planes. The CFPX-180 series crystal meets MIL-STD-202F standards for shock and vibration.

Fundamental overtone order
100R Maximum equivalent series resistance
7pF Maximum shunt capacitance
100µW Maximum drive level

Applications

Clock & Timing, Aerospace, Defence, Military

Product details

Load Capacitance	10pF
Operating Temperature Min	-20°C
Operating Temperature Max	70°C
Crystal Case	SMD, 3.2mm x 2.5mm
Product Range	CFPX-180 Series
Frequency Stability + / -	10ppm
Frequency Tolerance + / -	10ppm
Frequency Nom	27.12MHz

Other details

Brand	IQD FREQUENCY PRODUCTS
Part Number	LFXTAL053099
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
