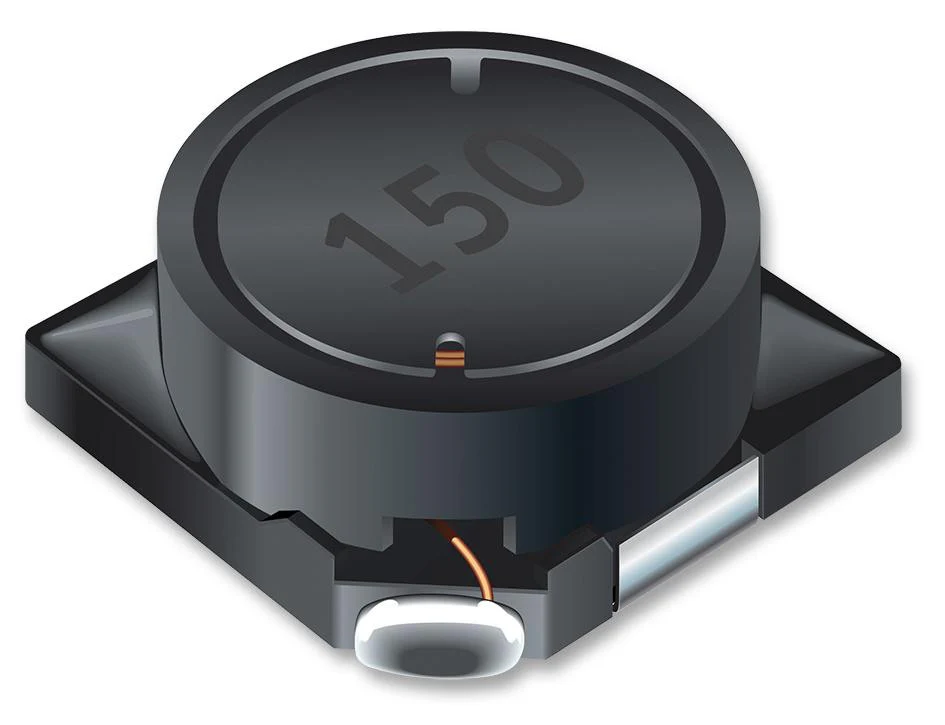

BOURNS SRR7032-101M Surface Mount Power Inductor, SRR7032 Series, 100 µH, 450 mA, 500 mA, Shielded, 0.54 ohm
BOURNS SRR7032-101M Surface Mount Power Inductor, SRR7032 Series, 100 µH, 450 mA, 500 mA, Shielded, 0.54 ohm
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 450mA |
| Saturation Current (Isat) | 500mA |
| Power Inductor Case | 7mm x 7mm x 3.2mm |
| Inductance | 100µH |
| Inductor Construction | Shielded |
| Product Range | SRR7032 Series |
| DC Resistance Max | 0.54ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR7032-101M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $0.97
-70%$0.97
$0.29BOURNS SRR7032-101M Surface Mount Power Inductor, SRR7032 Series, 100 µH, 450 mA, 500 mA, Shielded, 0.54 ohm
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 450mA |
| Saturation Current (Isat) | 500mA |
| Power Inductor Case | 7mm x 7mm x 3.2mm |
| Inductance | 100µH |
| Inductor Construction | Shielded |
| Product Range | SRR7032 Series |
| DC Resistance Max | 0.54ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR7032-101M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
