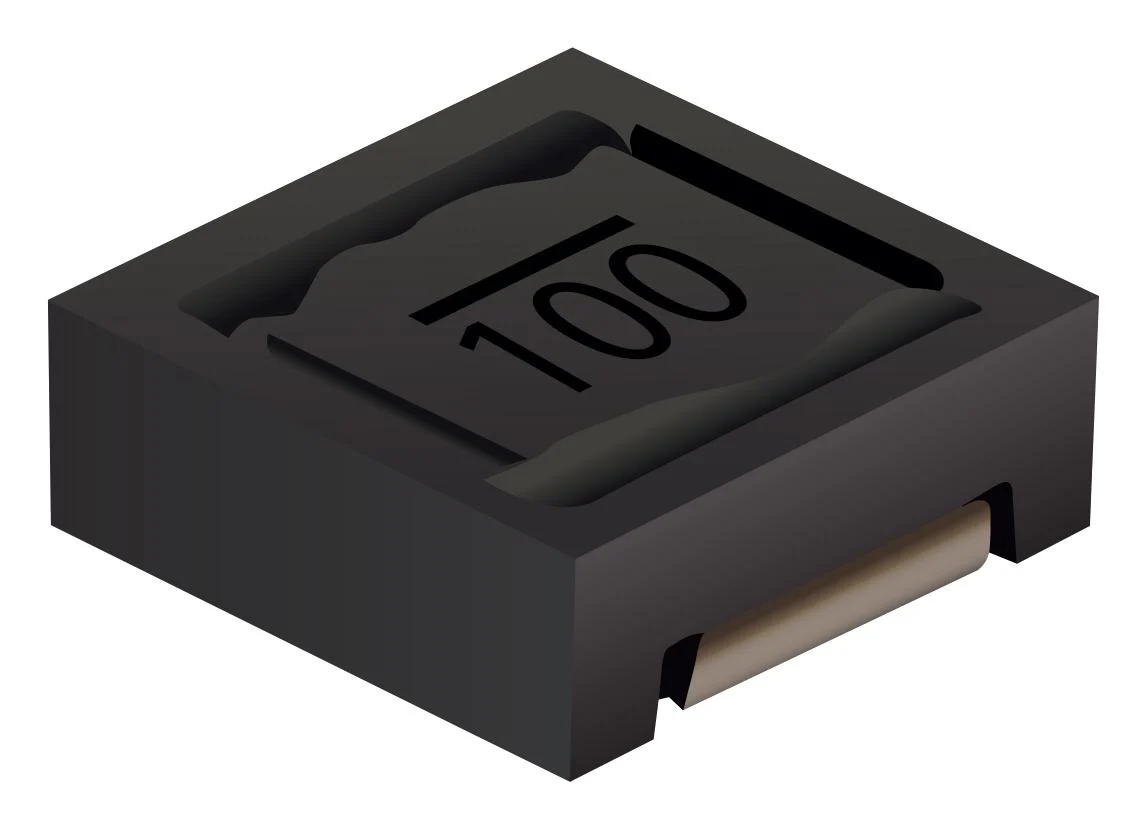

BOURNS SRR4818A-120M Power Inductor (SMD), 12 µH, 1.6 A, 950 mA, SRR4818A Series, 4.8mm x 4.8mm x 1.8mm, Shielded
BOURNS SRR4818A-120M Power Inductor (SMD), 12 µH, 1.6 A, 950 mA, SRR4818A Series, 4.8mm x 4.8mm x 1.8mm, Shielded
Product details
| Inductance | 12µH |
| RMS Current (Irms) | 1.6A |
| Saturation Current (Isat) | 950mA |
| Product Range | SRR4818A Series |
| Power Inductor Case | 4.8mm x 4.8mm x 1.8mm |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.17ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR4818A-120M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
