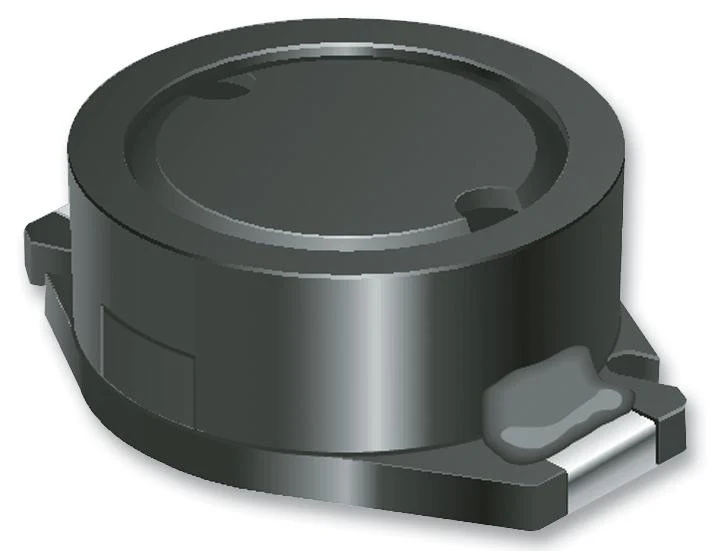

BOURNS SRR0805-101K Surface Mount Power Inductor, SRR0805 Series, 100 µH, 500 mA, 700 mA, Shielded, 0.6 ohm
BOURNS SRR0805-101K Surface Mount Power Inductor, SRR0805 Series, 100 µH, 500 mA, 700 mA, Shielded, 0.6 ohm
Product details
| Inductance Tolerance | ± 10% |
| RMS Current (Irms) | 500mA |
| Saturation Current (Isat) | 700mA |
| Power Inductor Case | 10.5mm x 8mm x 4.7mm |
| Inductance | 100µH |
| Inductor Construction | Shielded |
| Product Range | SRR0805 Series |
| DC Resistance Max | 0.6ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR0805-101K |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $1.06
-70%$1.06
$0.32BOURNS SRR0805-101K Surface Mount Power Inductor, SRR0805 Series, 100 µH, 500 mA, 700 mA, Shielded, 0.6 ohm
Product details
| Inductance Tolerance | ± 10% |
| RMS Current (Irms) | 500mA |
| Saturation Current (Isat) | 700mA |
| Power Inductor Case | 10.5mm x 8mm x 4.7mm |
| Inductance | 100µH |
| Inductor Construction | Shielded |
| Product Range | SRR0805 Series |
| DC Resistance Max | 0.6ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR0805-101K |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
