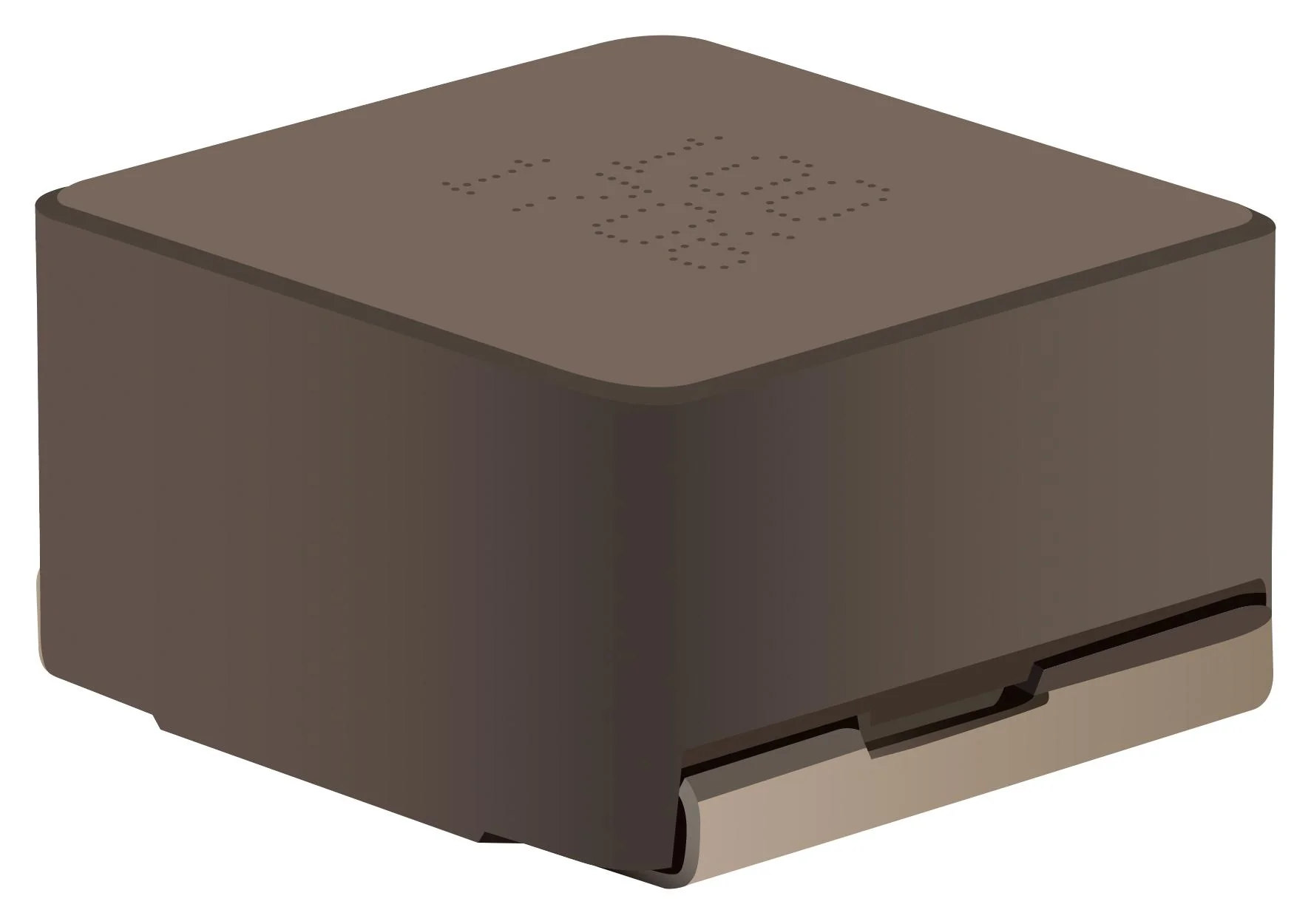

Bourns SRP2313AA-470M Power Inductor (SMD) 47 µH 14 A Shielded 10 SRP2313AA Series 23.5mm x 22mm 12.6mm
Bourns SRP2313AA-470M Power Inductor (SMD) 47 µH 14 A Shielded 10 SRP2313AA Series 23.5mm x 22mm 12.6mm
Product details
| Inductance | 47µH |
| RMS Current (Irms) | 14A |
| Inductor Construction | Shielded |
| Saturation Current (Isat) | 10A |
| Product Range | SRP2313AA Series |
| Power Inductor Case | 23.5mm x 22mm x 12.6mm |
| DC Resistance Max | 0.0208ohm |
| Inductance Tolerance | ± 20% |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | BOURNS |
| Part Number | SRP2313AA-470M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
