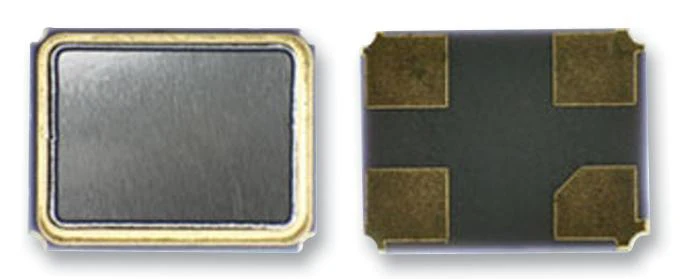

Aker C3E-12.000-12-1010-X C3E-12.000-12-1010-X Crystal 12 MHz SMD 3.4mm x 2.7mm 10 ppm pF C3E

The C3E-12.000-12-1010-X is a 2.5 x 3.2mm 10ppm low profile surface-mount microprocessor Quartz Crystal Unit with metal cap and surface-mount seam sealed ceramic base. The C3E series crystal for use with the tire pressure monitoring system, ECU, sensor, GPS, airbag, multimedia, satellite radio and remote keyless entry systems applications.

• Fundamental oscillation mode
• 100R Maximum equivalent series resistance
• 5pF Maximum shunt capacitance
• 100µW Maximum drive level
• 500MR at 100VDC Minimum insulation resistance

Applications

Clock & Timing, Sensing & Instrumentation, Signal Processing, Multimedia, RF Communications

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	AKER
Part Number	C3E-12.000-12-1010-X
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
