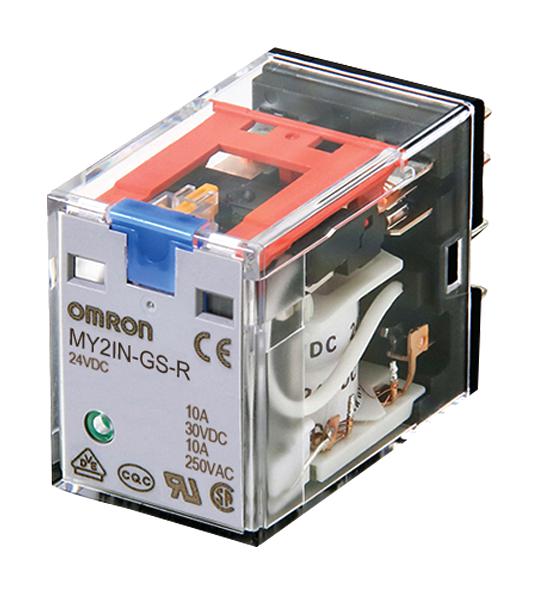

OMRON INDUSTRIAL AUTOMATION MY2IN-GS-R DC24 Power Relay, Miniature, DPDT, 24 VDC, 10 A, MY-GS-R Series, Socket, Latching
OMRON INDUSTRIAL AUTOMATION MY2IN-GS-R DC24 Power Relay, Miniature, DPDT, 24 VDC, 10 A, MY-GS-R Series, Socket, Latching
Product Overview
MY2IN-GS-R DC24 is a MY-GS-R series miniature power relay. Mechanical indicators added as a standard feature. Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).
- A line-up of model with latching levers added for easier circuit checking
- Relays with AC and DC coils have different colours of operating indicators (LEDs)
- UL, CSA, IEC (VDE certification), and CQC
- 2 poles, DPDT contact configuration, with latching lever
- LED operation indicator and built-in mechanical indicators
- Standard model
- 24VDC operating coil voltage
- 10A at 250VAC, 10A at 30VDC rated load (resistive), 2500VA/300W max switching capacity (resistive)
- Ambient operating temperature range from -40 to 70°C (with no icing or condensation)
- 36.3 (37.7)mA rated current, 662 (636) ohm coil resistance, 3.2H coil inductance (armature OFF)
Product details
Other details
| Brand | OMRON INDUSTRIAL AUTOMATION |
| Part Number | MY2IN-GS-R DC24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
