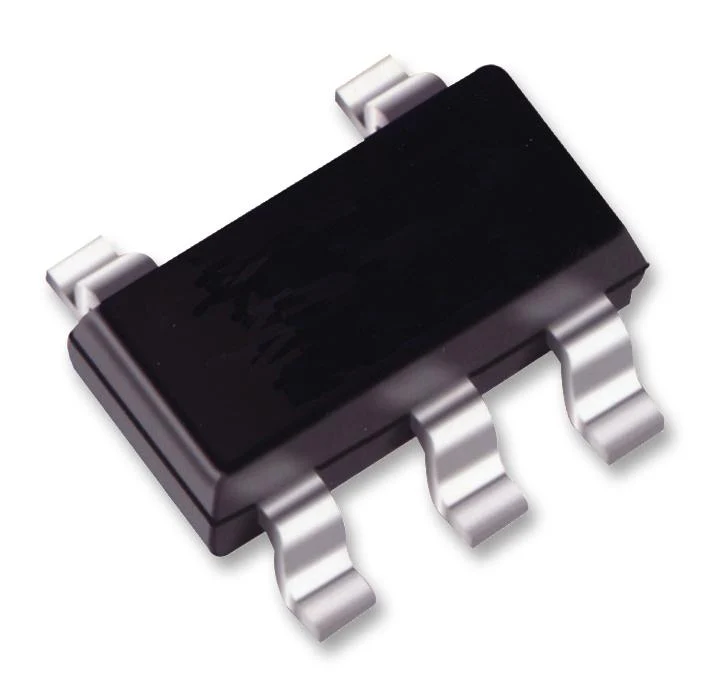

Microchip MIC5233YM5-TR MIC5233YM5-TR LDO Voltage Regulator Adjustable 2.3V to 36V Input 270 mV Drop 1.24V 20V/0.1A out SOT-23-5

The MIC5233YM5 TR is a high input voltage low IQ µCap LDO Regulator with high input voltage and ultra-low ground current. This combination of high input voltage and low ground current makes the regulator ideal for multi-cell Li-Ion battery systems. A µCap LDO design, the regulator is stable with either ceramic or tantalum output capacitors. It only requires a 2.2µF capacitor for stability. It features an enable input, thermal shutdown, current limit, reverse battery protection and reverse leakage protection.

• High output accuracy of ±2.0% over-temperature
• µCap - Stable with ceramic or tantalum capacitors
• Excellent line and load regulation specifications
• Zero off-mode current
• Reverse battery protection
• Reverse leakage protection
• Thermal shutdown and current limit protection

Applications

Consumer Electronics, Computers & Computer Peripherals, Power Management, Automotive

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MIC5233YM5-TR
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
