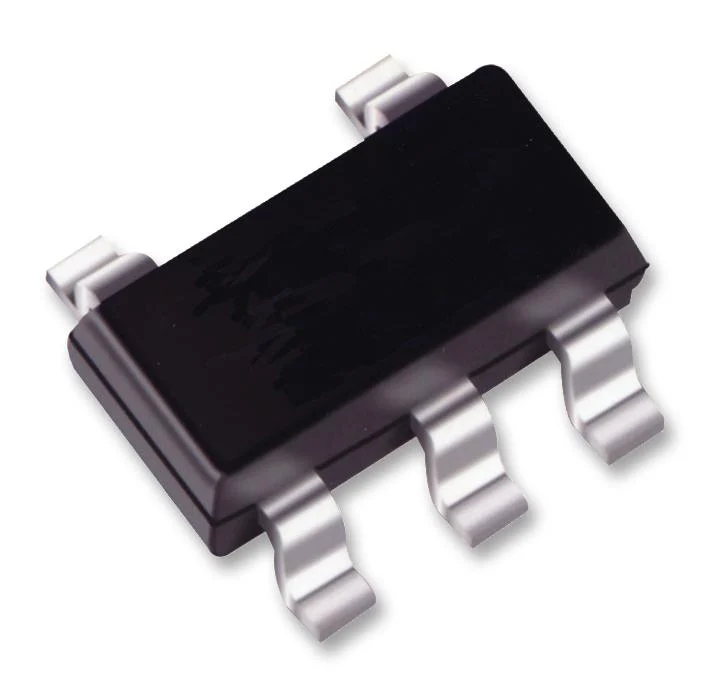

Microchip MCP1802T-5002I/OT Fixed LDO Voltage Regulator 2V to 10V 200mV Dropout 5Vout 300mAout SOT-23-5

The MCP1802T-5002I/OT is a CMOS low dropout (LDO) Voltage Regulator that can deliver up to 300mA of current while consuming only 25µA of quiescent current (typical). The input operating range is specified from 2V to 10V, making it an ideal choice for two to six primary cell battery-powered applications, 9V alkaline and one or two cell Li-ion-powered applications. The MCP1802 is capable of delivering 100mA with only 200mV (typical) of input to output voltage differential (VOUT = 3.0V). The output voltage tolerance of the MCP1802 at +25°C is typically ±0.4% with a maximum of ±2%. Line regulation is ±0.01% typical at +25°C.

• 70dB Typical at 10kHz high PSRR
• 200mV (typical) at 100mA Low drop out voltage
• 25µA Typical quiescent current
• Stable with ceramic output capacitors
• Current limit protection
• Shutdown pin

Applications

Power Management, Wireless, Communications & Networking, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP1802T-5002I/OT
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
