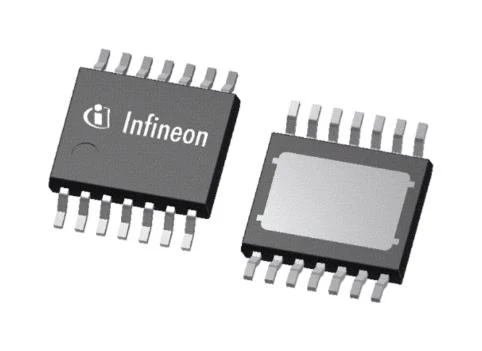

Infineon BTG70502EPLXUMA1 BTG70502EPLXUMA1 Power Load Distribution Switch High Side Active 2 Outputs 8.86 A 0.05 ohm TSSOP-EP-14 New
Infineon BTG70502EPLXUMA1 BTG70502EPLXUMA1 Power Load Distribution Switch High Side Active 2 Outputs 8.86 A 0.05 ohm TSSOP-EP-14 New
BTG70502EPLXUMA1 is a BTG7050-2EPL PROFET� load guard smart high-side power switch. It provides protection functions and enhanced diagnosis capabilities. The device offers an adjustable current limitation to offer higher reliability for protecting the system. In case of a short circuit to ground the PCB traces, connectors, as well as loads, can be protected. Furthermore, the PROFET� Load Guard has a capacitive load switching mode implemented to charge capacitors. Potential applications includes replaces electromechanical relays, fuses and discrete circuits, protection of system supply, main switch for ECU power supply, suitable for driving resistive, inductive and capacitive loads, suitable for driving heating elements, suitable for driving ADAS and AD modules, e.g. cameras, radar, ultrasonic, and LIDAR modules, suitable for driving sub modules, e.g. displays, suitable for driving communication modules, e.g. antennas, Bluetooth, V2X, Wi-Fi.
- High-side switch with diagnosis and embedded protection, part of PROFET� load guard family
- Switch ON capability while inverse current condition (InverseON), capacitive load switching mode
- Qualified for automotive applications, product validation according to AEC-Q100, grade 1
- Operating voltage is 3V to 28V, maximum current in sleep mode is 0.5µA (TJ <= 85°C)
- Typical ON-state resistance is 50mohm (TJ = 25°C), nominal load current is 3A (TA = 85°C)
- Typical current sense ratio is 2030 (at IL = IL(NOM))
- Adjustable overcurrent limitation range from 0.79A to 8.86A, overvoltage protection
- Proportional load current sense, open load in ON and OFF state, short circuit to ground and battery
- Absolute and dynamic temperature protection with restart control, adjustable overcurrent limitation
- PG-TSDSO-14 package, junction temperature range from -40 to +150°C
Other details
| Brand | INFINEON |
| Part Number | BTG70502EPLXUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
