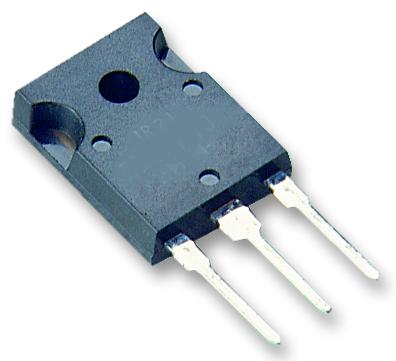

Unitedsic UF3SC120016K3S Silicon Carbide Mosfet Single N Channel 107 A 1.2 kV 0.016 ohm TO-247
Unitedsic UF3SC120016K3S Silicon Carbide Mosfet Single N Channel 107 A 1.2 kV 0.016 ohm TO-247
Product details
| MOSFET Module Configuration | Single |
| Channel Type | N Channel |
| Continuous Drain Current Id | 107A |
| Drain Source Voltage Vds | 1.2kV |
| Drain Source On State Resistance | 0.016ohm |
| Transistor Case Style | TO-247 |
| No. of Pins | 3Pins |
| Rds(on) Test Voltage | 12V |
| Gate Source Threshold Voltage Max | 4.7V |
| Power Dissipation | 517W |
| Operating Temperature Max | 175°C |
| Product Range | - |
Other details
| Brand | UNITEDSIC |
| Part Number | UF3SC120016K3S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $75.59
-70%$75.59
$22.68Unitedsic UF3SC120016K3S Silicon Carbide Mosfet Single N Channel 107 A 1.2 kV 0.016 ohm TO-247
Product details
| MOSFET Module Configuration | Single |
| Channel Type | N Channel |
| Continuous Drain Current Id | 107A |
| Drain Source Voltage Vds | 1.2kV |
| Drain Source On State Resistance | 0.016ohm |
| Transistor Case Style | TO-247 |
| No. of Pins | 3Pins |
| Rds(on) Test Voltage | 12V |
| Gate Source Threshold Voltage Max | 4.7V |
| Power Dissipation | 517W |
| Operating Temperature Max | 175°C |
| Product Range | - |
Other details
| Brand | UNITEDSIC |
| Part Number | UF3SC120016K3S |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
