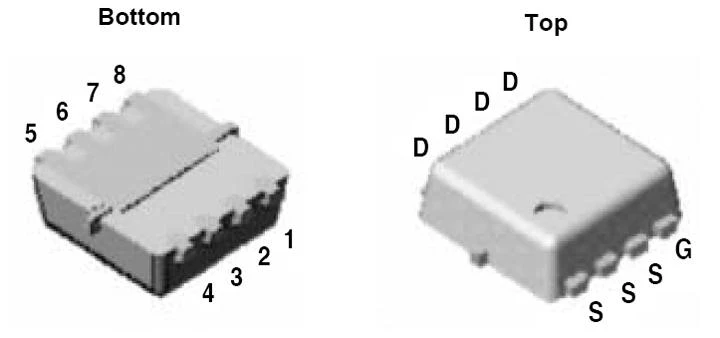

ONSEMI FDMC2523P Power MOSFET, P Channel, 150 V, 3 A, 1.5 ohm, Power 33, Surface Mount
Product Overview
The FDMC2523P is a QFET® P-channel enhancement-mode Power MOSFET produced using planar stripe DMOS technology. This advanced technology has been especially tailored to minimize ON-state resistance, provide superior switching performance and withstand high energy pulse in the avalanche and commutation mode. It is well suited for low voltage applications such as audio amplifier and high efficiency switching DC-to-DC converters.
- Fast switching
- Improved dV/dt capability
- 6.2nC typical low gate charge
- 10pF typical low Crss
Product details
Other details
| Brand | ONSEMI |
| Part Number | FDMC2523P |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
