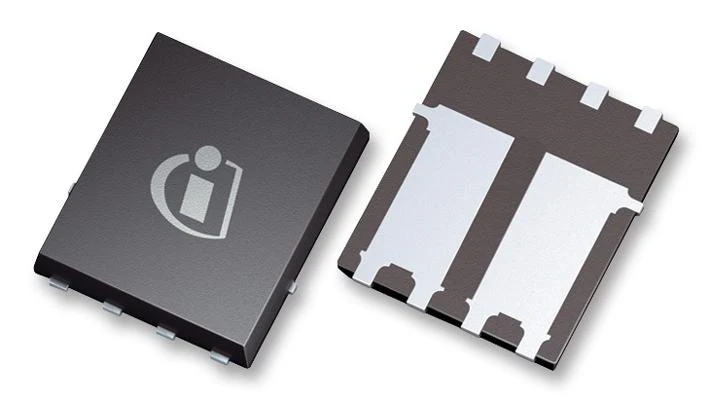

INFINEON BSC084P03NS3GATMA1 Power MOSFET, P Channel, 30 V, 78.6 A, 0.0061 ohm, TDSON, Surface Mount BSC084P03NS3 G, SP000473020
INFINEON BSC084P03NS3GATMA1 Power MOSFET, P Channel, 30 V, 78.6 A, 0.0061 ohm, TDSON, Surface Mount BSC084P03NS3 G, SP000473020
- Optima's � P3 power transistor
- Single P channel, enhancement mode
- Qualified according to JEDEC for target applications
- 100% avalanche tested
- Specially suitable for notebook applications (Vgs = 25V)
- Applications include battery management and load switching
- Normal level, logic level or super logic level
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: P Channel |
| Drain Source Voltage Vds: 30V |
| Continuous Drain Current Id: 78.6A |
| Drain Source On State Resistance: 0.0061ohm |
| Transistor Case Style: TDSON |
| Transistor Mounting: Surface Mount |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 2.5V |
| Power Dissipation: 69W |
| No. of Pins: 8Pins |
| Operating Temperature Max: 150°C |
| Product Range: OptiMOS P3 |
| Qualification: AEC-Q101 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | INFINEON |
| Part Number | BSC084P03NS3GATMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
