Yorkville Sound NX10C-2 Two-Way 10/1" Coaxial 1200W Powered PA Speaker
Yorkville Sound NX10C-2 Overview

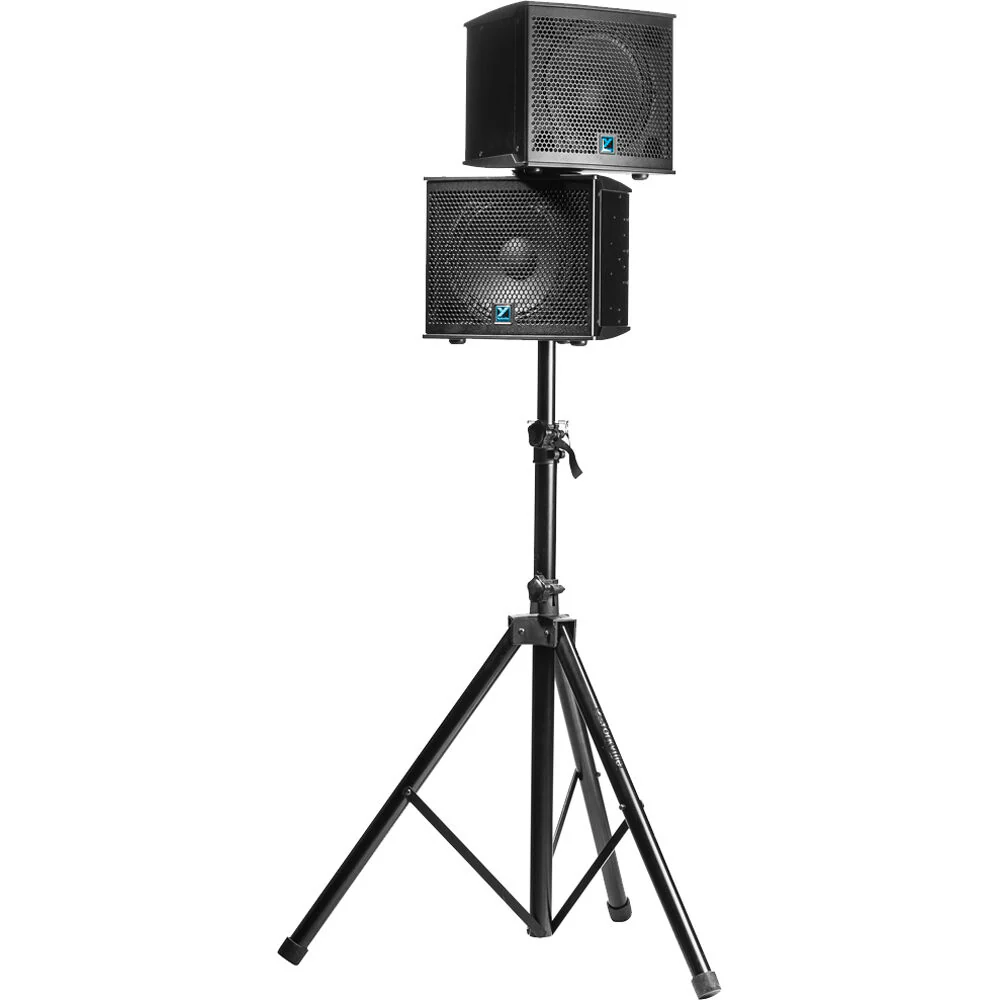

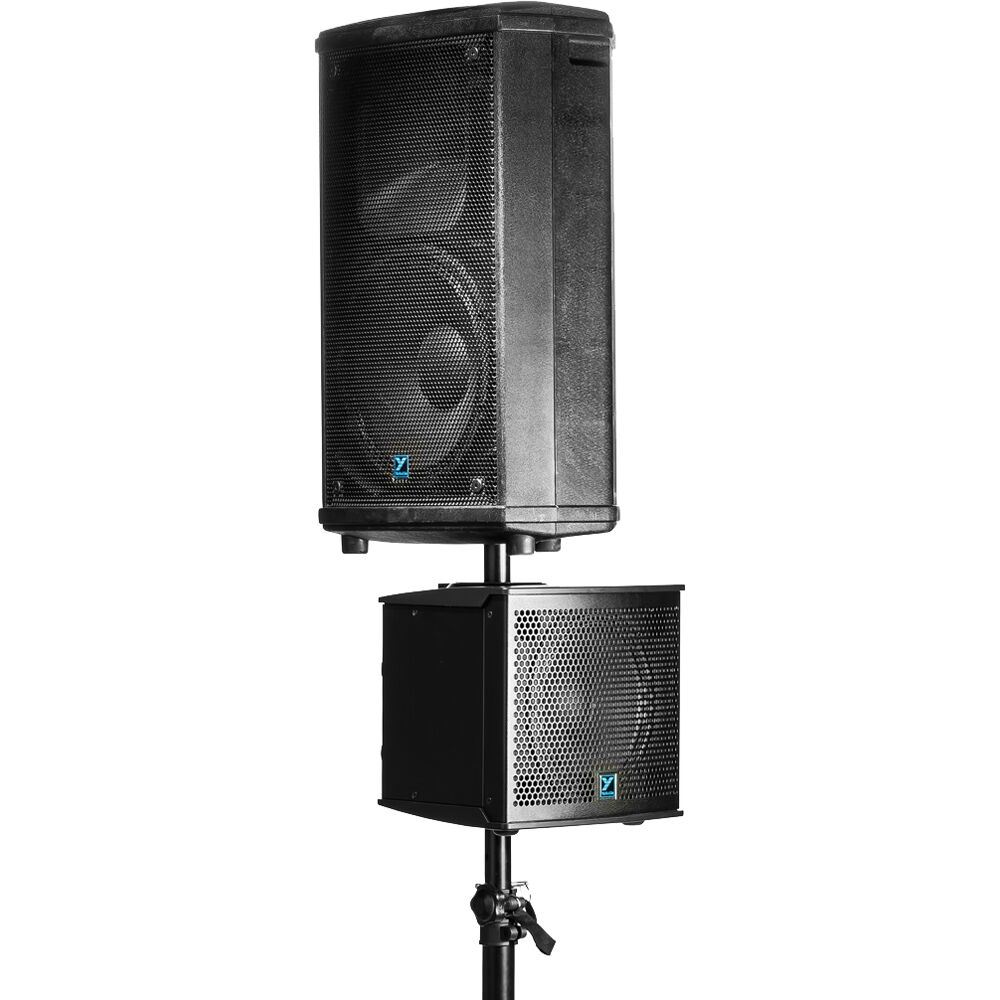

Audio engineers, touring musicians, and rental companies in need of a compact, active speaker will be impressed with the Yorkville NX10C-2, a truly unique and innovative powered speaker with a "through hole" design that allows multiple speakers to be mounted on a single speaker stand. The NX10C-2 sports a bi-amplifier with 1200W of peak power output, which drives the 10/1" coaxial driver to provide a full-range output with plenty of volume.

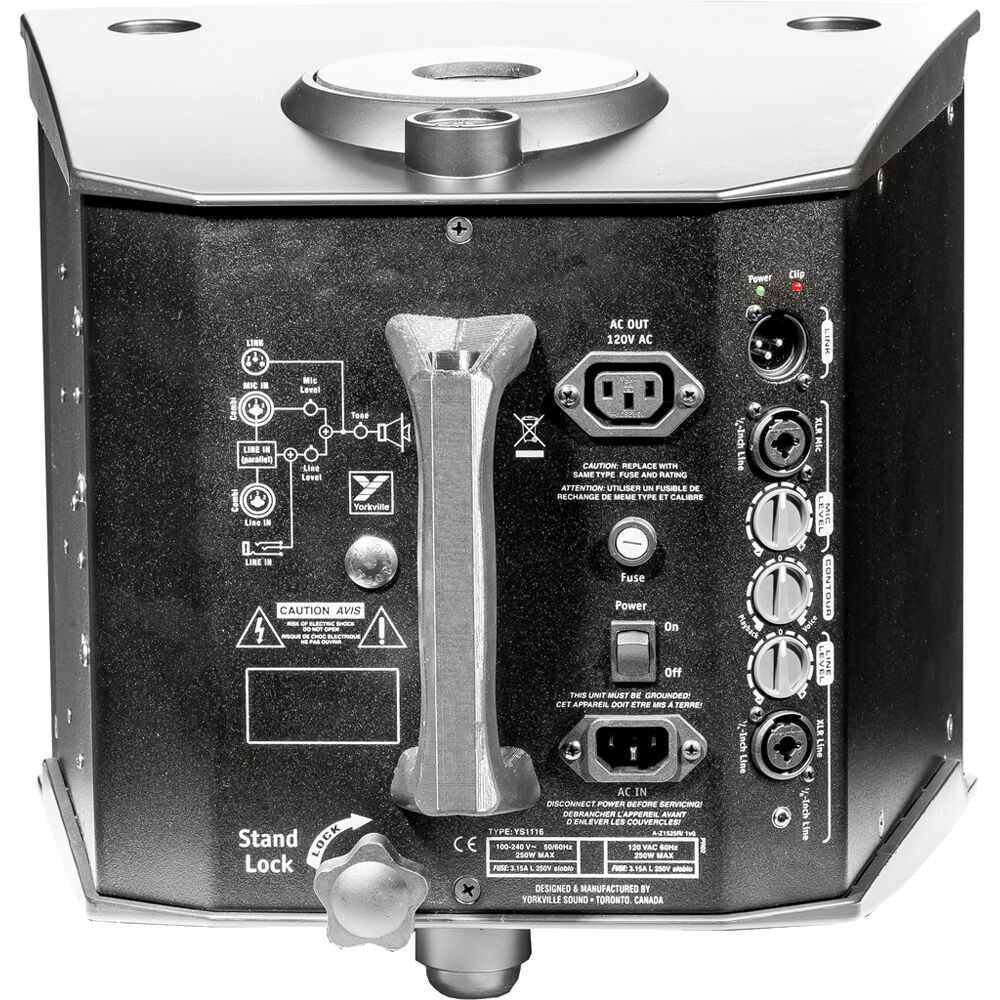

The rear panel features two combo XLR-1/4" inputs for mic and line, respectively. A 3.5mm TRS line input is available for connecting portable playback devices, while an XLR output is available for daisy-chaining audio to additional speakers. An EQ knob boosts the bass and treble when turned clockwise, while turning counterclockwise will boost high-frequency content only. The handle on the rear of the unit doubles as a tilt bar, allowing the speaker to be used as a wide-coverage floor monitor or center fill cabinet.
- Ultra-durable aluminum, wood, and ABS plastic construction
- Multipurpose full-range and wedge monitor format enclosure
- Ultra-clear reproduction throughout bandwidth
- Lightweight, high-efficiency, high-tech, 1200W (peak) bi-amped power module
- Balanced Combo XLR-1/4" input
- XLR output for easy connection for linking and looping
- Direct microphone input with level control
- Innovative single overall EQ control
- 10" ceramic magnet coaxial driver
- High-quality 1" high-frequency driver built into woofer

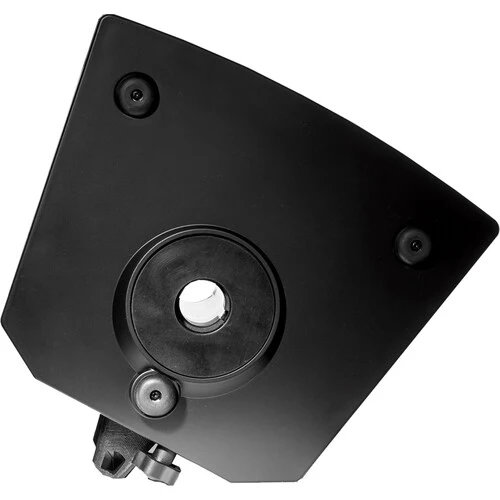

- Innovative through the cabinet pole mounting for multiple uses
- Tough metal grille
- Flush-mounted controls
In the Box
- Yorkville Sound NX10C-2 Two-Way 10/1" Coaxial 1200W Powered PA Speaker
- Power Cord
- Limited 2-Year Manufacturer Warranty (Speaker Components)
- Limited 10-Year Manufacturer Warranty (Enclosure)
Yorkville Sound NX10C-2 Specs
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 1200 W Peak 500 W Program |
| Amplifier Class | LF: Class-H HF: Class-AB |
| HF Driver | 1 x 1" / 25.4 mm Horn-Loaded Compression Driver |
| HF Voice Coil | 1.4" / 35.6 mm |
| MF Driver | None |
| LF Driver | 1 x 10" / 25.4 cm Woofer |
| LF Voice Coil | 2.5" / 63.5 mm |
| Magnet | Ceramic |
| Frequency Response | 80 Hz to 20 kHz ±3 dB |
| Maximum SPL | 124 dB (Continuous) 127 dB (Peak) |
| Coverage Angle | 60° H x 60° V |
| Input Sensitivity | +4 dBu |
| Protections | Excursion, RMS |
| Audio I/O | 1 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic Input 1 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line/Link Thru |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
| Crossover | 2.5 kHz (Internal) |
| EQ | Yes |
| Parametric EQ | Yes |
| Semi-Parametric EQ | Yes |
| Filters | 1 x High-Pass: 100 Hz |
| Dynamic Processing | Multiband Limiter |
| Alignment Delay | None |
| Phase Adjustment | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power I/O | 1 x IEC Input 1 x IEC Output |
| Power Consumption | 250 W |
| Mounting | 1 x Pole Socket (Bottom, Top) |
| Handles | 1 x Rear |
| Construction Material | ABS, Metal Grille, Plywood |
| Dimensions | 13.5 x 13 x 12" / 34.3 x 33 x 30.5 cm |
| Weight | 25 lb / 11.3 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
