Nady DW-11 HT Digital Wireless Microphone System (Handheld Mic)
- Streamlined Operation
- 24-Bit Digital Conversion
- UHF 900 MHz Band
- Front-Panel LED Display for Monitoring
- Operation up to 300' (Line-of-Sight)

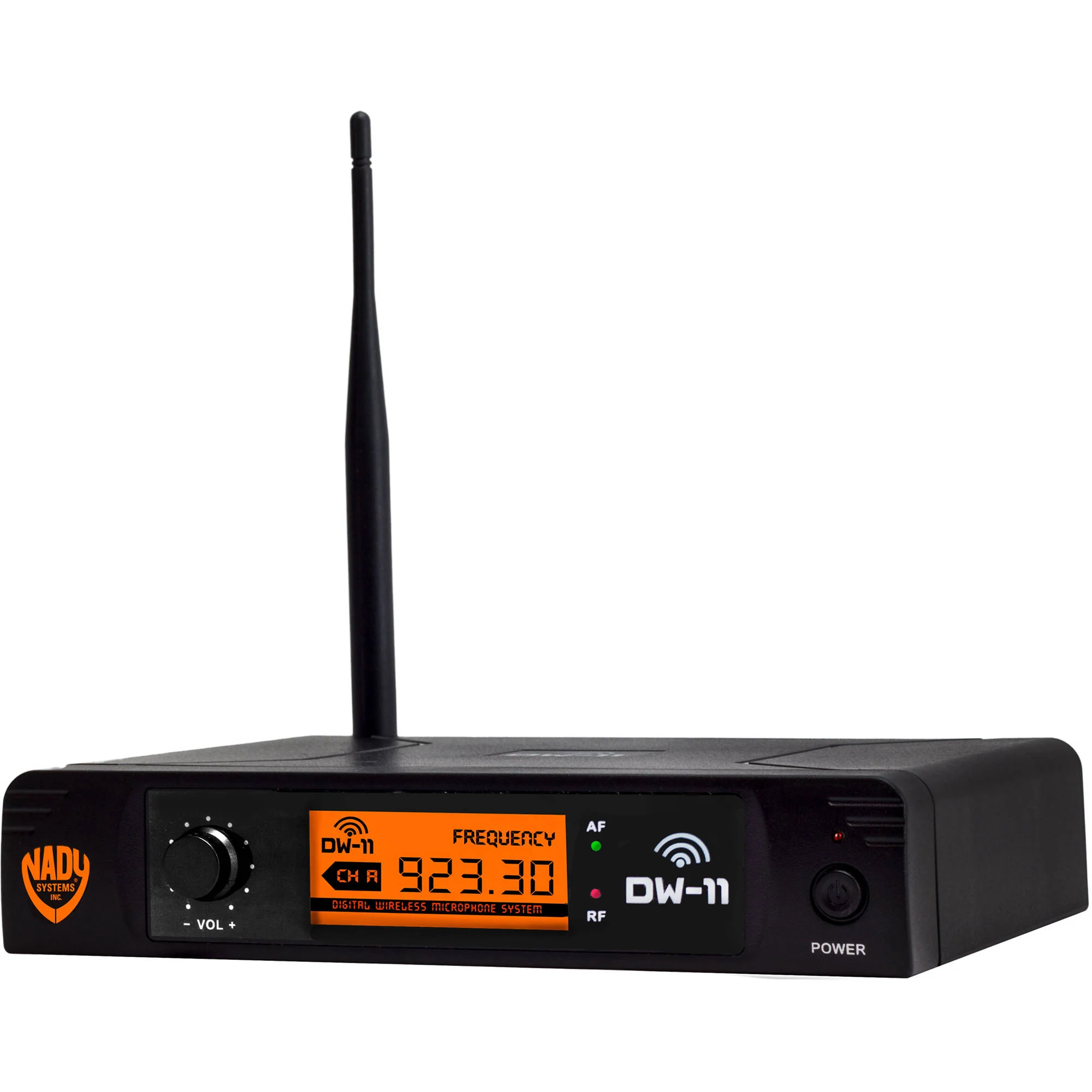

The handheld mic-equipped DW-11 HT Digital Wireless Microphone System from Nady Systems is a streamlined wireless system with 24-bit conversion that will be suitable for performances, karaoke, and other public address applications. It provides a 48 kHz/24-bit digital conversion for audio clarity with frequency response across the entire audible range (20 Hz to 20 kHz).
The included handheld mic provides a line-of-sight operation range of up to 300â¿¿ and operates in the UHF 900 MHz band. The front-panel LED display allows you to monitor audio level from the transmitter and signal strength to the receiver. Perfect for stage performance, karaoke, and public address (presentations, classrooms, and conferences) operatio
Nady DW-11 Specs
| System | |
|---|---|
| Wireless Transmission | Digital UHF (900 MHz) |
| Number of RF Channels | 1 |
| Included Transmitters | 1 x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | 902 to 951 MHz |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | <3 ms (Maximum) |
| Dynamic Range | 120 dB (Typical) |
| Encryption | None |
| Receiver | |
|---|---|
| Form Factor | Rackmount |
| Mounting Options | Rackmount (with Optional Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 1 x 1/4 Wave External, Fixed (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/4" TS Female Unbalanced Output 1 x XLR 3-Pin Male Balanced Output |
| Phantom Power Protection | Not Specified by Manufacturer |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Approximate RF Sensitivity | -94 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 13.5 VDC at 400 mA (Included) |
| Display & Indicators | 1 x Back-Lit LED (AF Level, Level, Metering, Output Level, Power, RF Level) |
| Dimensions | 6.0 x 8.0 x 1.7" / 152.4 x 203.2 x 43.2 mm |
| Weight | 0.7 lb / 340.0 g |
| Transmitter | |
|---|---|
| RF Output Power | < 50 mW (50 mW Peak) |
| Audio I/O | None |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | IR |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 11 Hours (Alkaline) |
| USB Port | Yes |
| Display & Indicators | 1 x Back-Lit LED (Battery Status, Mute, Power) |
| Microphone | |
|---|---|
| Form Factor | Handheld Capsule |
| Packaging Info | |
|---|---|
| Package Weight | 2.055 lb |
| Box Dimensions (LxWxH) | 16.4 x 13.9 x 2.8" |
