XP Power JCA0605D03 Isolated Board Mount DC/DC Converter 2:1 Input ITE 2 Output 6 W 15 V 200 mA

• Wide 2:1 input range
• Fully regulated outputs
• 24 Pin metal case
• 1.5kVDC isolation
• Undervoltage lockout
• Indefinite short circuit protection
• Input Pi filter
• UL & TUV approval
• Compact 1.0" x 0.8" Metal Package

Applications

Power Management, DC/DC Converters

Product details

Power Supply Approvals	ITE
No. of Outputs	2 Output
Output Power Max	6W
Output Voltage - Output 1	15V
Output Current - Output 1	200mA
Output Voltage - Output 2	15V
Output Current - Output 2	200mA
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	JCA Series
Input Voltage DC Min	4.5V
Input Voltage DC Max	9V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	DIP
DC / DC Converter Mounting	Through Hole

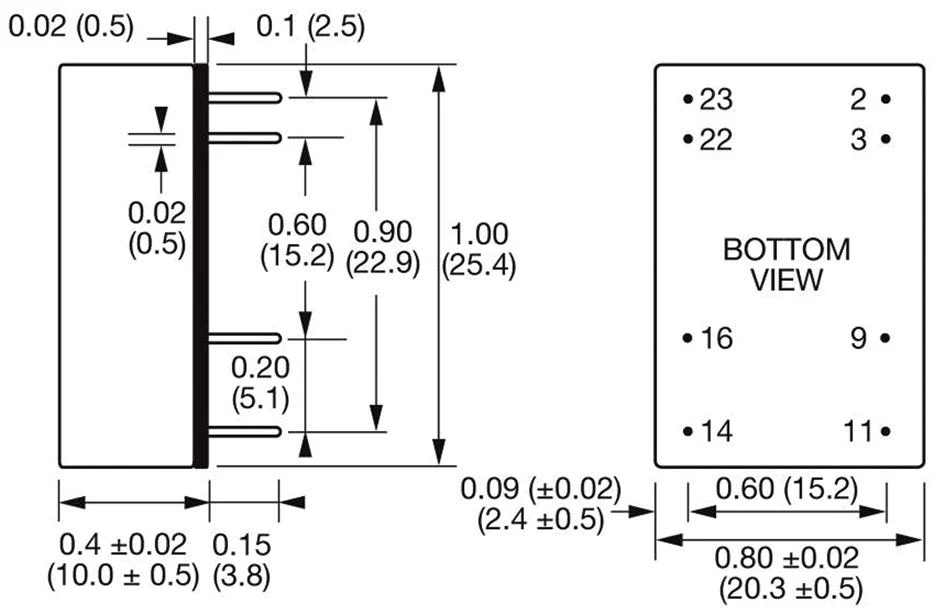

Width	20.3mm
Height	10mm
Depth	25.4mm

Other details

Brand	XP POWER
Part Number	JCA0605D03
Quantity	Each
Technical Data Sheet EN
