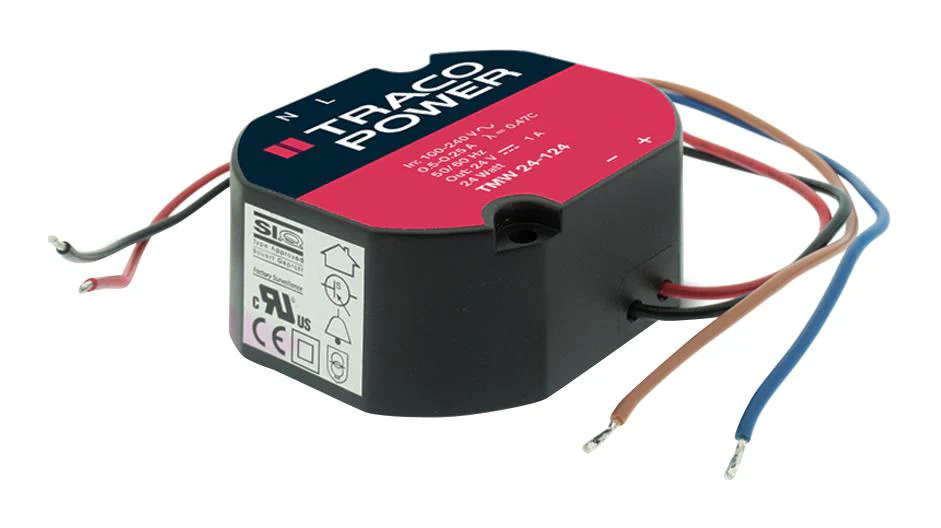

Traco Power TMW 24-124 TMW 24-124 AC/DC Enclosed Supply (PSU) ITE Household & Medical 1 Outputs 24 W V A

TMW 24 is a series of fully encapsulated AC/DC power supplies designed for medical, household and industrial applications. It comes in compact, dust resistant and waterproof IP68 housings, are IEC/EN 62368-1, IEC/EN 60335-1 and IEC/EN 60601-1 3rd edition compliant and are certified for 2xMOPP. Featuring a reinforced isolation, the TMW 24 power supplies are prepared for protection class II applications.

• Fully encapsulated, dust resistant and waterproof (IP68 certified)
• Operating temperature range -20° to +80°C
• Mountable in wall outlet boxes with flying leads
• Screw mountable on wood and inside furniture
• Leakage current < 100µA for body-floating (BF) applications
• I/O isolation 4000VAC (reinforced)
• Short-circuit protection (SCP), overvoltage protection (OVP) and overtemperature protection (OTP)
• 5-year product warranty

Other details

Brand	TRACO POWER
Part Number	TMW 24-124
Quantity	Each
Technical Data Sheet EN
