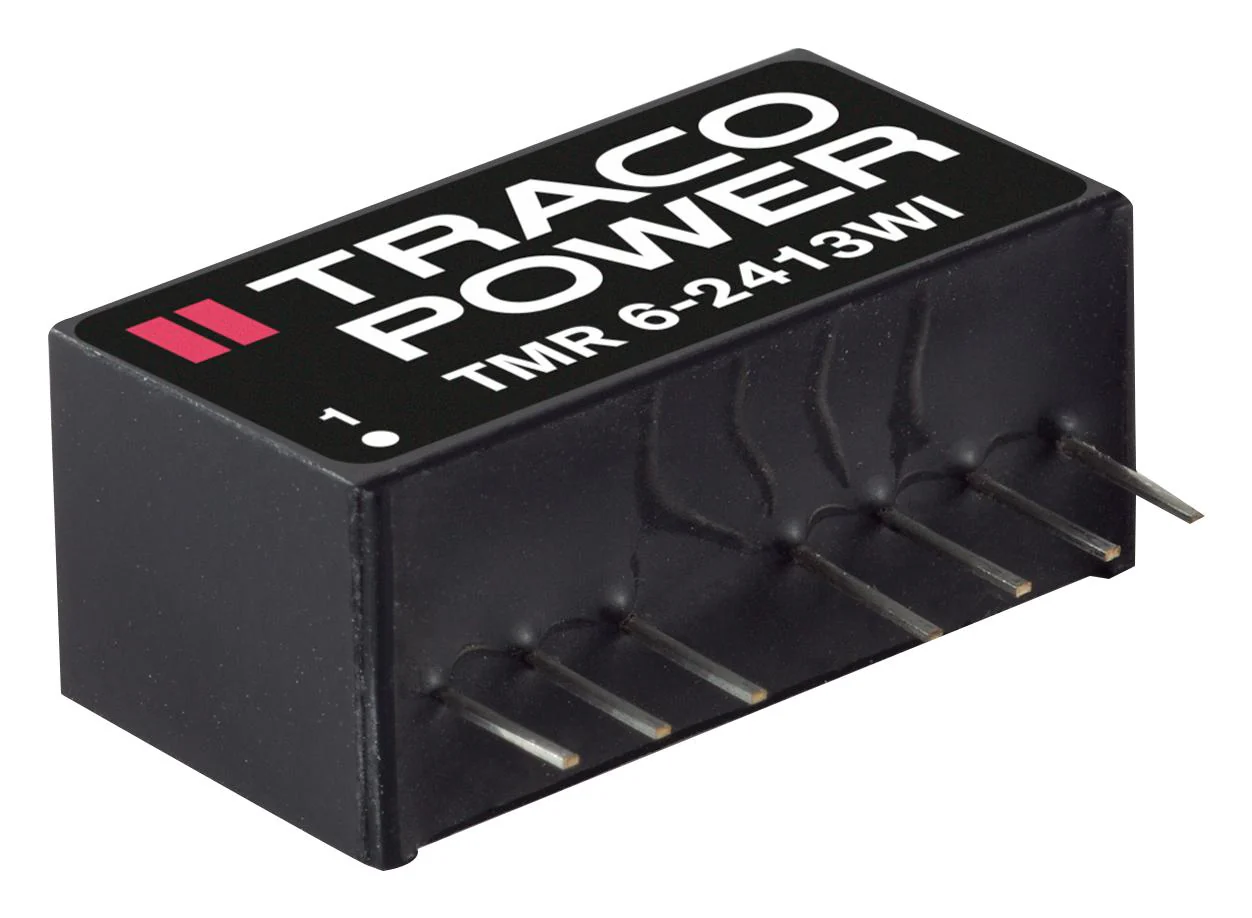

TRACO POWER TMR 6-2413WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 6 W, 1 Output, 15 V, 400 mA
TRACO POWER TMR 6-2413WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 6 W, 1 Output, 15 V, 400 mA
The TMR 6-2413WI is an isolated 6W DC-DC Converter Module with regulated output, featuring wide 4:1 input voltage ranges. It offers 9 to 36VDC input voltage range and 15VDC output voltage. An excellent efficiency allows -40 to 71°C operation temperatures. Further features include remote ON/OFF control and continuous short circuit protection. The very compact dimensions of this converter make it an ideal solution for many space critical applications.
- Full SMD design
- Indefinite short-circuit protection
- 1500VDC I/O isolation
- 88% Typical efficiency
- 24VDC Nominal input voltage
Applications
Communications & Networking, Sensing & Instrumentation, Consumer Electronics
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 6W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 15V |
| Output Current - Output 1: 400mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.6kV |
| DC / DC Converter Type: SIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |

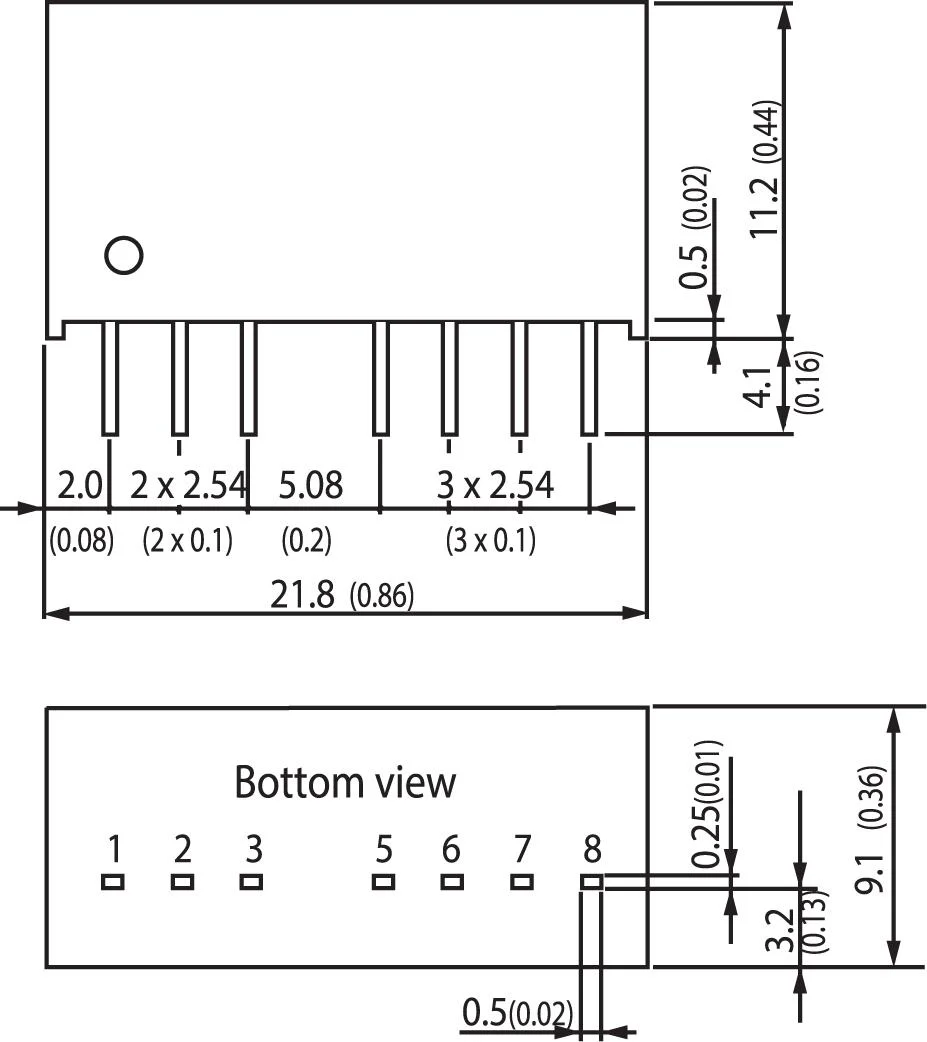

| Width: 9.1mm |
| Height: 11.2mm |
| Depth: 21.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 36V |
| Product Range: TMR 6WI Series |
Other details
| Brand | TRACO POWER |
| Part Number | TMR 6-2413WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$9.77
Original: $32.58
-70%TRACO POWER TMR 6-2413WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 6 W, 1 Output, 15 V, 400 mA—
$32.58
$9.77More Images
TRACO POWER TMR 6-2413WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 6 W, 1 Output, 15 V, 400 mA
The TMR 6-2413WI is an isolated 6W DC-DC Converter Module with regulated output, featuring wide 4:1 input voltage ranges. It offers 9 to 36VDC input voltage range and 15VDC output voltage. An excellent efficiency allows -40 to 71°C operation temperatures. Further features include remote ON/OFF control and continuous short circuit protection. The very compact dimensions of this converter make it an ideal solution for many space critical applications.
- Full SMD design
- Indefinite short-circuit protection
- 1500VDC I/O isolation
- 88% Typical efficiency
- 24VDC Nominal input voltage
Applications
Communications & Networking, Sensing & Instrumentation, Consumer Electronics
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 6W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 15V |
| Output Current - Output 1: 400mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.6kV |
| DC / DC Converter Type: SIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |
| Width: 9.1mm |
| Height: 11.2mm |
| Depth: 21.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 36V |
| Product Range: TMR 6WI Series |
Other details
| Brand | TRACO POWER |
| Part Number | TMR 6-2413WI |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
