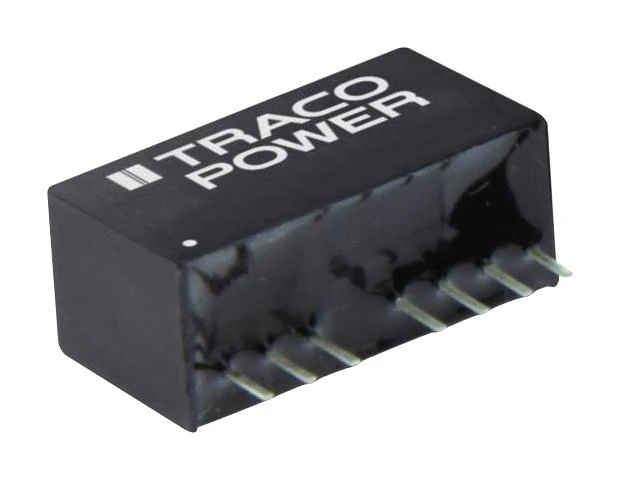

Traco Power TMR 3-2423E TMR 3-2423E Isolated Through Hole DC/DC Converter ITE 2:1 3 W 2 Output 15 V 100 mA
Traco Power TMR 3-2423E TMR 3-2423E Isolated Through Hole DC/DC Converter ITE 2:1 3 W 2 Output 15 V 100 mA
TMR 3E series is a family of isolated 3W DC/DC converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a compact SIP-8 plastic package with small footprint occupying only 2.0 cm² (0.3 square inch) of board space. An excellent efficiency allows -40°C to +85°C operation temperature. Further features include remote on/off control and continuous short circuit protection. The compact dimensions and cost optimized design make this converters an ideal solution for applications in communication equipment, instrumentation and industrial electronics.
- Cost optimized design
- I/O isolation voltage of 1500VDC
- 3-year product warranty
- Non-conductive plastic (UL94 V-0 rated) housing
- Epoxy (UL 94 V-0 rated) potting material, nickel-iron (Alloy 42) pin material
- Switching frequency of 300KHz typical (PFM)
- Natural convection (20LFM)
- EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
- Connection type is THD (through-hole device)
- Foldback mode overload protection and continuous automatic recovery short circuit protection
Other details
| Brand | TRACO POWER |
| Part Number | TMR 3-2423E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$7.29
Original: $24.29
-70%Traco Power TMR 3-2423E TMR 3-2423E Isolated Through Hole DC/DC Converter ITE 2:1 3 W 2 Output 15 V 100 mA—
$24.29
$7.29Traco Power TMR 3-2423E TMR 3-2423E Isolated Through Hole DC/DC Converter ITE 2:1 3 W 2 Output 15 V 100 mA
TMR 3E series is a family of isolated 3W DC/DC converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a compact SIP-8 plastic package with small footprint occupying only 2.0 cm² (0.3 square inch) of board space. An excellent efficiency allows -40°C to +85°C operation temperature. Further features include remote on/off control and continuous short circuit protection. The compact dimensions and cost optimized design make this converters an ideal solution for applications in communication equipment, instrumentation and industrial electronics.
- Cost optimized design
- I/O isolation voltage of 1500VDC
- 3-year product warranty
- Non-conductive plastic (UL94 V-0 rated) housing
- Epoxy (UL 94 V-0 rated) potting material, nickel-iron (Alloy 42) pin material
- Switching frequency of 300KHz typical (PFM)
- Natural convection (20LFM)
- EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
- Connection type is THD (through-hole device)
- Foldback mode overload protection and continuous automatic recovery short circuit protection
Other details
| Brand | TRACO POWER |
| Part Number | TMR 3-2423E |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
