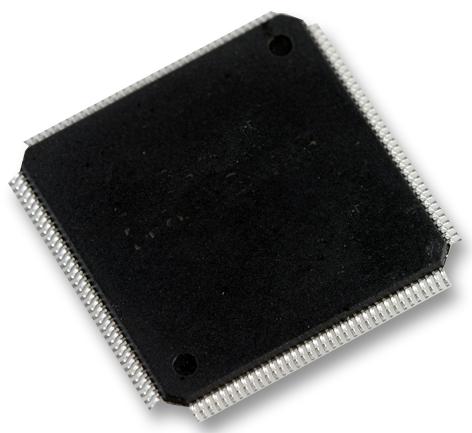

TOSHIBA TMPM3HQF10BFG(DBB) ARM MCU, TXZ+ Family TMPM3H Series Microcontrollers, ARM Cortex-M3, 32 bit, 120 MHz, 1 MB
TOSHIBA TMPM3HQF10BFG(DBB) ARM MCU, TXZ+ Family TMPM3H Series Microcontrollers, ARM Cortex-M3, 32 bit, 120 MHz, 1 MB
TMPM3HQF10BFG(DBB) is a TMPM3H group(2) CMOS digital integrated circuit silicon monolithic microcontroller. It is widely used for consumer products and industrial products including home appliances, OA equipment, household equipment, AV devices, and motor control devices.
- 32bit data bus, 1MB program memory size, 134I/O's, I²C, SPI, UART interfaces
- 128Kb RAM memory size, 21 ADC channels, 12bit ADC resolution
- Surface mount IC mounting, memory protection unit (MPU)
- Data flash is rewritable in parallel with instruction execution
- Oscillation frequency detector (OFD): abnormal system clock detection
- Voltage detection circuit (LVD): 8 level, generate interrupts and reset outputs
- JTAG/SW TRACE (4bit) debug interface
- LCD display controller (DLCD), non-bias drive: 40 segments � 4 commons (max)
- Serial peripheral interface (TSPI): 1 to 5 channels
- Operating temperature range from -40°C to +105°C, package style is LQFP144
Product details
| Product Range: TXZ+ Family TMPM3H Series Microcontrollers |
| Device Core: ARM Cortex-M3 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 120MHz |
| Program Memory Size: 1MB |
| No. of Pins: 144Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 134I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 128KB |
| ADC Channels: 21Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 2.7V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: TXZ+ |
| MCU Series: TMPM3H |
| Qualification: - |
Other details
| Brand | TOSHIBA |
| Part Number | TMPM3HQF10BFG(DBB) |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
