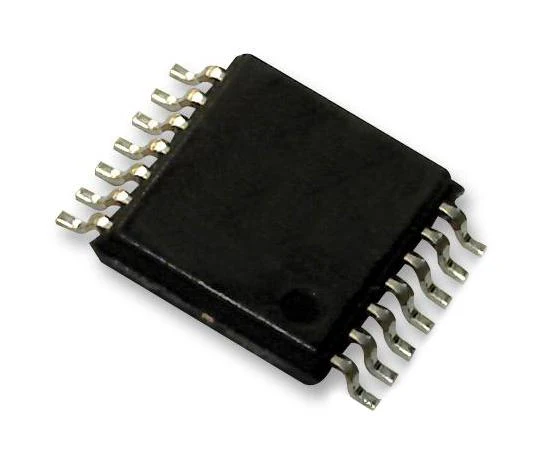

Texas Instruments TXB0104PWR TXB0104PWR Voltage Level Translator Bidirectional 4 Input 0.02 mA ns 100 Mbps 1.2 V to 3.6 TSSOP-14
Texas Instruments TXB0104PWR TXB0104PWR Voltage Level Translator Bidirectional 4 Input 0.02 mA ns 100 Mbps 1.2 V to 3.6 TSSOP-14
The TXB0104PWR is a 4-bit non-inverting translator IC uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5, 3.3V and 5V voltage nodes. VCCA should not exceed VCCB. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver. It is designed so that the OE input circuit is supplied by VCCA.
- 1.2 to 3.6V on A Port and 1.65 to 5.5V on B Port (VCCA<=VCCB)
- VCC Isolation Feature - If Either VCC Input Is at GND, All Outputs are in High-Impedance State
- OE Input Circuit Referenced to VCCA
- Low-power Consumption, 5µA Maximum ICC
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-up Performance Exceeds 100mA Per JESD 78, Class II
- Green Product, No Sb/Br
Audio, Consumer Electronics, Computers & Computer Peripherals
Warnings Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TXB0104PWR |
| Quantity | Each (Supplied on Cut Tape) |
