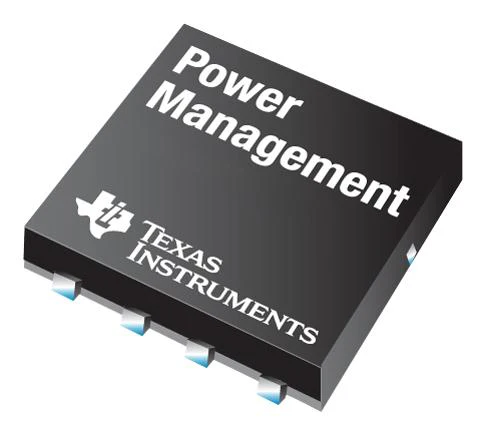

Texas Instruments CSD18504Q5A Mosfet Transistor N Channel 50 A 40 V 0.0053 ohm 10 1.9

The CSD18504Q5A is a NexFET� N-channel Power MOSFET designed to minimize losses in power conversion applications. It is suitable for use in DC-to-DC conversion, secondary side synchronous rectifier and battery motor control applications.

• Ultra-low Qg and Qgd
• Low thermal resistance
• Avalanche rated
• Halogen-free
• Plastic package
• Logic level
• -55 to 150°C Operating junction temperature range

Applications

Power Management, Motor Drive & Control, Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	CSD18504Q5A
Quantity	Each (Supplied on Cut Tape)
