Synology 60TB DX517 5-Bay Expansion Enclosure Kit with Seagate NAS Drives (5 x 12TB)
- 60TB Storage Capacity
- 5 x 12TB 7200 rpm SATA III 3.5" HDDs
- For the Synology DiskStation DS1817+
- For the Synology DiskStation DS1517+
- 5 x 3.5"/2.5" SATA Drive Bays
- 1 x eSATA Port
- Hot-Swappable & Screwless Design
This B&H Kit combines the Synology DX517 5-Bay Expansion Enclosure with five Seagate 12TB IronWolf 7200 rpm SATA III 3.5" NAS hard drives for a total storage capacity of 60TB.

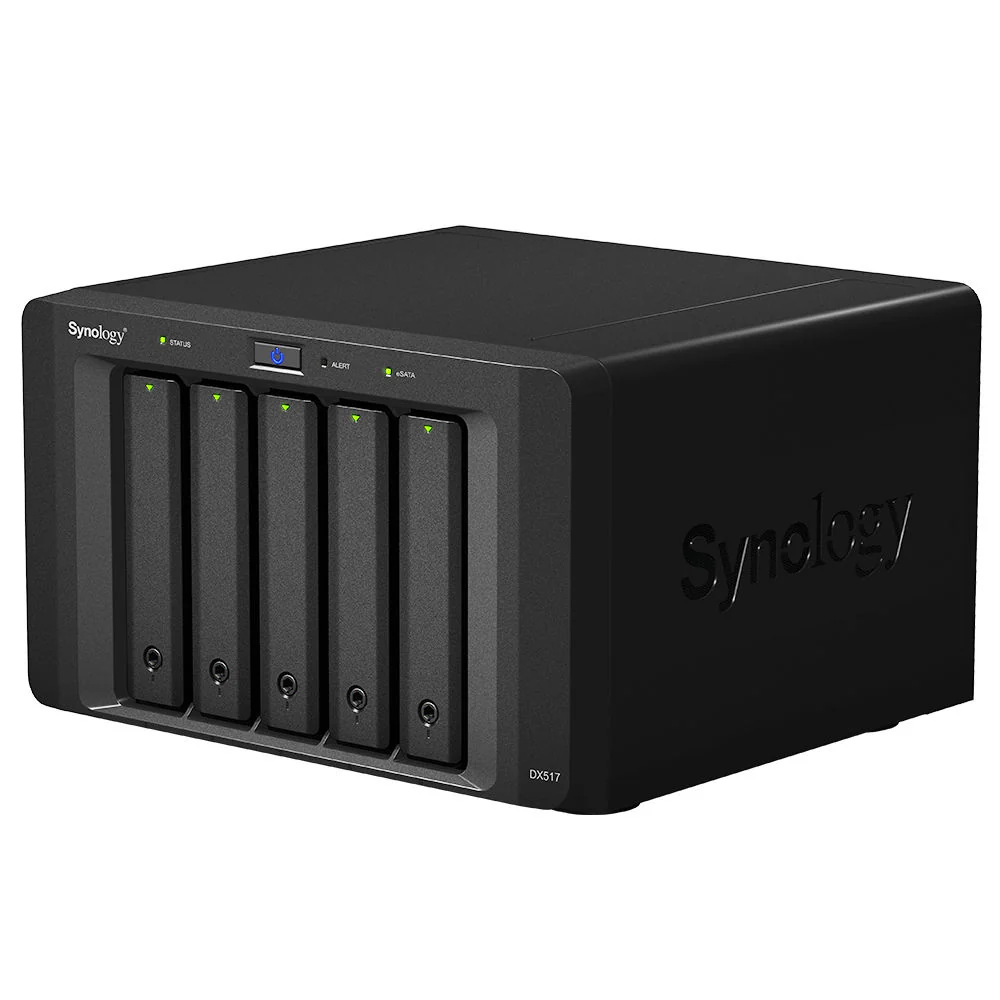

- Synology DX517 5-Bay Expansion Enclosure
Built to support on-the-fly volume expansion and local backups, the DX517 5-Bay Expansion Enclosure from Synology adds an additional five 3.5"/2.5" SATA drive bays to their DiskStation DS1517+ 5-Bay NAS Enclosure or DiskStation DS1817+ 8-Bay NAS Enclosure. Its drive bays are hot-swappable and screwless, and included is an AC power cord, an accessory pack, and an eSATA expansion cable. Protection is provided by a limited 3-year warranty.
General Features
- 5-Bay 3.5"/2.5" SATA Expansion
- Add five additional drive bays to your Synology DiskStation DS1817+ and DS1517+. Supporting 2.5" SATA hard drives and SSDs, as well as 3.5" SATA hard drives, the DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
- Online Volume Expansion
- Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion helps ensure that storage and services on the host are not interrupted during volume expansion.
- Hot-Swappable Drive Tray Design
- The hot-swappable drive trays of DX517 allow drive installation and replacement without powering down the system. A screwless drive tray design also helps reduce the time needed for system setup.
- Dedicated Local Backup Solution
- Synology's DX517 can be used as a dedicated local backup solution for the Synology DiskStation DS1817+ or DS1517+. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.

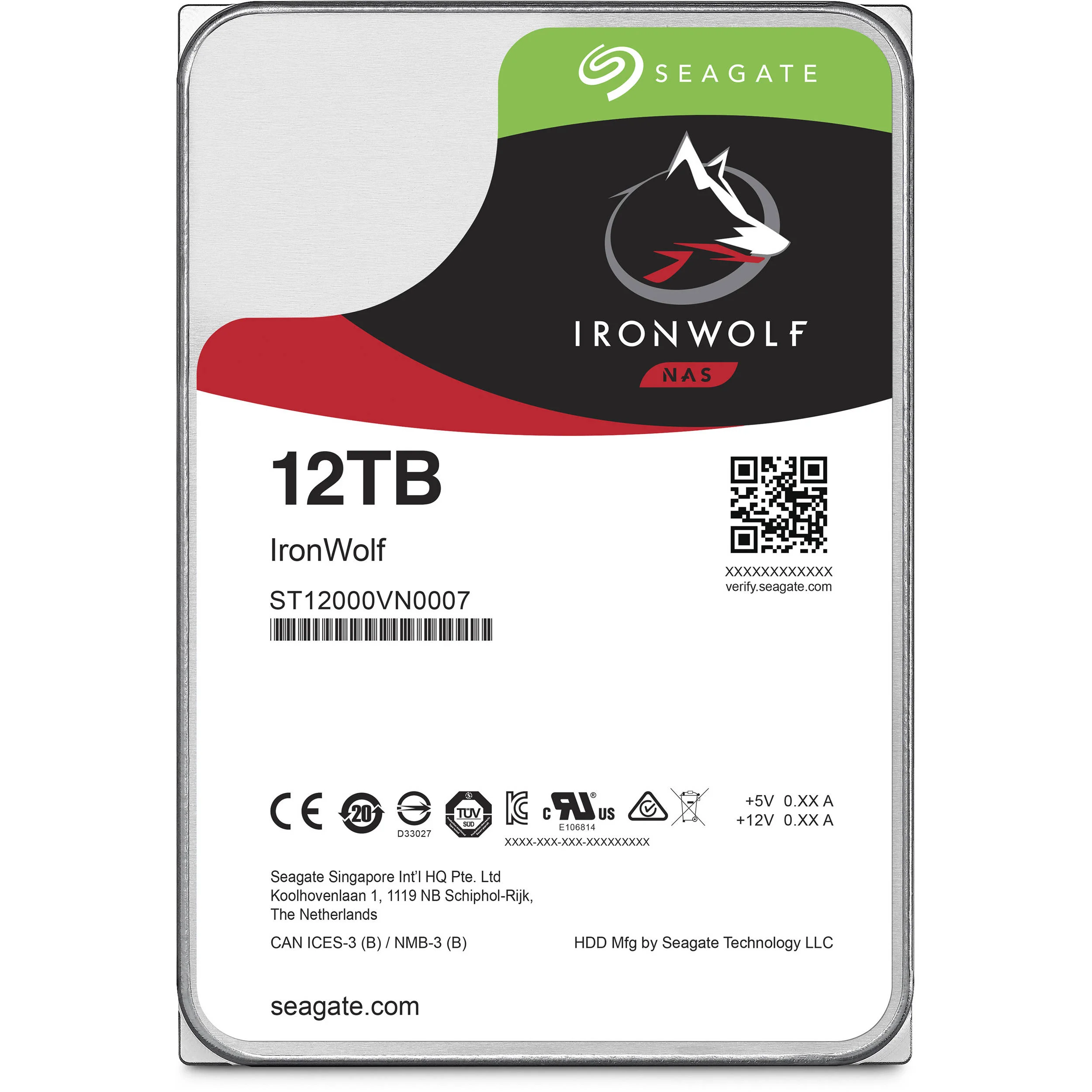

UPC: 846504002672 - 5 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate . The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
- Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
- IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
- Enables user workload rate of 180TB/year
- Designed for always-on, always-accessible 24×7 performance
UPC: 763649123386
- DX517 5-Bay Expansion Enclosure
- Accessory Pack
- AC Power Cord
- eSATA Expansion Cable
- Limited 3-Year Warranty
- Synology DX517 5-Bay Expansion Enclosure
Hardware Specifications Applied Models Models DS1817+, DS1517+ Storage Drive Bays 5 Compatible Drive Types 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSDHot Swappable Drives Yes RAID Management through Synology DSM Yes External Ports eSATA Ports 1 Power Power Recovery Synchronized with the Synology DiskStation Power Supply Unit / Adapter 200 W AC Input Voltage 100 to 240 VAC Power Frequency 50/60 Hz, Single Phase Power Consumption Access: 29.9 W
HDD Hibernation: 2.4 WTemperature Operating Temperature 40 to 104°F / 4 to 40°C Storage Temperature 15 to 155°F / -9 to 68°C Relative Humidity 5 to 95% Others System Fan 80 x 80 mm (2 pieces) Easy Replacement System Fan Yes Noise Level 21.5 dBA Certifications FCC Class B
CE Class B
BSMI Class BEnvironment RoHS Compliant Dimensions & Weight Dimensions 6.2 x 9.8 x 9.2" / 157 x 248 x 233 mm Weight 8.62 lb / 3.91 kg Packaging Info Box Dimensions (LxWxH) 14.7 x 13.6 x 12.7" - 5 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Storage Drive Capacity 12.00 TB Cache Memory 256 MB Pre-Format Not Specified by Manufacturer Performance Interface SATA III (6 Gb/s) Maximum Read Speed 210 MB/s Maximum Write Speed Not Specified by Manufacturer Physical Drive Type HDD Form Factor 3.5" HDD Specs Spindle Speed (RPM) 7200 RPM Reliability / Data Integrity Encryption Not Specified by Manufacturer Mean Time Between Failures (MTBF) 1000000.00 Million Hours Non-Recoverable Read Errors per Bits Read 1 in 10 15 Electrical Power Draw 0.8 W (Standby)
0.8 W (Idle)Supported Voltage 5 VDC, 12 VDC Current 1.8 A at 12 VDC Environmental Operating Shock 70 G / 2.0 ms Storage Shock 250 G / 2.0 ms Operating Temperature 41 to 158°F / 5 to 70°C Storage Temperature -40 to 158°F / -40 to 70°C General Dimensions (W x H x D) 4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm Weight 1.55 lb / 0.70 kg Packaging Info Box Dimensions (LxWxH) 7.8 x 6.0 x 2.4"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
