Synology 32TB RX418 NAS Expansion Unit Kit with Seagate NAS Drives (4 x 8TB)
- 32TB Storage Capacity
- 4 x 8TB 7200 rpm SATA III 3.5" HDDs
- For the Synology RS818+ & RS818RP+
- For the Synology RS815+ & RS815RP+
- For the Synology RS816 & RS815
- 4 x 3.5"/2.5" SATA Drive Bays
- 1 x eSATA Port
- Hot-Swappable Drives
- RAID Management through Synology DSM
This B&H Kit combines the Synology RX418 4-Bay Expansion Unit with four Seagate 8TB IronWolf 7200 rpm SATA III 3.5" hard drives for a total storage capacity of 32TB.
- Synology RX418 4-Bay Expansion Unit

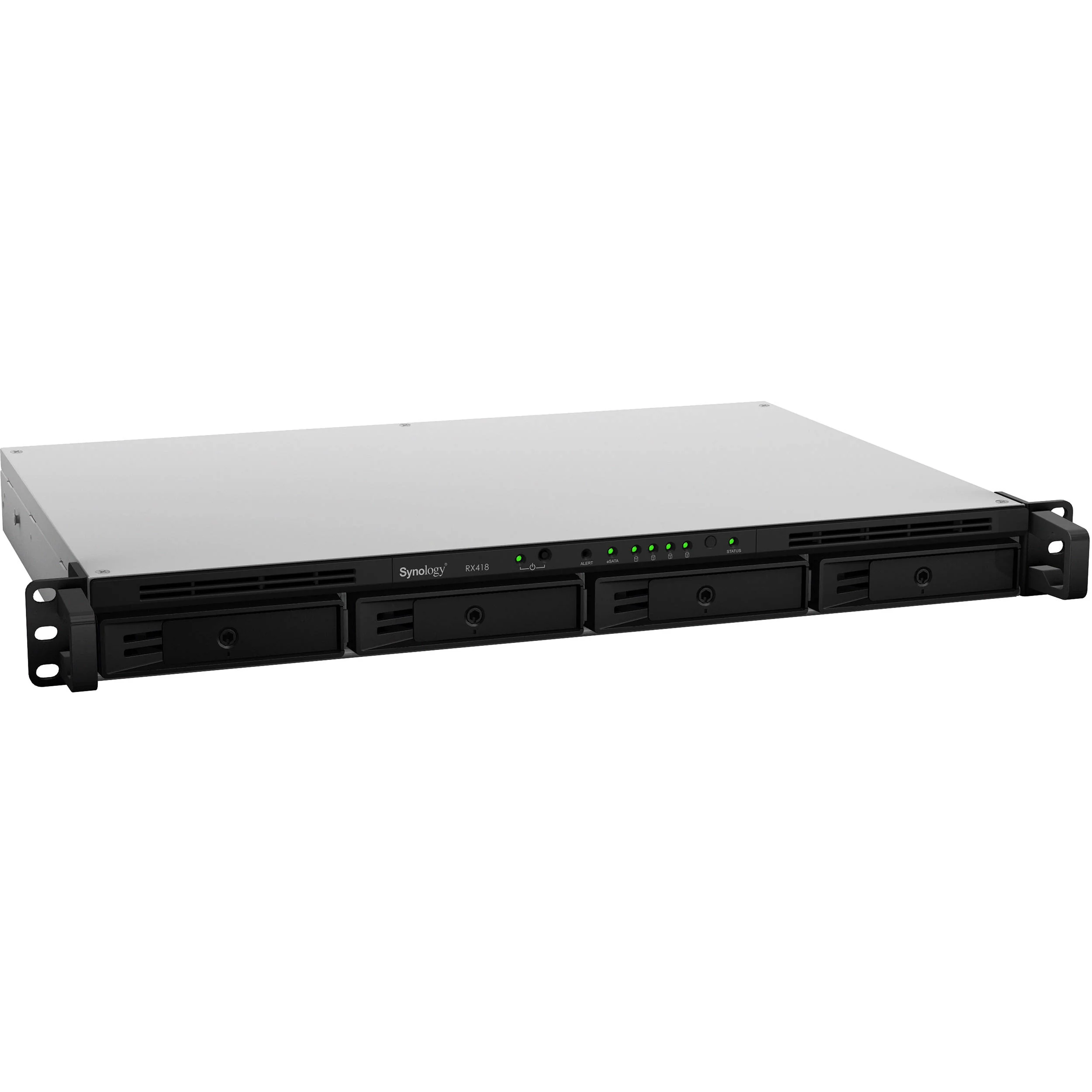

The RX418 4-Bay Expansion Unit from Synology is designed to provide storage expansion for their RS818+ RS818RP+, RS815+, RS815RP+, RS816, and RS815 NAS arrays. It can also be used as a dedicated local backup destination for Synology 1 RU RackStation arrays for comprehensive data protection.
The four drive bays of the RX418 natively support 3.5" and 2.5" SATA hard drives and SSDs. The drives are hot-swappable and there is also RAID management through Synology Disk Station Manager. The RX418 is equipped an eSATA port, which allows for connectivity with your host NAS, and operates using a 100W power supply that run using 100-240 VAC at 50/60 Hz. Included is an accessory pack, an AC power cord, and an eSATA cable.General Features
- Storage Capacity Expansion
- When the storage capacity on a Synology 1 RU RackStation reaches its limit, Synology's RX418 expansion unit provides easy capacity expansion by adding four 3.5"/2.5" SATA drives to the system. The Synology RX418 can also be used as a dedicated local backup destination of a Synology 1 RU RackStation for comprehensive data protection.
- Plug-and-Play Design
- Simply connect the Synology RX418 to a corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
- Green and Easy to Manage
- Synology's DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.

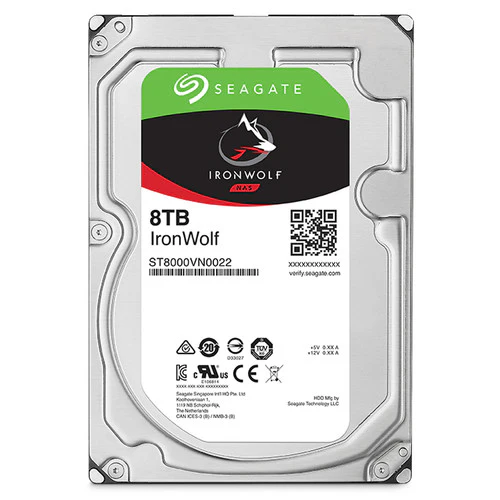

UPC: 846504002986 - 4 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 10 15 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features
- Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
- 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
- Private cloud
UPC: 763649117552
- RX418 4-Bay Expansion Unit
- Accessory Pack
- AC Power Cord
- eSATA Cable
- Limited 3-Year Hardware Warranty
- Synology RX418 4-Bay Expansion Unit
Hardware Specifications Compatible Models RS818+ / RS818RP+
RS815+ / RS815RP+
RS816
RS815
Some models support independent volume creation onlyStorage Drive Bays 4 Compatible Drive Types 3.5" SATA HDDs
2.5" SATA HDDs
2.5" SATA SSDsMaximum Internal Raw Capacity 48 TB (4 x 12 TB, capacity may vary by RAID types) Hot-Swappable Drive Yes RAID Management through Synology DSM Yes External Ports eSATA Port 1 Power Power Recovery Synchronized with the Synology RackStation Power Supply Unit / Adapter 100 W AC Input Power Voltage 100 to 240 VAC Power Frequency 50 to 60 Hz, Single Phase Power Consumption Access: 23.26 W
Hibernation: 6.39 WTemperature & Humidity Operating Temperature 40 to 95°F / 4 to 35°C Storage Temperature -5 to 140°F / -21 to 60°C Relative Humidity 5 to 95% RH General System Fan 40 x 40 mm (3 pieces) Noise Level 25.1 dBA Dimensions 1.7 x 18.9 x 12.8" / 44 x 480 x 325 mm Weight 9.44 lb / 4.28 kg Packaging Info Box Dimensions (LxWxH) 20.7 x 15.7 x 5.6" - 4 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Specifications Capacity 8 TB Interface SATA III 6 Gb/s Features and Performance Drive Bays Supported 1 to 8 Multi-User Technology 180 TB per year Rotational Vibration (RV) Sensors Yes IronWolf Health Management Yes Dual-Plane Balance Yes Error Recovery Control Yes Max Sustained Transfer Rate OD 210 MB/s Spindle Speed 7200 rpm Cache 256 MB Reliability/Data Integrity Load/Unload Cycles 600,000 Non-Recoverable Read Errors per Bits Read 1 per 10 15 Power-On Hours per Year 8760 Workload Rate Limit 180 TB per year Mean Time Between Failures (MTBF) 1 million hours Power Management Startup Current, Typical (12 V) 2.0 A Average Operating Power 9.0 W Idle Average 7.2 W Standby Mode/Sleep Mode, Typical 0.6/0.6 W Voltage Tolerance 5 V: ±5%
12 V: ±10%Environmental Temperature Operating (ambient, min): 41°F / 5°C
Operating (drive case, max): 158°F / 70°C
Non-Operating (ambient, min): -40°F / -40°C
Non-Operating (ambient, max): 158°F / 70°CHalogen Free Yes Shock, Operating/Non-Operating: 2 ms 70/250 Gs (max) Acoustics Idle: 2.7 bels
Operating: 2.8 belsPhysical Dimensions 1.028 x 4.01 x 5.787" / 26.11 x 101.9 x 147 mm Weight 1.72 lb / 0.78 kg Packaging Info Box Dimensions (LxWxH) 7.8 x 6.0 x 2.3"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
