SHAPE Canon C500 Mark II Shoulder Mount

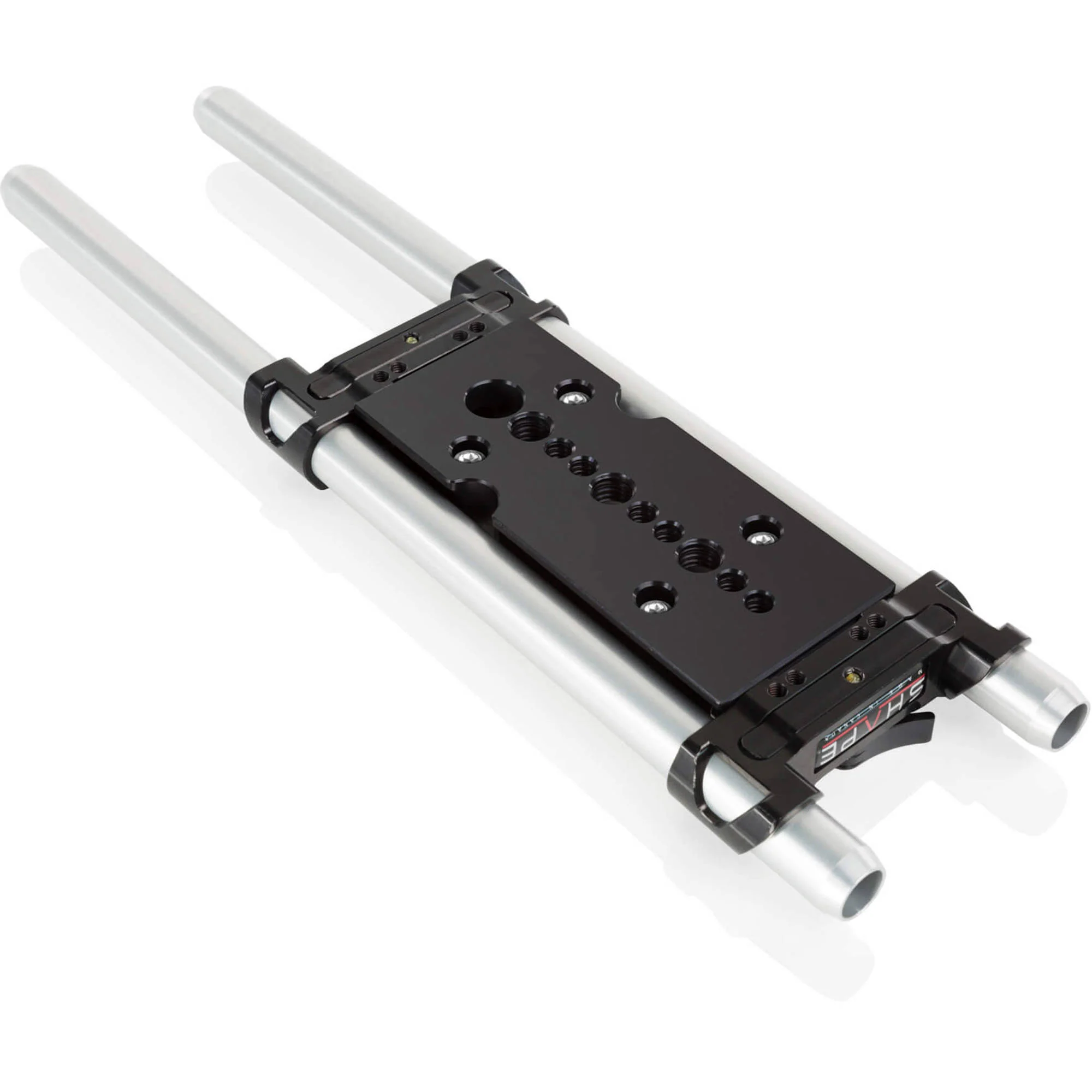

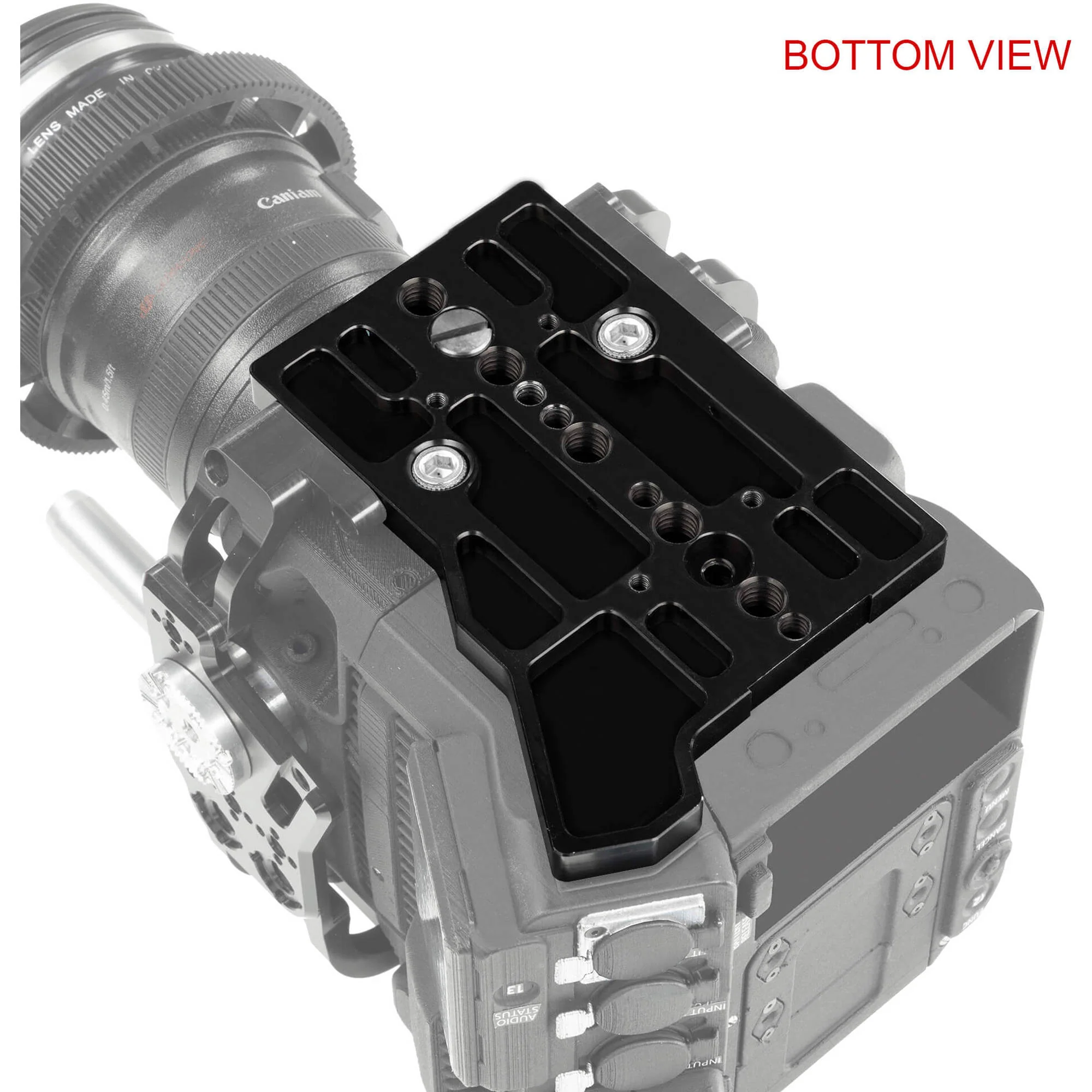

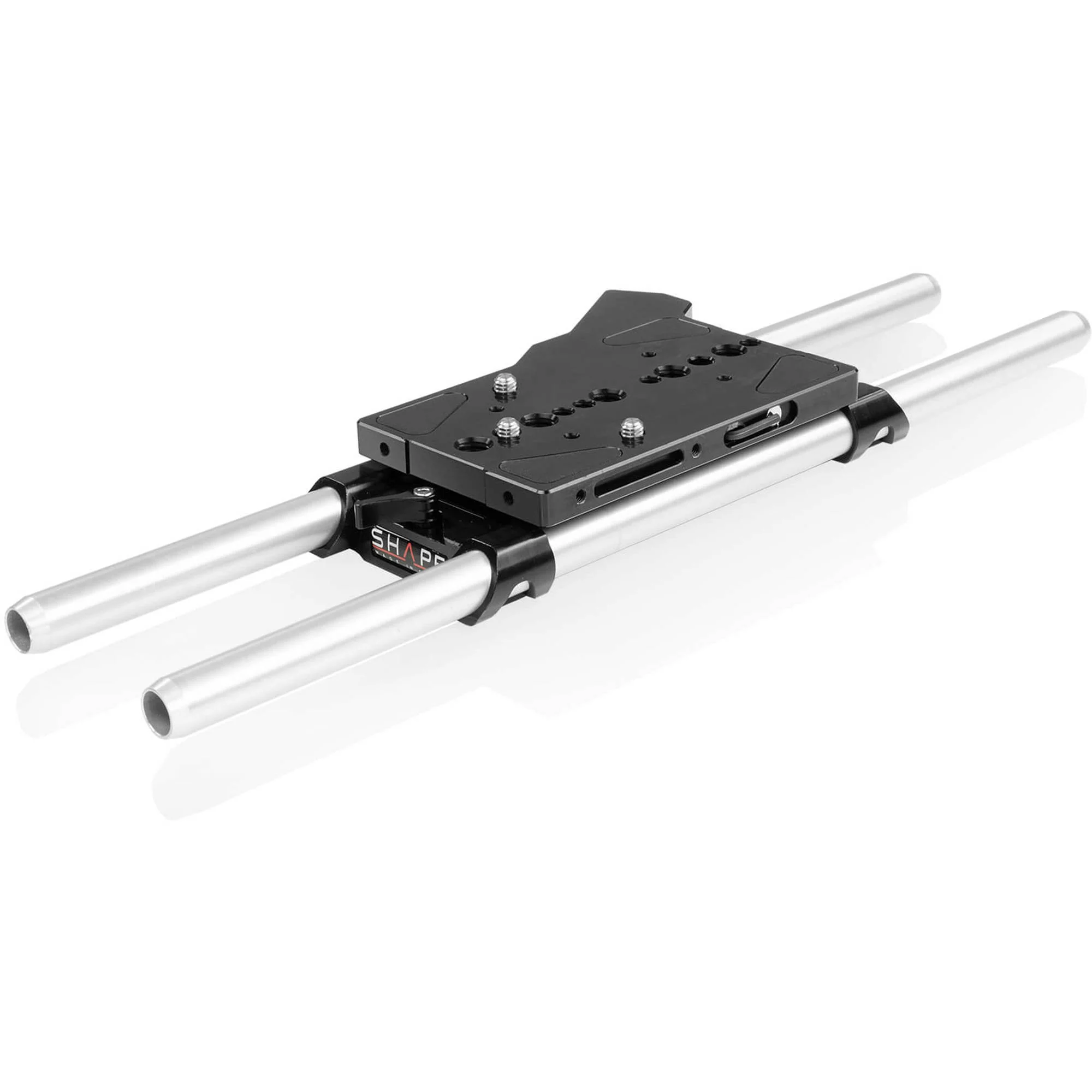

C500 Mark II 15mm Lightweight Baseplate

Quick Handle Rod Block

Mini Composite Shoulder Pad

Back Pad

SHAPE Camera Kit for the Canon C500 Mark ii

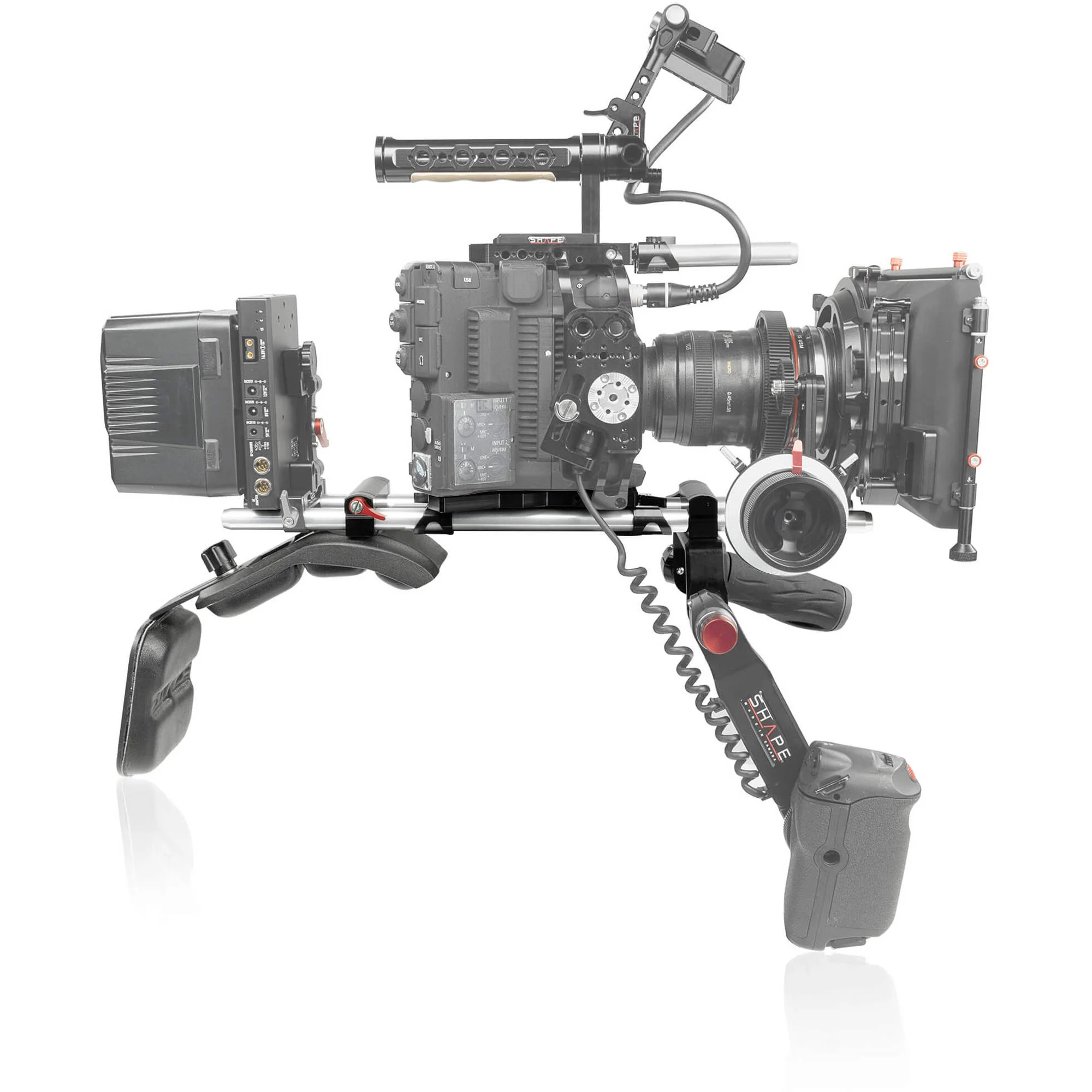

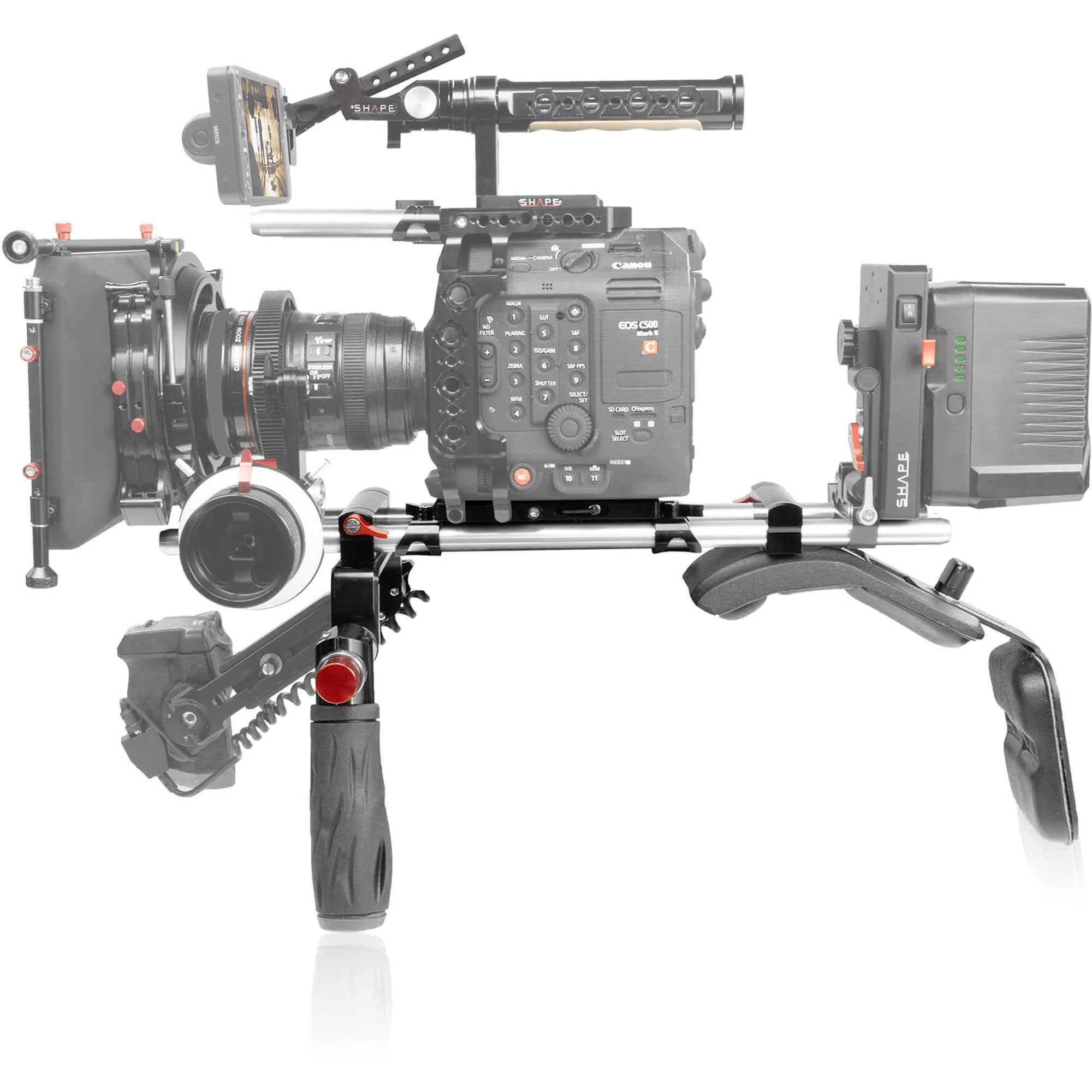

The SHAPE Canon C500 Mark II Shoulder Mount is a bundle consisting of SHAPE's C500 Mark II 15mm Lightweight Baseplate, Quick Handle Rod Block, Mini Composite Shoulder Pad, Back Pad, and a pair of 18" long 15mm support rods. This combination provides you with a comfortable shoulder-mounted handheld rig for use with the Canon C500 Mark II. The Quick Handle Rod Bloc mounts on the rods and feature the SHAPE push-button adjustment feature, while the Mini Shoulder Pad mounts onto the lightweight baseplate and provides an attachment point for the Back Pad, which allows you to pull the rig forward and stabilize it against your back.

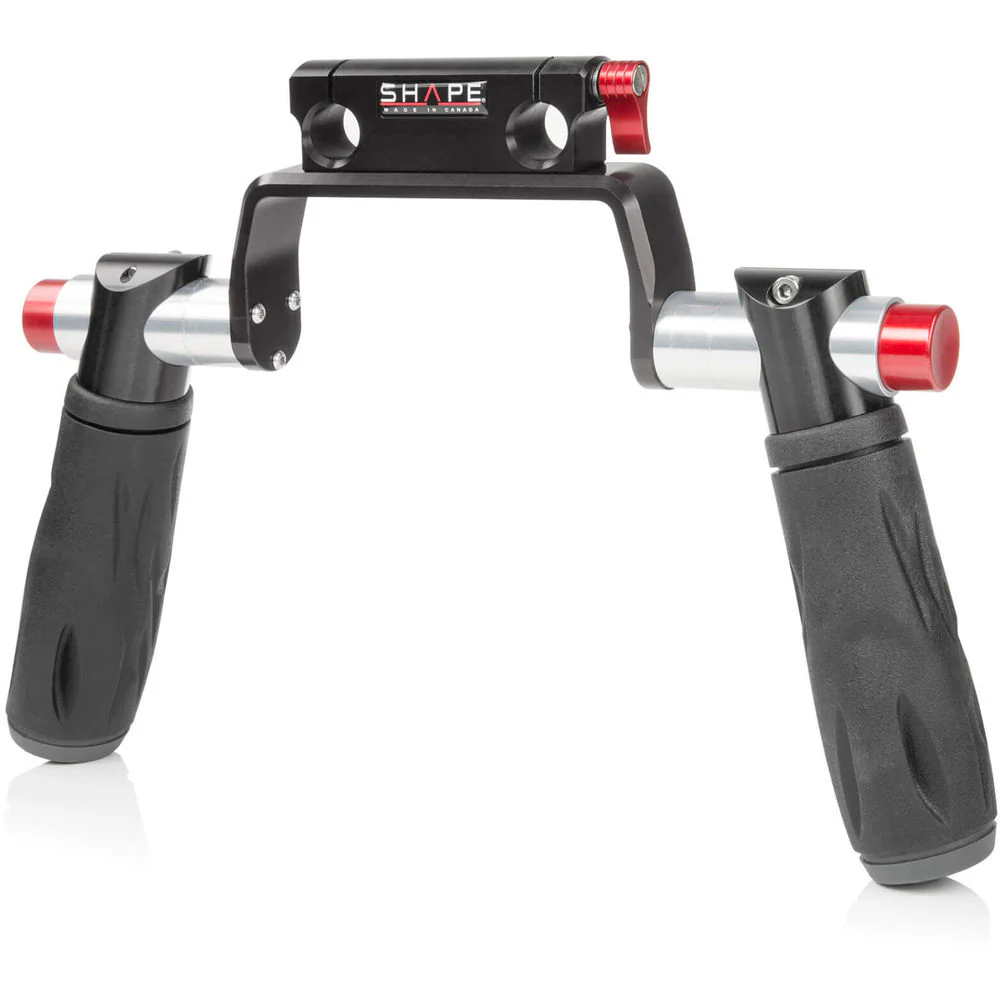

SHAPE Quick Handle + Rod Block

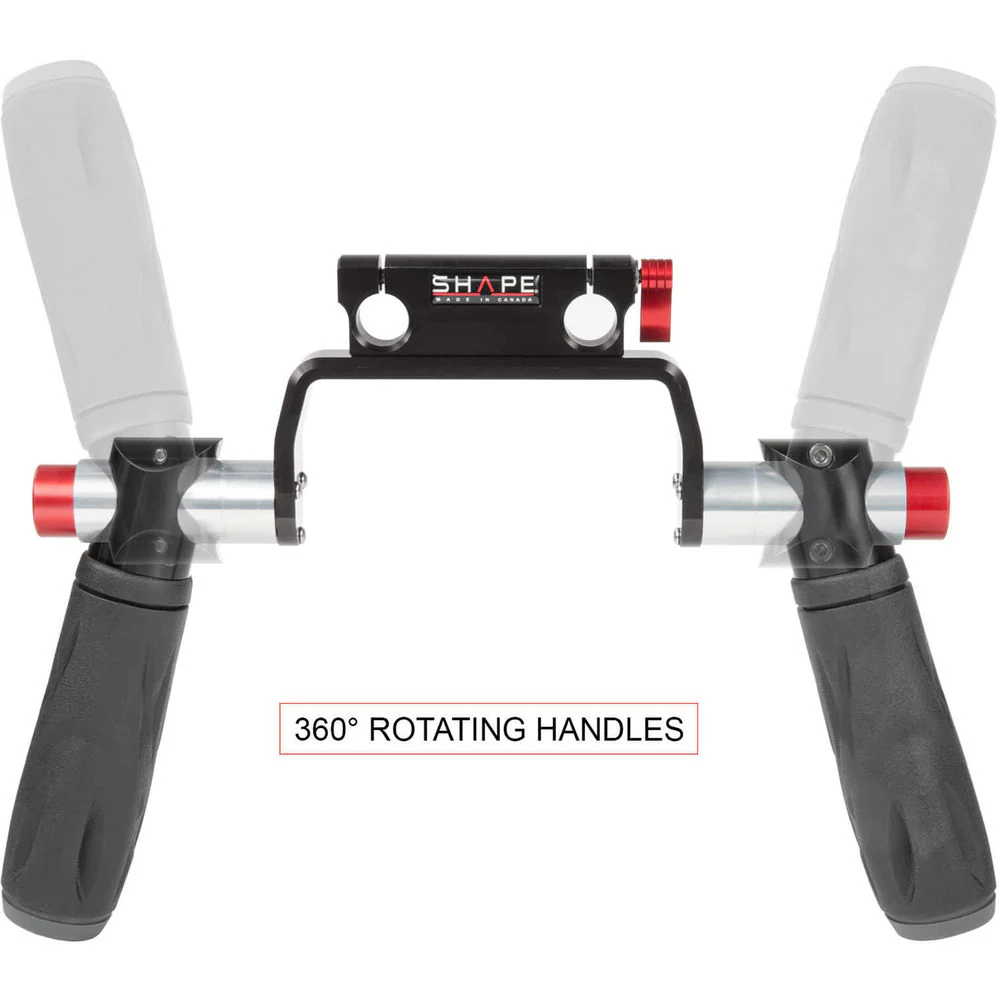

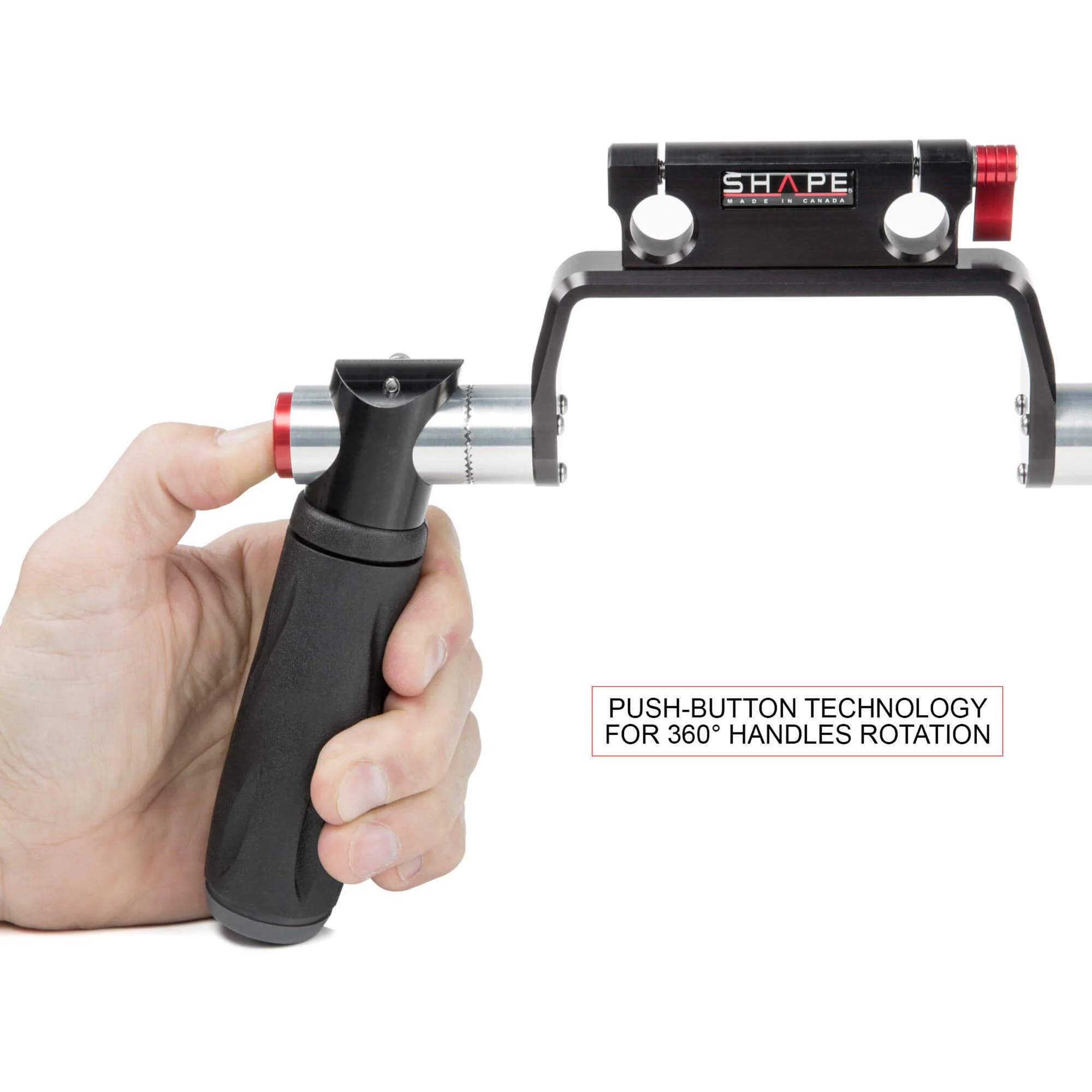

The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.

Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

Quick Handle Provides professional video stabilization with 2 handles Each handle offers 360° individual rotation Offers easy attachment/removal Rod Block Composed of anodized aluminum Offers composite camera support for all 15mm rods Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob With 2 screw-threaded holes, the Rod Block provides for attachment of components UPC: 629266000793 SHAPE Mini Composite Shoulder Pad

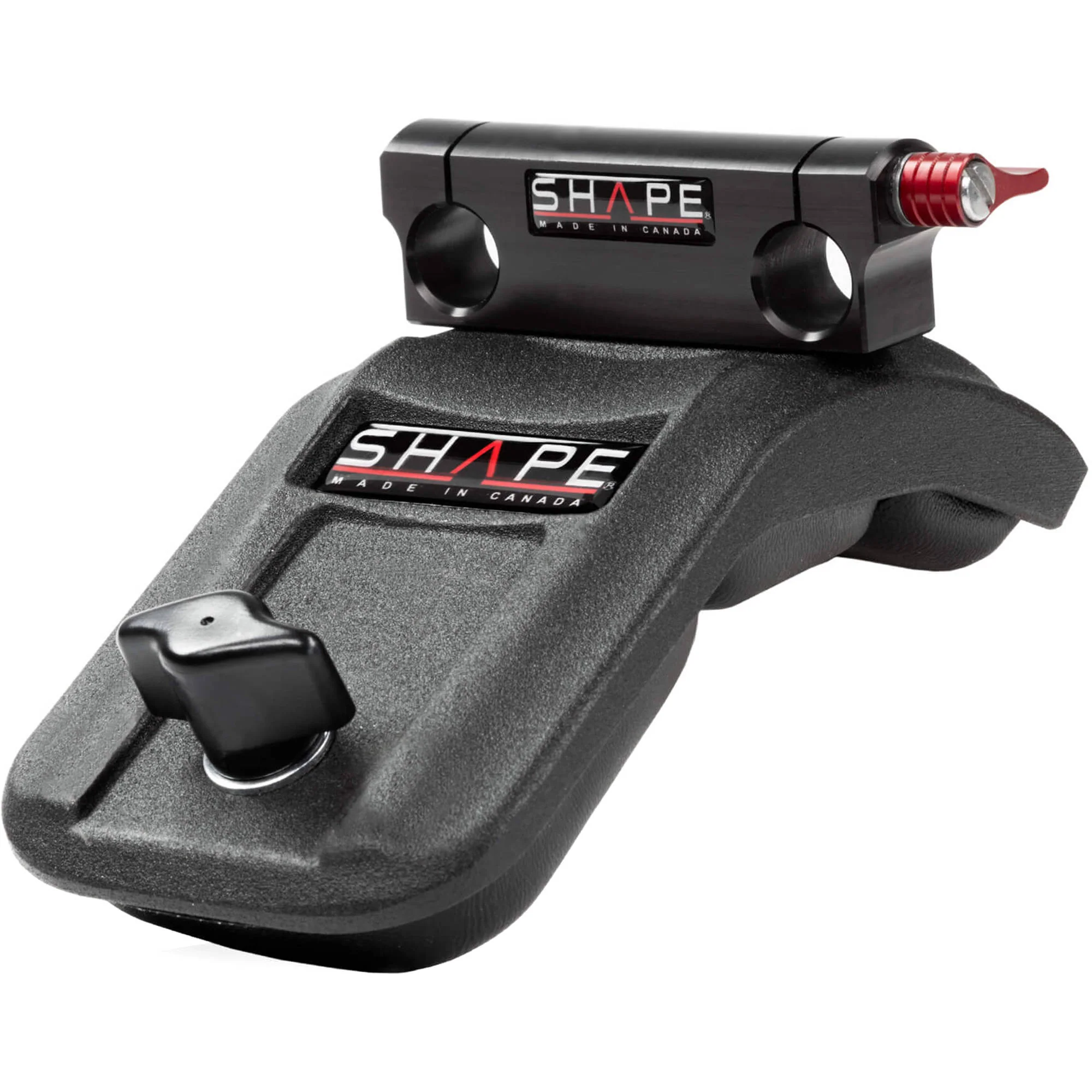

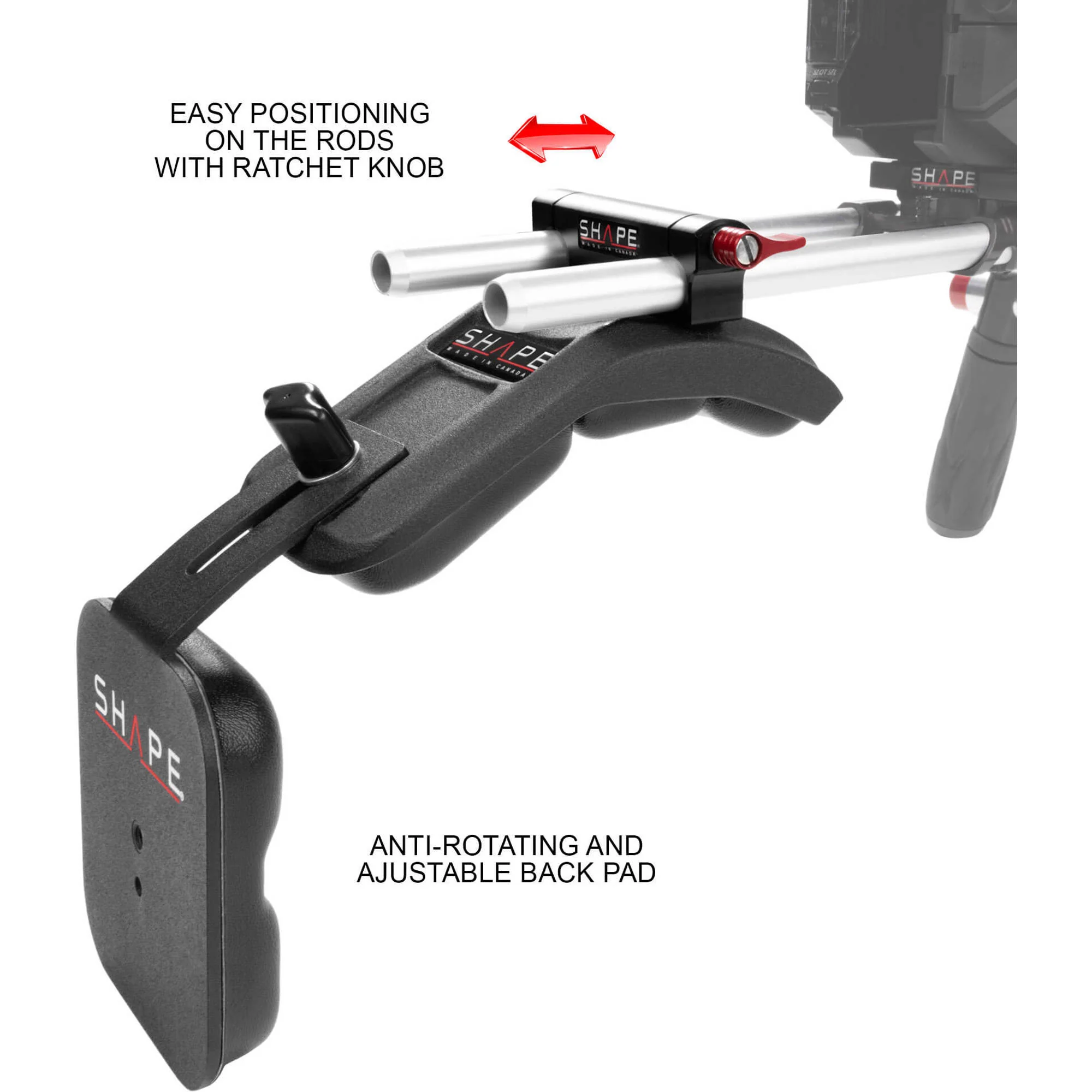

The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

UPC: 629266000830 SHAPE Back Pad

The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference � up to 2" vertically and 360° horizontally.

Compatible Support Series

• Composite
• Cameleon
• Sumo
• Spider

UPC: 629266001202 SHAPE 15mm Rods (18", Pair)

These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.

Pair of aluminum support rods for 15mm rod clamps. 18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp. UPC: 629266002223

Package Weight	1.985 lb
Box Dimensions (LxWxH)	12.7 x 11.3 x 2.55"

Package Weight	0.9 lb
Box Dimensions (LxWxH)	6.5 x 4.3 x 3.4"

Material of Construction	Anodized aluminum
Adjustments	Up/Down: 2" (5 cm) Right/Left: 360°
Weight	0.5 lbs (0.2 kg)

Package Weight	0.45 lb
Box Dimensions (LxWxH)	8.3 x 4.8 x 4.5"

Diameter	15mm
Length	18" (45.7 cm)
Weight	0.4 lb (181.4 g)

Package Weight	0.45 lb
Box Dimensions (LxWxH)	18.5 x 2.992 x 0.236"
