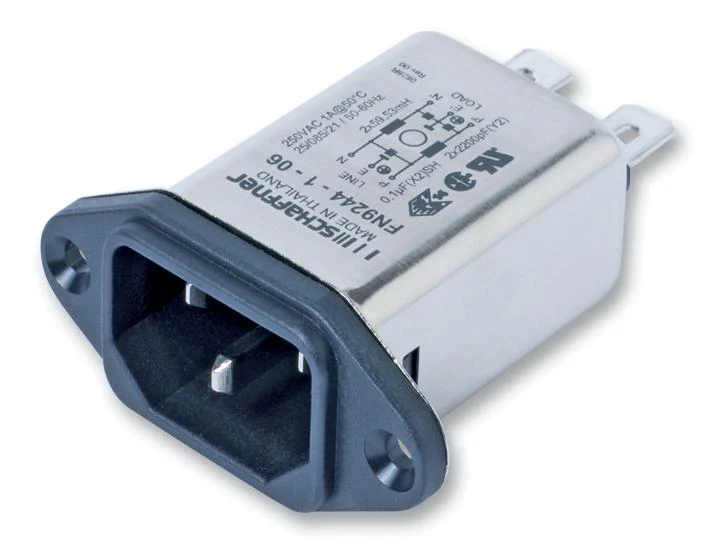

Schaffner FN9244B-3-06 FN9244B-3-06 Filtered IEC Power Entry Module C14 Medical 3 A 250 VAC

The FN9244B-3-06 is an excellent performance IEC Inlet Filter with superior attenuation performance. This combines an IEC inlet and mains filter with superior filter attenuation in a small form factor. Choosing this product brings the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filter is a practical solution to pass EMI system approval in a short time. It is suitable for medical applications and designed to offer the desired solution. It has exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. This medical version comply with the requirements of IEC/EN 60601-1 for creepage and clearance, leakage current and high potential testing.

• IP40 Protection rating
• UL94V-2 Flammability rating
• -25 to 85°C Operating temperature range
• Rear/front or snap-in mounting

Applications

Portable Devices, Consumer Electronics, Power Management, Test & Measurement, Medical

Other details

Brand	SCHAFFNER
Part Number	FN9244B-3-06
Quantity	Each
Technical Data Sheet EN
