SAMTEC TSM-106-01-L-SV Board-To-Board Connector, 2.54 mm, 6 Contacts, Header, TSM Series, Solder, 1 Rows
SAMTEC TSM-106-01-L-SV Board-To-Board Connector, 2.54 mm, 6 Contacts, Header, TSM Series, Solder, 1 Rows

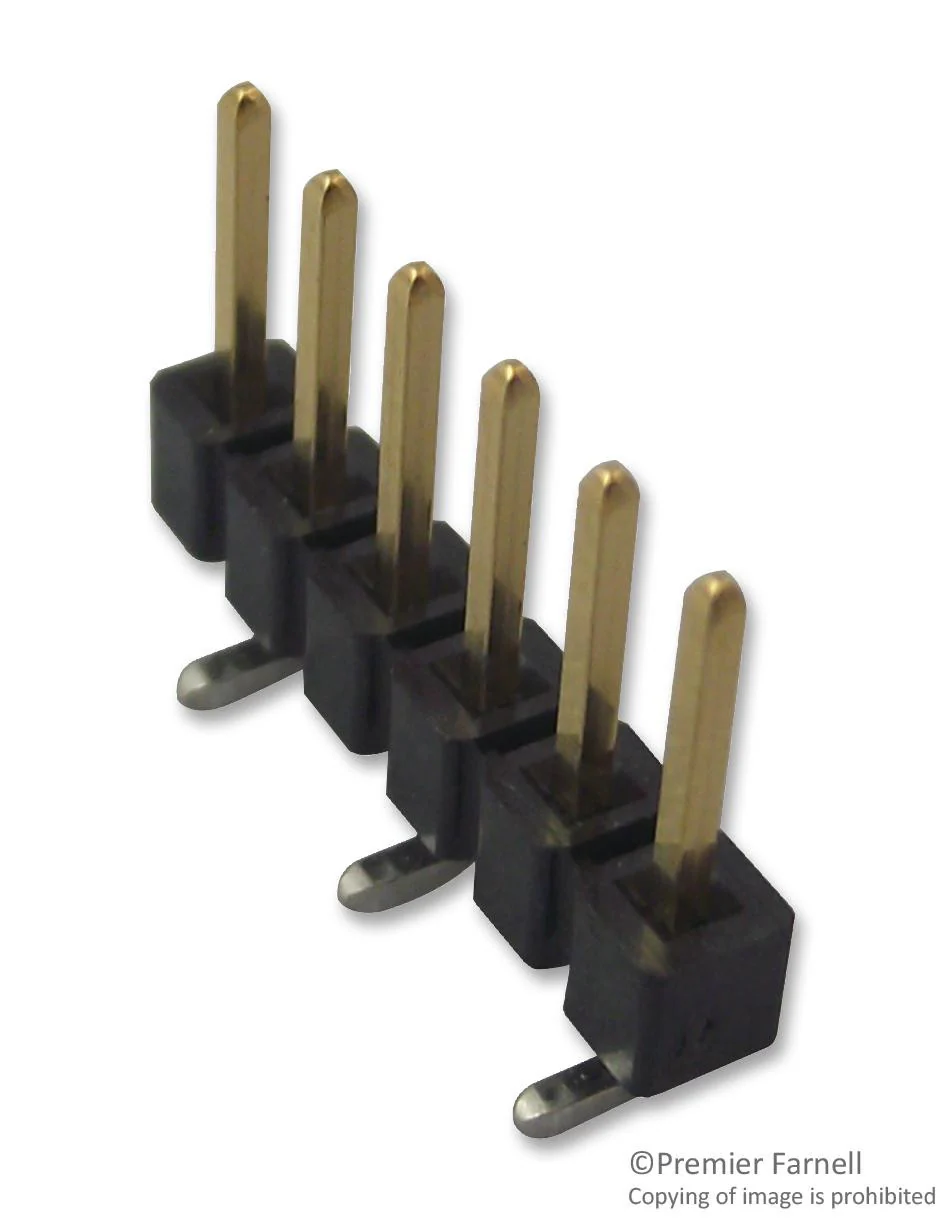

The TSM-106-01-L-SV is a 6-pole 1-row 2.54mm Surface Mount Terminal Strip with 10µinch (0.25µm) gold-plated phosphor bronze contacts, matte tin plated tail and LCP insulator. The TSM series vertical pin terminal strip is compatible with BCS, BSW, CES, ESQ, ESW, HCSD, HCSS, HLE, IDSD, IDSS, ISDM, ISSM, MNT, PHF, SLW, SMH, SMSD, SMSS, SNT, SSM, SSQ and SSW series connectors. Designed specifically for surface mount applications with many options to facilitate processing.
- Pitch spacing is 2.54mm (2 to 36 contacts per row) with single row vertical pin (-SV)
- High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts
- Contact material is phosphor bronze
- Black liquid crystal polymer insulator material
- Suitable for board stacking
- Complies with UL E111594 and CSA 090871_0_000 standards
Applications
Industrial
Product details
| No. of Contacts | 6Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | TSM Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Solder |
| Pitch Spacing | 2.54mm |
| No. of Rows | 1Rows |
Other details
| Brand | SAMTEC |
| Part Number | TSM-106-01-L-SV |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.43
