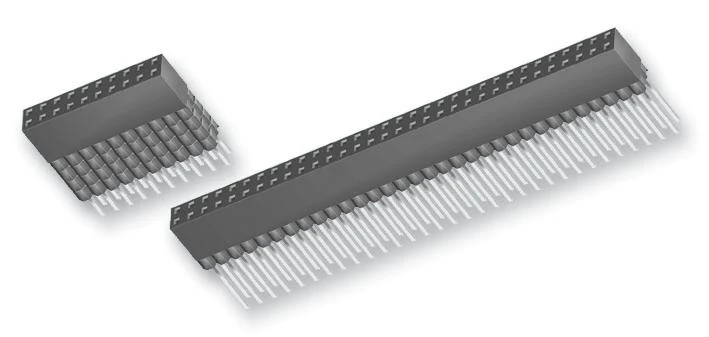

SAMTEC ESQ-126-14-G-D Board-To-Board Connector, 2.54 mm, 52 Contacts, Receptacle, ESQ Series, Through Hole, 2 Rows
SAMTEC ESQ-126-14-G-D Board-To-Board Connector, 2.54 mm, 52 Contacts, Receptacle, ESQ Series, Through Hole, 2 Rows
- Orderable with single/dual/triple rows (-S/-D/-T option)
- Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation
- High operating temperature range of -55�C to 125�C for 20�" gold plated contacts
- Contact material is phosphor bronze
- Black glass filled polyester insulator material
- Tiger Buy contact system
- Complies with UL E111594 and CSA 090871_0_000 standards
Applications
Industrial
Product details
| No. of Contacts | 52Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | ESQ Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | ESQ-126-14-G-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
