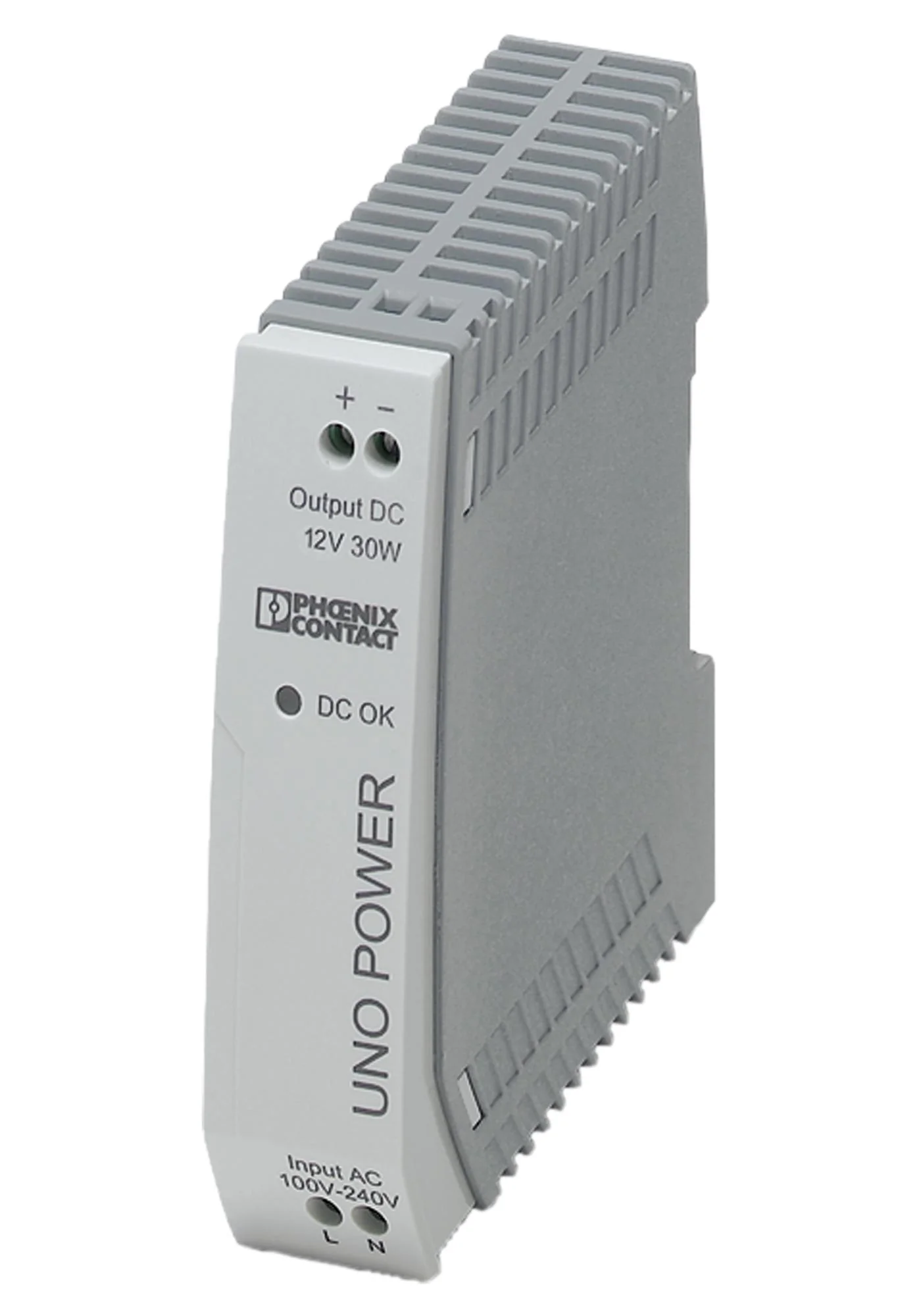

Phoenix Contact UNO-PS/1AC/12DC/30W AC/DC DIN Rail Power Supply (PSU) ITE 1 Output 30 W 12 VDC 2.5 A

The UNO-PS/1AC/12DC/30W is a DIN-rail mount primary-switched Power Supply Unit impresses in worldwide use thanks to maximum energy efficiency. Low no-load losses and the high degree of efficiency save energy. Thanks to its high power density, the UNO POWER power supply unit is the ideal solution, particularly in compact control boxes. The power supply unit is available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.

• Flexible mounting by simply snapping onto the DIN rail
• More space in the control cabinet with up to 20% higher power density
• <1s Typical response time
• 2A Input fuse, integrated (slow-blow, internal)
• <30mVpp Residual ripple (with nominal values)
• <0.3W Maximum power dissipation no-load
• <4.6W Maximum power loss nominal load
• >87% Efficiency (for 230VAC and nominal values)
• IP20 Protection rating

Applications

Power Management

Other details

Brand	PHOENIX CONTACT
Part Number	UNO-PS/1AC/12DC/30W
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
