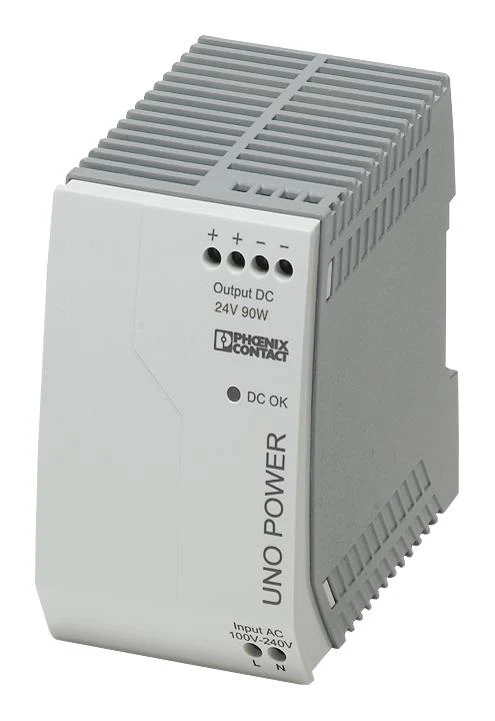

PHOENIX CONTACT 2902994 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 90 W, 24 VDC, 3.75 A GTIN UPC EAN: 4046356808705 UNO-PS/1AC/24DC/90W/C2LPS
PHOENIX CONTACT 2902994 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 90 W, 24 VDC, 3.75 A GTIN UPC EAN: 4046356808705 UNO-PS/1AC/24DC/90W/C2LPS
UNO-PS/1AC/24DC/90W/C2LPS primary-switched UNO POWER power supply basic functionality for DIN rail mounting. It has high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240W, particularly in compact control boxes. This power supply units are available in various performance classes and overall widths. This is high degree of efficiency and low idling losses ensure a high level of energy efficiency. It has maximum energy efficiency over 91%, efficiency and extremely low idling losses under 0.3W. It has more space in the control cabinet with up to 20% higher power density. Approved by UL/C-UL listed UL 508, NEC class 2 as per UL 1310, UL/C-UL listed ANSI/ISA-12.12.01 class I, division 2, groups A, B, C, D T4 (Hazardous Location), UL/C-UL recognized UL 60950-1, EN 50178/VDE 0160 (PELV), EN 61000-3-2, IEC 62368-1 (SELV), IEC 62368-1 (SELV) und EN 60204-1 (PELV), DIN VDE 0100-410, EN 61558-2-16, EN 61000-4-11.
- Nominal input voltage range from 100 to 240VAC, output power is 90W
- Nominal output voltage is 24VDC ±1%, nominal output current is 3.75A (-25°C to 55°C)
- Typical efficiency is >88%(120 V AC), 88% (230VAC)
- Flexible mounting by simply snapping onto the DIN rail
- Degree of protection is IP20
- Plastic housing material
- Screw input and output connection
- Ambient temperature range from -25°C to 70°C (> 55 °C Derating: 2.5 %/K, operation)
- Dimension is (W x H x D) 55 x 90 x 84mm
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 90W |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 3.75A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Input Voltage VAC: 85V AC to 264V AC |
| Power Supply Output Type: Fixed |
| Product Range: UNO POWER Series |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 2902994 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
