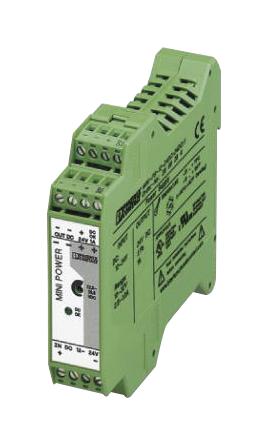

PHOENIX CONTACT 2866284 Isolated DIN Rail Mount DC/DC Converter, ITE, 3:1, 24 W, 1 Output, 24 V, 1 A GTIN UPC EAN: 4017918960902 MINI-PS- 12- 24DC/24DC/1
PHOENIX CONTACT 2866284 Isolated DIN Rail Mount DC/DC Converter, ITE, 3:1, 24 W, 1 Output, 24 V, 1 A GTIN UPC EAN: 4017918960902 MINI-PS- 12- 24DC/24DC/1
MINI-PS- 12- 24DC/24DC/1 primary-switched MINI DC/DC converter for DIN rail mounting and MCR technology. This DC/DC converter alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation. It has electrical isolation for setting up independent supply systems. This support conversion to various voltage levels. It has constant voltage output voltage regenerated even at the end of long cables. Approved by UL/C-UL listed UL 508, UL/C-UL Recognized UL 60950-1, UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D(Hazardous Location).
- Nominal input voltage range from 12 to 24VDC, efficiency is >83% (at 24VDCand nominal values)
- Nominal output voltage is 24VDC ±1%, nominal output current is 1A (-25°C to 60°C), output power 24W
- Degree of protection is IP20
- Green plastic PA housing material
- Ambient temperature range from -25°C to 70°C (> 60 °C Derating: 2,5 %/K, operation)
- Dimensions(L x W x H) is 22.5 x 99 x 107mm
Product details
| Power Supply Applications: ITE |
| Input Ratio: 3:1 |
| Output Power Max: 24W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 24V |
| Output Current - Output 1: 1A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: - |
| Isolation Voltage: 1.5kV |
| DC / DC Converter Output Type: Fixed |
| Input Voltage DC Nom: - |
| Width: - |
| Height: - |
| Depth: - |
| Input Voltage DC Min: 10V |
| Input Voltage DC Max: 32V |
| Product Range: MINI-PS Series |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 2866284 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$239.53
