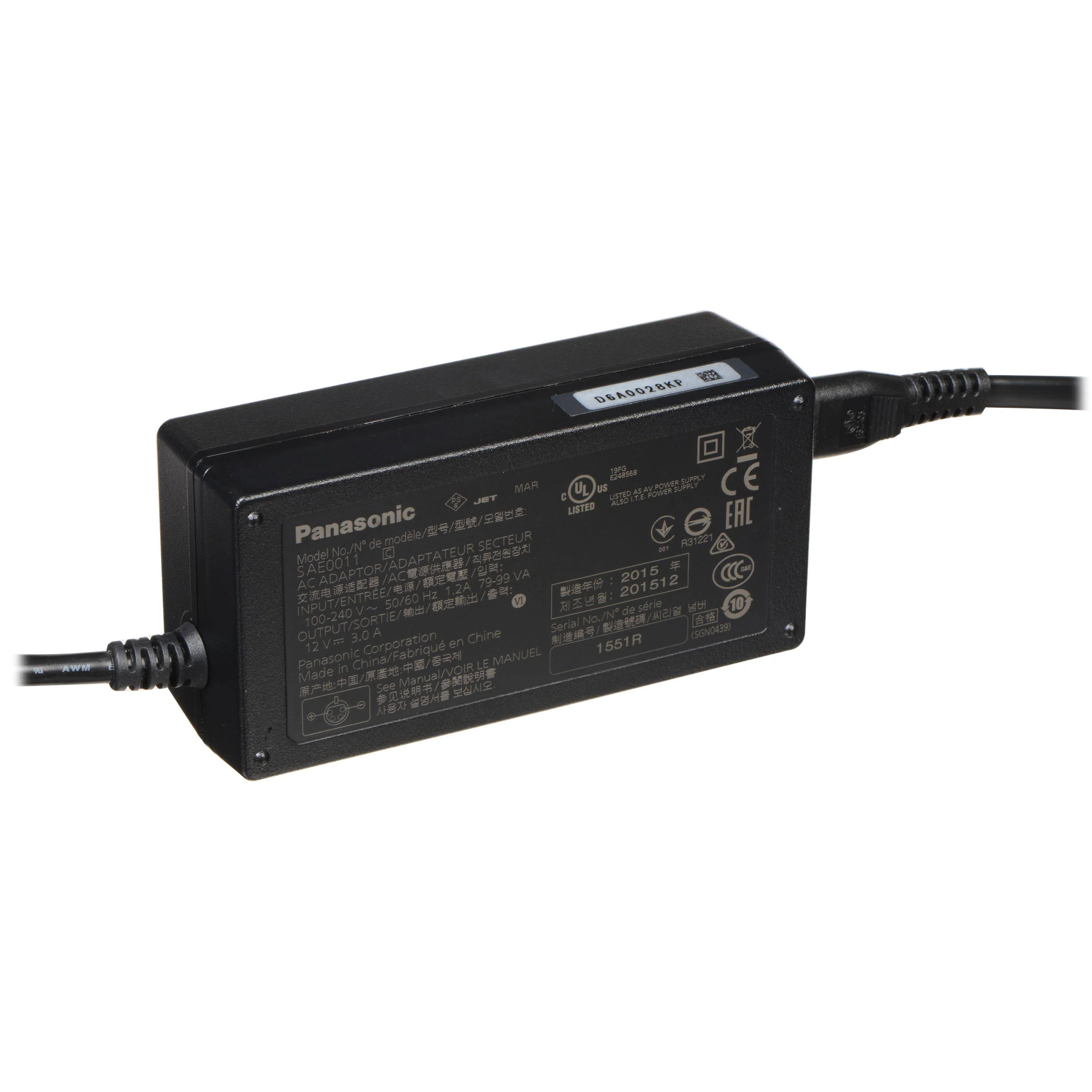

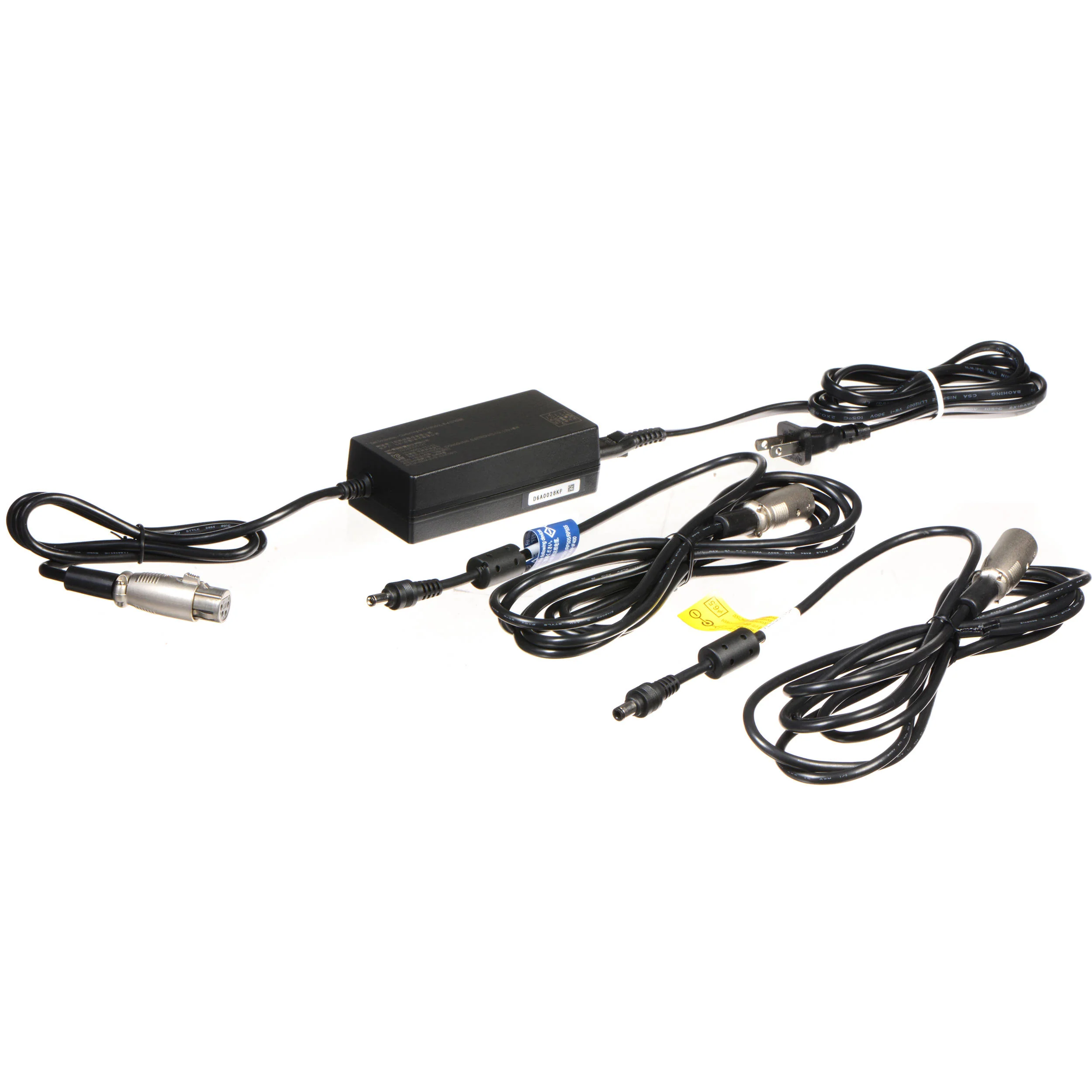

Panasonic AW-PS551PJ AC Power Adapter
- For Convertible & Multipurpose Cameras
- For Peripherals & Live Switchers
- 100-240 VAC, 50/60 Hz, 1.2A Input
- 12 VDC, 3.0A Output
- Cable Length: 30.7"

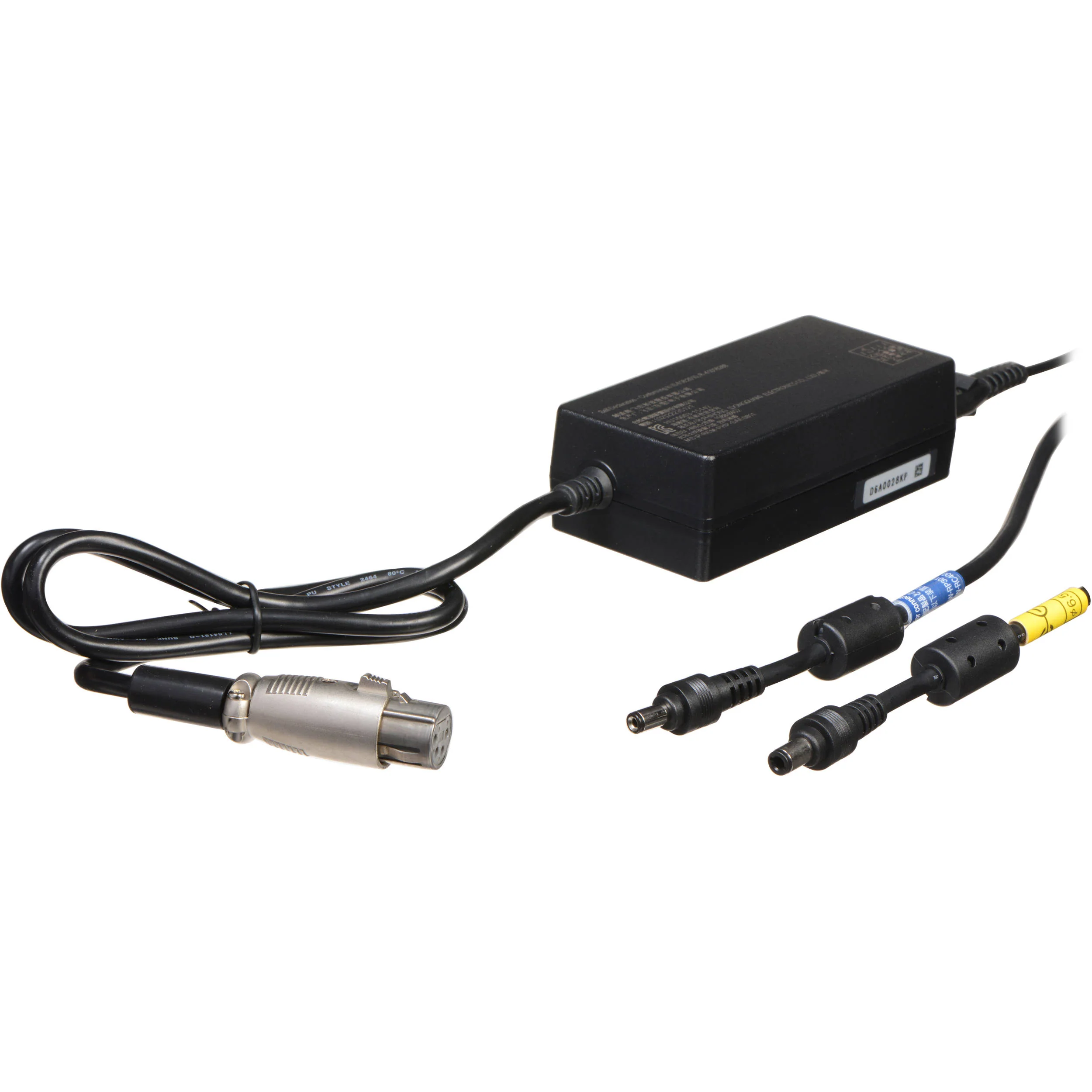

- DC Cables with 5.5/6.5mm Plugs Included
- Power Cable Included
The AW-PS551PJ AC Power Adapter from Panasonic allows you to power select convertible cameras and their peripherals, multipurpose cameras and their peripherals, and live switchers. It connects to a power outlet using the included cord, and supports 100�240 VAC input for use around the world. Also included are two DC cables, one with a 5.5mm plug and one with a 6.5mm plug, which enable you to use the power adapter with a variety of equipment.
Note: The included power cable supports up to 125 VAC input.
Panasonic AW-PS551P specs
| Compatibility | Select convertible or multipurpose cameras and their peripherals, and live switchers, including: AK-HC1500 Convertible HD Camera AW-SW350 Compact Switcher for Convertible Camera System AW-RP555 Compact Multi-Hybrid Control Panel AW-PH400 High-Speed Indoor Pan/Tilt Head AW-IF400 Protocol Converter for AW-PH400 Pan/Tilt System AW-DU600 Public Phone Line Adapter and RS-232C D.A. AW-RP655 Multifunction Controller AW-RP400 Controller AK-HRP150 Camera Controller |
| Material | Molded resin |
| Cable Length | 30.7" / 78 cm |
| Power Input | 100-240 VAC, 50/60 Hz, 1.2 A |
| Power Output | 12 VDC, 3 A |
| Connector | 4-pin round DC output connector |

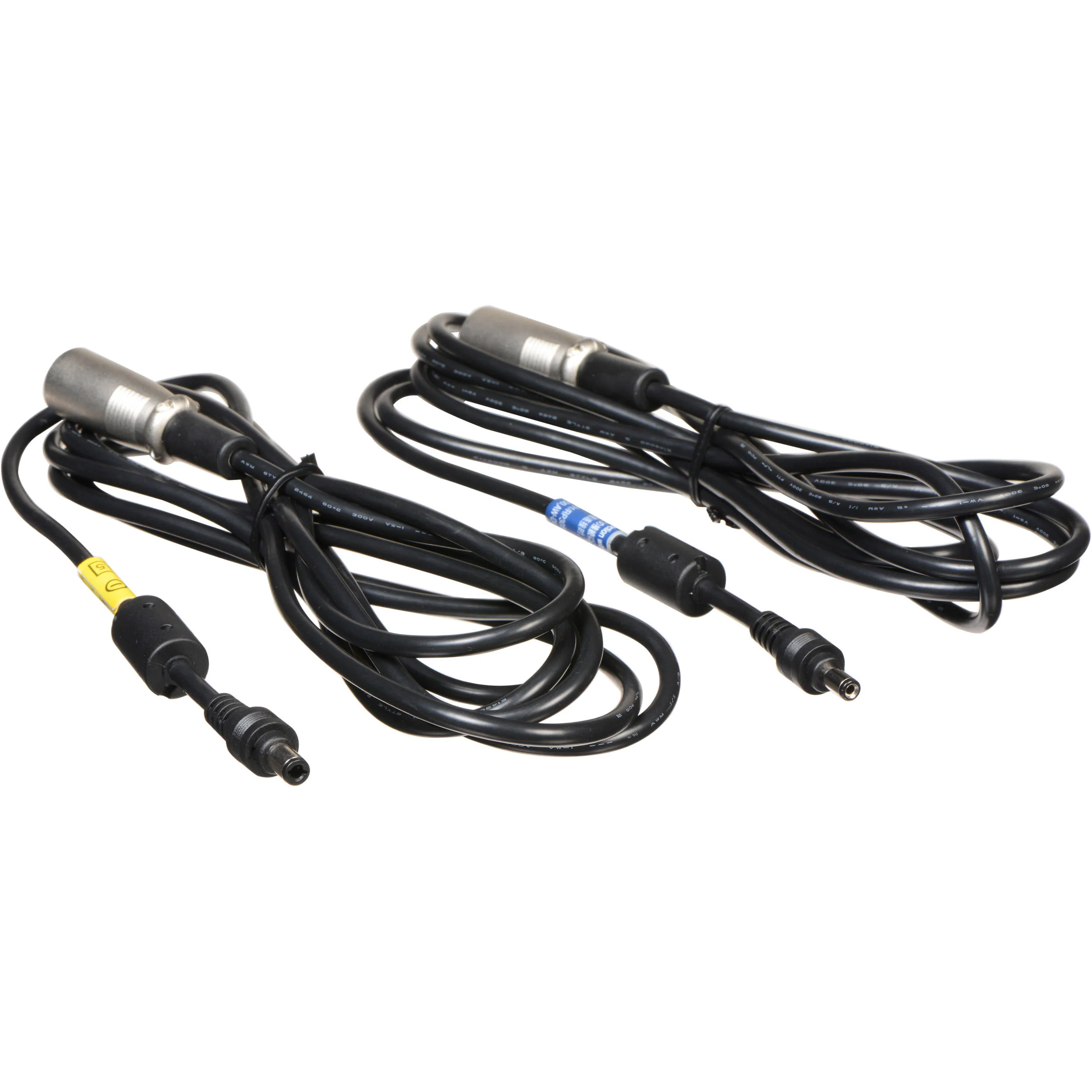

| DC Cables | 1 x Cable with 5.5 mm plug, UL-style 2464 2 x 18 AWG, 9.9' / 3 m 1 x Cable with 6.5 mm plug, UL-style 2464 2 x 18 AWG, 9.9' / 3 m |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Humidity | 20-90% (no condensation) |
| Dimensions | 2.25 x 1.45 x 4.50" / 5.7 x 3.7 x 11.5 cm, excluding protrusions |
| Weight | Approx. 0.57 lb / 260 g |
| Packaging Info | |
|---|---|
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 12.6 x 9.1 x 3.2" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
