Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver
HomeStore

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver

Teradek LT 1500 Overview

By Photo's
Jennifer Hahn

Receive lossless HD video from up to 1500' away along line of sight with the Bolt 6 LT 1500 50 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 3G-SDI outputs. With the same form factor as the Bolt 4K LT 1500, this new line supports the 6 GHz wireless band, which is now freely available.

The receiver supports transmissions of up to UHD 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
Wirelessly receive up to UHD 4K30 video and output up to UHD 4K30 via an HDMI or up to 1080p60 via 3G-SDI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and light chassis design
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
UPC: 818264028346

In the Box

  • Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver
  • 2-Pin to D-Tap Power Cable (18")
  • USB Type-A to Micro-USB Type-B Cable (3')
  • Ultra-Thin HDMI Type A to HDMI Type A Cable (18")
  • BNC to BNC SDI Cable (10")
  • AC Adapter with Cable (6')
  • 5 x Antenna

    Teradek LT 1500 Specs

    Inputs / Outputs

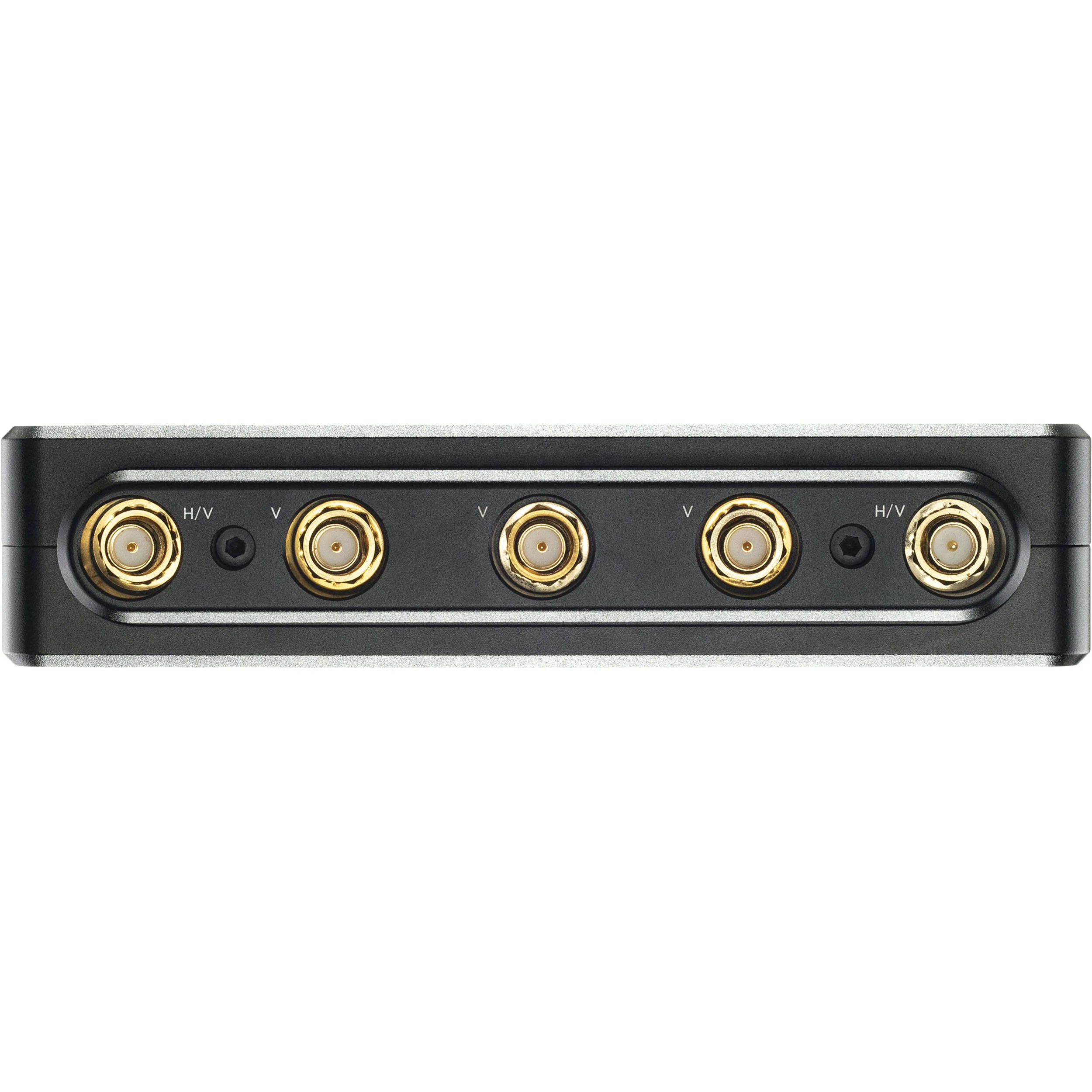

    Antenna I/O 5 x RP-SMA Female

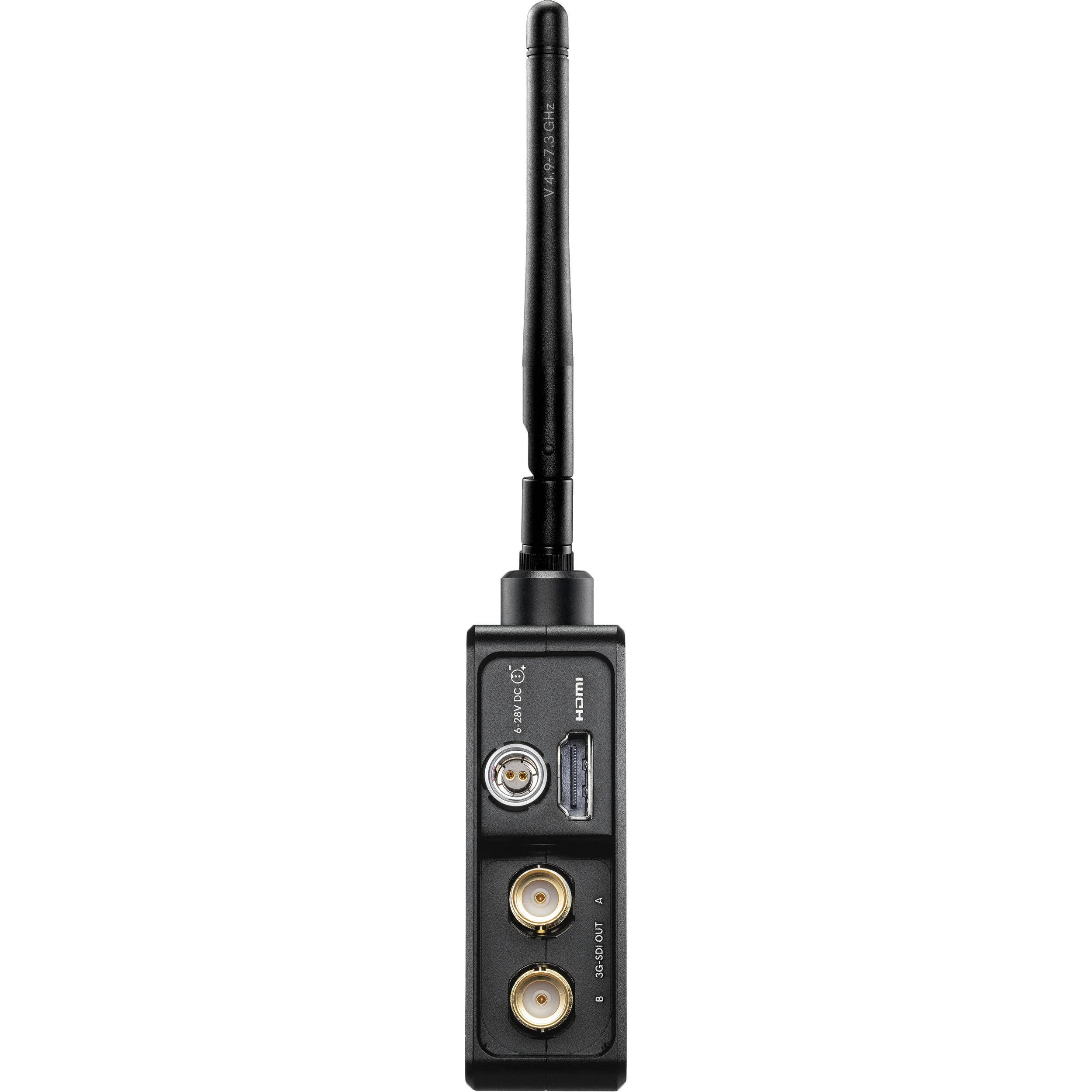

    Video I/O 1 x HDMI 1.4b Output
    1 x BNC (3G-SDI) Output
    Embedded Audio HDMI: 2-Channel
    SDI: 2-Channel
    Audio I/O None
    Power I/O 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O 1 x Micro-USB Input
    Encryption 256-Bit AES
    Wireless
    Wireless Range 1500' / 457.2 m (Line-of-Sight)
    Channel Bandwidth 40 MHz, 20 MHz
    Frequency Range Non-DFS Frequencies
    US: 5.94 to 6.42 GHz
    US: 5.19 to 5.23 GHz
    US: 5.75 to 5.79 GHz
    DFS Frequencies
    US: 5.27 to 5.67 GHz
    Latency < 0.01 ms
    RF Power 21 dBm
    Wi-Fi None
    Bluetooth Yes
    Format Support
    Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    480p: 60/59.94
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 59.94
    Audio Format 2-Channel 24-Bit 48 kHz
    Timecode Support Yes
    Power
    DC Input Power 6 to 28 VDC
    Power Consumption 11 W
    Mounting
    Mounting 1 x 1/4"-20 Female
    1 x 3/8"-16 Female
    Environmental
    IP Rating None
    Operating Temperature 32 to 72°F / 0 to 40°C
    General
    Material of Construction Aluminum, Polycarbonate
    Dimensions 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
    Weight 10.3 oz / 292 g
    Packaging Info
    Package Weight 3.49 lb
    Box Dimensions (LxWxH) 16.3 x 9 x 3.6"

    Teradek LT 1500 Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $1,516.68

    Original: $5,055.61

    -70%
    Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver—

    $5,055.61

    $1,516.68
