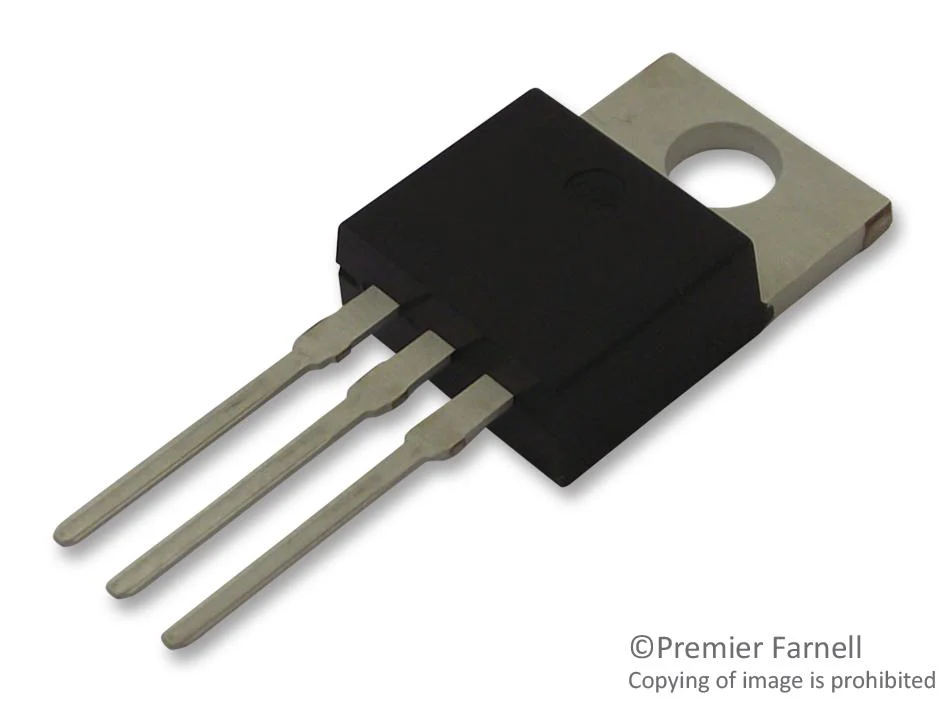

ON Semiconductor ISL9V5036P3-F085 Igbt Single Transistor 46 A 1.17 V 250 W 360 TO-220AB 3 Pins

The ISL9V5036P3_F085 is an EcoSPARK® I N-channel Ignition IGBT offers outstanding SCIS capability in the plastic package. This device is intended for use in automotive ignition circuit, specifically as coil driver. Internal diode provides voltage clamping without the need for external component.

• Logic level gate drive
• 500mJ @ TJ = 25°C SCIS energy
• 250W Total power dissipation at 25°C

Applications

Automotive, Industrial, Power Management

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Other details

Brand	ON SEMICONDUCTOR
Part Number	ISL9V5036P3-F085
Quantity	Each
Technical Data Sheet EN
Technical Data Sheet EN
Product Change Notice EN
