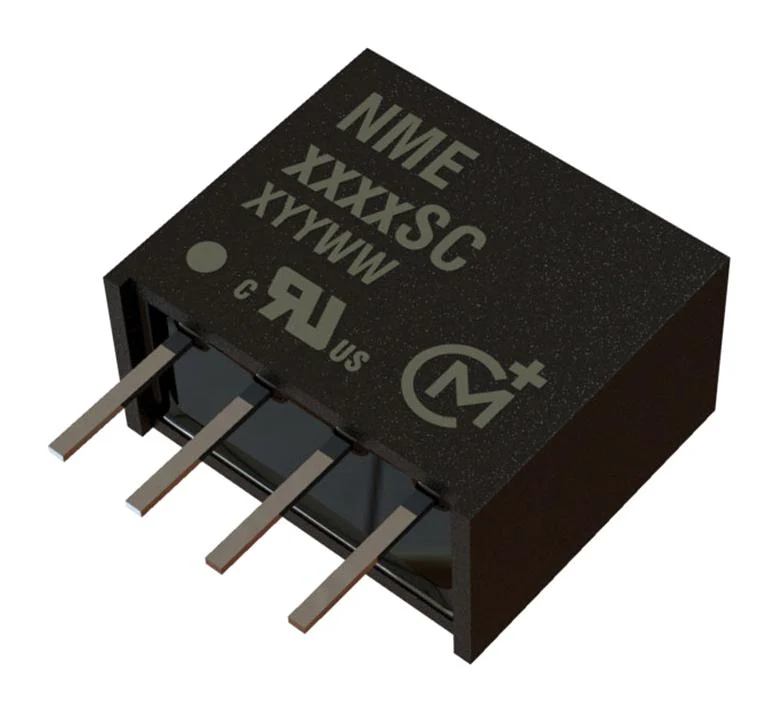

Murata Power Solutions NME2405SC NME2405SC Isolated Through Hole DC/DC Converter ITE 1:1 1 W Output 5 V 200 mA

The NME2405SC is a 1-output 1W board-mount isolated DC to DC Converter particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist.

• 1kVDC Isolation
• Efficiency up to 80%
• 1.45W/cm³ Power density
• Footprint from 0.69cm²
• Industry standard pinout
• No heatsink required
• Internal SMD construction
• Fully encapsulated with toroidal magnetics
• No external components required

Applications

Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MURATA POWER SOLUTIONS
Part Number	NME2405SC
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
