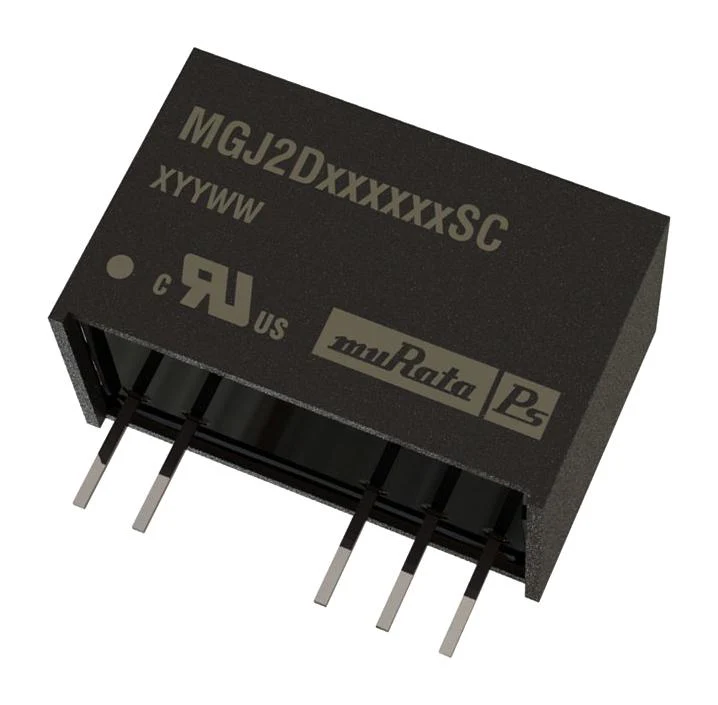

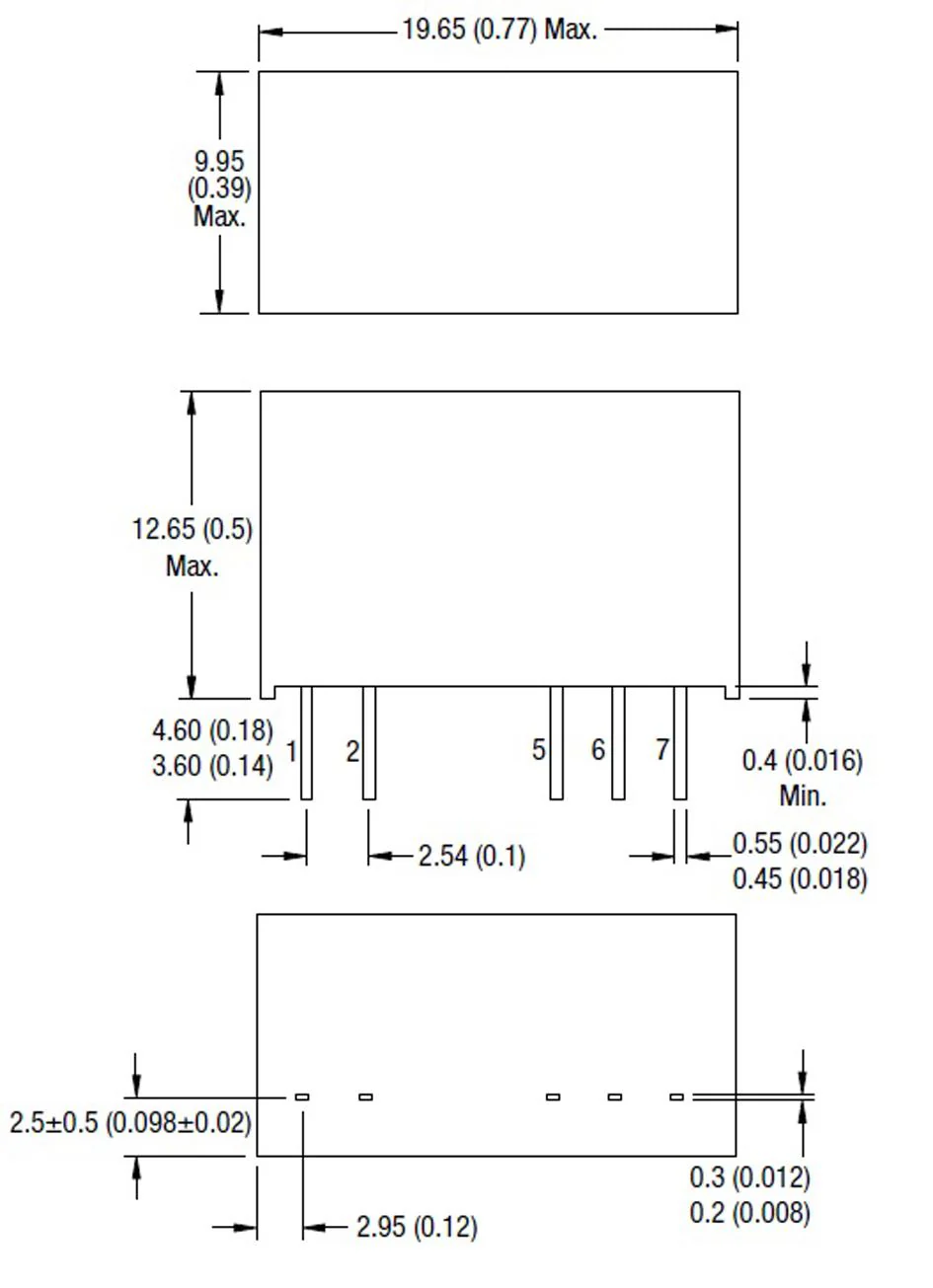

Murata Power Solutions MGJ2D152005SC MGJ2D152005SC Isolated Through Hole DC/DC Converter Gate Drive 1:1 2 W Output 20 V 80 mA

The MGJ2D152005SC is a 2-output 2W board-mount isolated gate-drive DC/DC Converter ideal for powering high-side and low-side gate drive circuits for IGBTs and MOSFETs in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for best system efficiency and EMI. The device is characterized for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters, while the device industrial grade temperature rating and construction gives long service life and reliability.

• Ultra low coupling capacitance
• Characterised dv/dt immunity
• Characterised partial discharge performance
• Power density 0.81W/cm³
• 5.2kVDC Isolation test voltage hi pot test
• 8% Maximum load regulation
• 50mVp-p Maximum ripple and noise
• 81% Typical efficiency
• 3.4pF Isolation capacitance
• 4.5ms Start-up time

Applications

Power Management, Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
