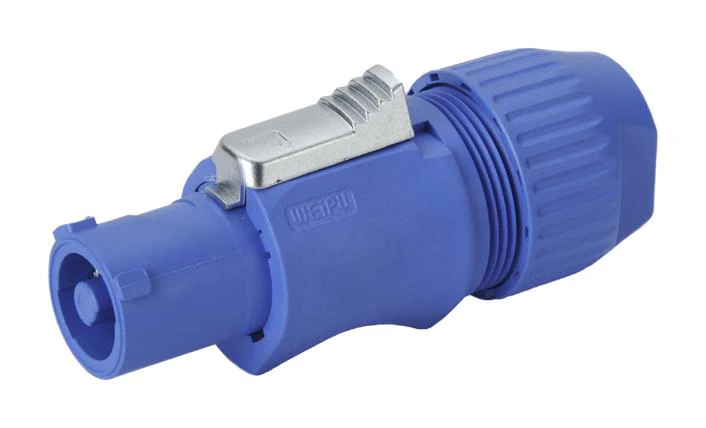

Multicomp PRO MP004798 High Power Connector MP HPC Range Plug 250 VAC 20 A Cable Mount Screw

The MP HPC series are a locking bayonet-style connector that incorporate a sliding locking lever for a secure connection while also being easily disconnected with one hand. The plug has screw style terminations and can accept cables with an outer diameter of 9-13mm whereas the panel mount receptacle has 3/16" flat tab terminals for easy installation.

• Locking bayonet mating
• Single handed connection and disconnect
• Keyway to prevent cross-mating (blue or grey connector)
• IP65 rated
• 20A current rating
• 250VAC voltage rating

Applications

Automation & Process Control, Medical, Security, Test & Measurement, Industrial Automation

Other details

Brand	MULTICOMP PRO
Part Number	MP004798
Quantity	Each
Technical Data Sheet EN
