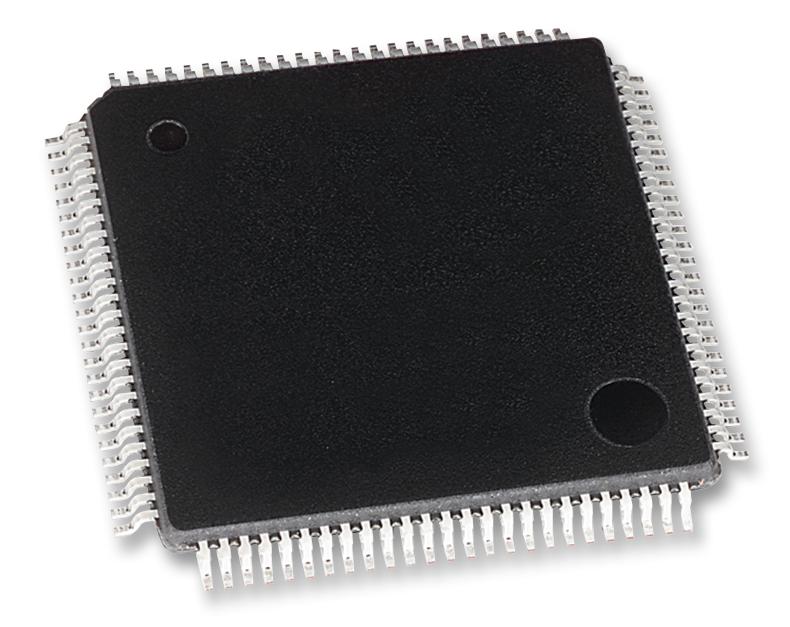

Microchip PIC24EP512GU810-I/PF PIC24EP512GU810-I/PF 16 Bit Microcontroller PIC24 Family PIC24EP GU Series Microcontrollers bit 140 MHz

The PIC24EP512GU810-I/PF is a general purpose PIC24E family highest performance and excellent code density 16-bit Microcontroller packs powerful PIC®(RISC) architecture with up to 70 MIPS of performance at 3.3V. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 512kB of addressable program memory size, 24kB of Auxiliary flash, 53248bytes of data memory size, 83 general-purpose I/O pins, Two 32-channel 10/12-bit analog-to-digital (A/D) converter and one 4-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 140MHz with wide operating voltage of 3 to 3.6V.

• Single cycle execution and fast interrupts (5 cycles)
• Brown-out reset (BOR)
• Power on reset (POR)
• Watch dog timer (WDT)
• 15-Channel DMA
• Three comparators
• Peripheral pin select (PPS)
• full-speed USB 2.0 Device/Host/OTG
• 2x Controller area network (CAN)
• Local interconnect network (LIN)
• IrDA
• Parallel master port
• Nine 16-bit timers
• Four 32-bit timers
• Programmable Cyclic Redundancy Check (CRC)
• Dual boot flash write

Applications

Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security, Multimedia, Communications & Networking, Audio

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC24EP512GU810-I/PF
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
