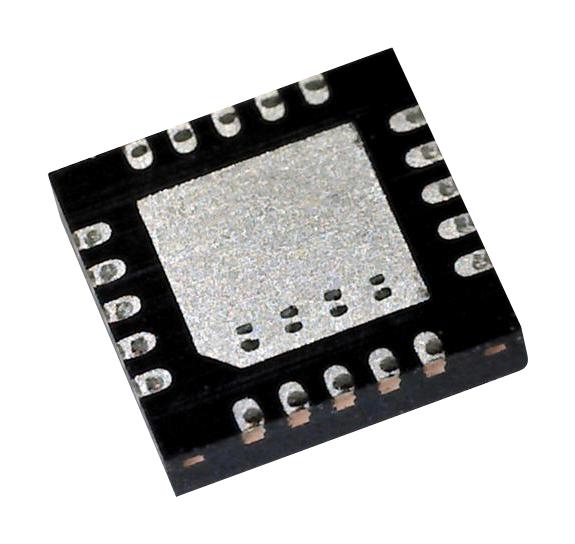

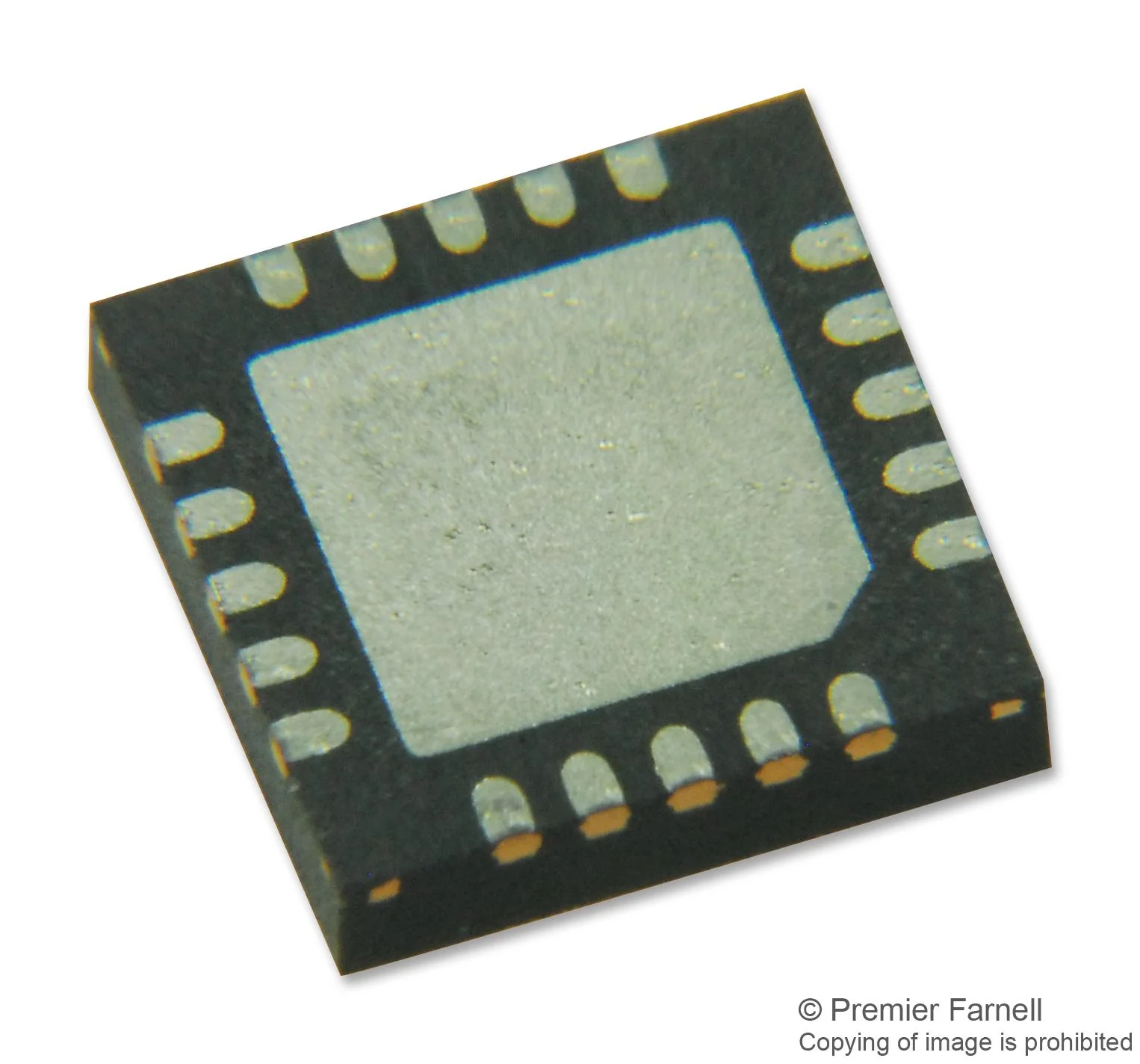

Microchip PIC18F14K22-I/ML PIC18F14K22-I/ML 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 16 KB 20 Pins
Microchip PIC18F14K22-I/ML PIC18F14K22-I/ML 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 16 KB 20 Pins
The PIC18F14K22-I/ML is a 20-pin 512-byte Flash Microcontroller with nanoWatt XLP technology. This new family of device offers all of the advantages of the well recognized PIC18F high performance MCUs, 8-bit, C compiler optimized architecture and an industry leading peripheral set now available in a low pin-count option. This new 20-pin product includes a 16MHz precision internal oscillator which can be used with the standard 4X PLL to produce 16 MIPS of performance (64MHz at 3V). Standard analogue peripherals include 12 channels of 10-bit A/D, dual rail-rail comparators with improved input/output multiplexing and an on-chip selectable fixed voltage reference. Digital peripherals include an enhanced capture/compare/PWM (ECCP+) module with PWM steering and a Master Synchronous Serial Port (MI²C, SPI) module with software controllable address masking. This device also features the SR Latch mode which supports capacitive sensing applications.
- C compiler optimized architecture
- Linear program memory addressing to 16kB
- Linear data memory addressing to 512 bytes
- Flexible oscillator structure - Allows for safe shutdown if peripheral clock stops
- Self-reprogrammable under software control
- Power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)
- Extended watchdog timer (WDT) with on-chip oscillator and software enable
- In-Circuit Serial Programming� (ICSP�) via two pins
- In-Circuit Debug via two pins
- Peripheral - Enhanced capture/compare/PWM (ECCP) module with PWM output steering
- 50nA Typical sleep mode
- 600nA Typical watchdog timer
Power Management, Industrial, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | PIC18F14K22-I/ML |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.07
Original: $3.58
-70%Microchip PIC18F14K22-I/ML PIC18F14K22-I/ML 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 16 KB 20 Pins—
$3.58
