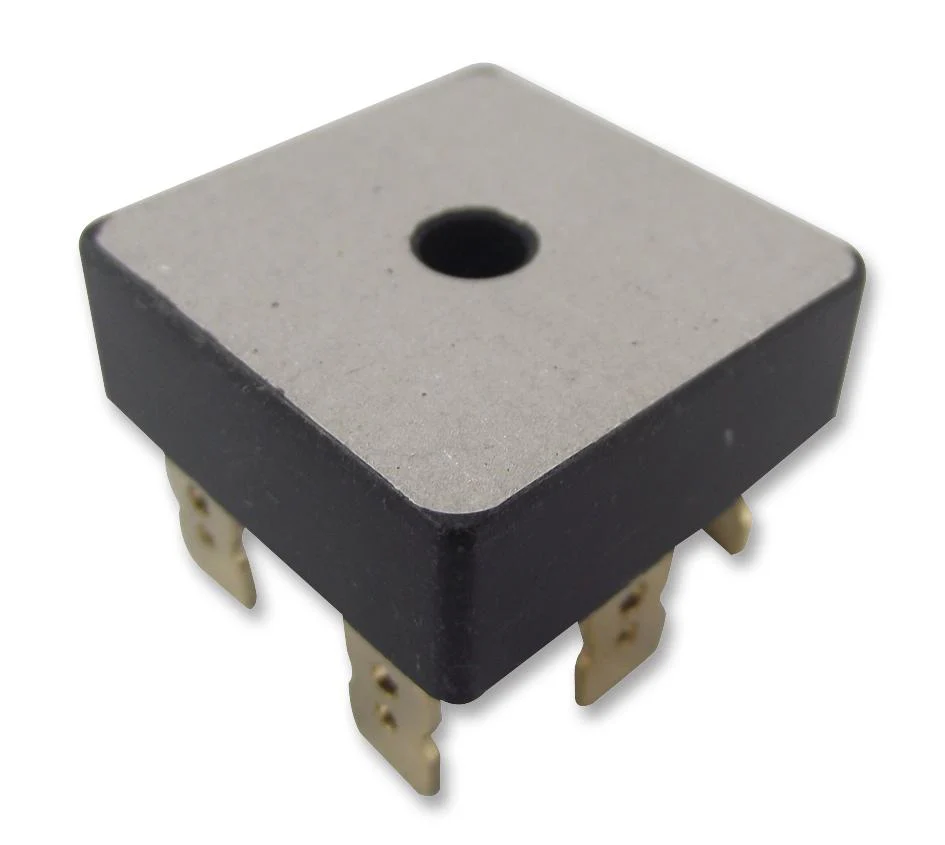

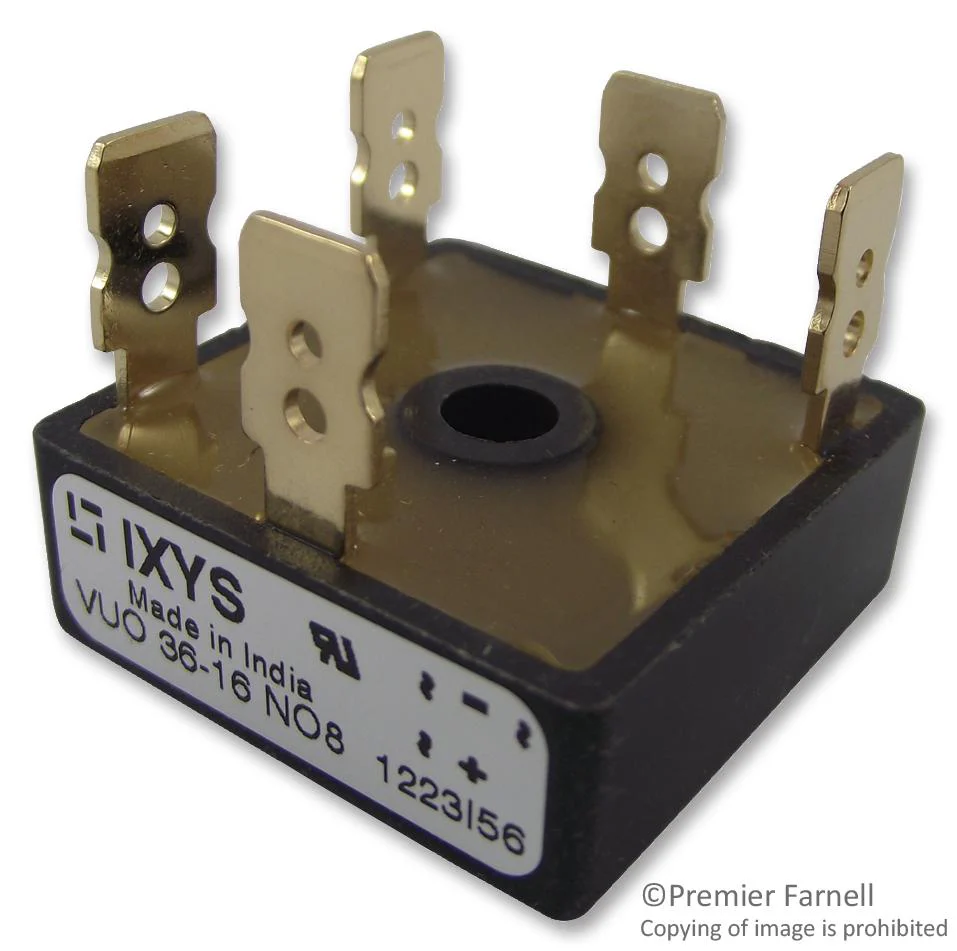

IXYS SEMICONDUCTOR VUO36-16NO8 Bridge Rectifier, Three Phase, 1.6 kV, 35 A, Module, 5 Pins, 1.7 V
IXYS SEMICONDUCTOR VUO36-16NO8 Bridge Rectifier, Three Phase, 1.6 kV, 35 A, Module, 5 Pins, 1.7 V
The VUO36-16NO8 is a Standard Rectifier Module with 1/4-inch fast-on terminals. The rectifier module features planar passivated chips, very low forward voltage drop and improved thermal behaviour. This rectifier module is suitable for three-phase bridge configurations.
- Very low leakage current
- Easy to mount with one screw
- 0.76V Threshold voltage
- 9.1mΩ Slope resistance
- 17W at 25°C Total power dissipation
- 18pF at 400V/1MHz Junction capacitance
Applications
Mains Rectification
Product details
Other details
| Brand | IXYS SEMICONDUCTOR |
| Part Number | VUO36-16NO8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$7.83
Original: $26.11
-70%IXYS SEMICONDUCTOR VUO36-16NO8 Bridge Rectifier, Three Phase, 1.6 kV, 35 A, Module, 5 Pins, 1.7 V—
$26.11
$7.83More Images
IXYS SEMICONDUCTOR VUO36-16NO8 Bridge Rectifier, Three Phase, 1.6 kV, 35 A, Module, 5 Pins, 1.7 V
The VUO36-16NO8 is a Standard Rectifier Module with 1/4-inch fast-on terminals. The rectifier module features planar passivated chips, very low forward voltage drop and improved thermal behaviour. This rectifier module is suitable for three-phase bridge configurations.
- Very low leakage current
- Easy to mount with one screw
- 0.76V Threshold voltage
- 9.1mΩ Slope resistance
- 17W at 25°C Total power dissipation
- 18pF at 400V/1MHz Junction capacitance
Applications
Mains Rectification
Product details
Other details
| Brand | IXYS SEMICONDUCTOR |
| Part Number | VUO36-16NO8 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
