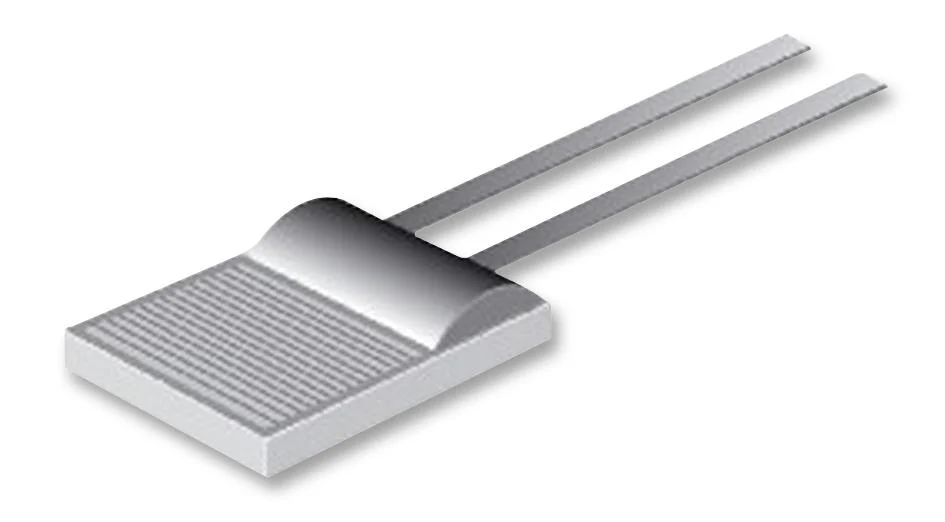

IST Innovative Sensor Technology P0K1.202.3FW.A.007 P0K1.202.3FW.A.007 RTD Flat Wire Class A -200 °C 300 100 ohm 300°C Series
IST Innovative Sensor Technology P0K1.202.3FW.A.007 P0K1.202.3FW.A.007 RTD Flat Wire Class A -200 °C 300 100 ohm 300°C Series
- P0K1.202.3FW.A.007 platinum sensor with wires for low to medium temperatures
- Excellent long-term stability
- Low self-heating
- Optimal price/performance ratio
- Operating temperature range from 200°C to +300°C
- Nominal resistance of 100 ohm at 0°C, characteristics curve of 3850ppm/K
- Long-term stability of < 0.04% at 1000h at maximal operating temperature
- Connection: Ni-flat-wire Au-coated, 0.2 x 0.4 mm (HxW) (solderable, weldable, crimpable), 7mm long
- Dimension is 2mm x 2mm x 0.65mm / 1.3mm (L x W x H / H2 in mm)
Other details
| Brand | IST INNOVATIVE SENSOR TECHNOLOGY |
| Part Number | P0K1.202.3FW.A.007 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $5.78
-70%$5.78
$1.73IST Innovative Sensor Technology P0K1.202.3FW.A.007 P0K1.202.3FW.A.007 RTD Flat Wire Class A -200 °C 300 100 ohm 300°C Series
- P0K1.202.3FW.A.007 platinum sensor with wires for low to medium temperatures
- Excellent long-term stability
- Low self-heating
- Optimal price/performance ratio
- Operating temperature range from 200°C to +300°C
- Nominal resistance of 100 ohm at 0°C, characteristics curve of 3850ppm/K
- Long-term stability of < 0.04% at 1000h at maximal operating temperature
- Connection: Ni-flat-wire Au-coated, 0.2 x 0.4 mm (HxW) (solderable, weldable, crimpable), 7mm long
- Dimension is 2mm x 2mm x 0.65mm / 1.3mm (L x W x H / H2 in mm)
Other details
| Brand | IST INNOVATIVE SENSOR TECHNOLOGY |
| Part Number | P0K1.202.3FW.A.007 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- P0K1.202.3FW.A.007 platinum sensor with wires for low to medium temperatures
- Excellent long-term stability
- Low self-heating
- Optimal price/performance ratio
- Operating temperature range from 200°C to +300°C
- Nominal resistance of 100 ohm at 0°C, characteristics curve of 3850ppm/K
- Long-term stability of < 0.04% at 1000h at maximal operating temperature
- Connection: Ni-flat-wire Au-coated, 0.2 x 0.4 mm (HxW) (solderable, weldable, crimpable), 7mm long
- Dimension is 2mm x 2mm x 0.65mm / 1.3mm (L x W x H / H2 in mm)
Other details
| Brand | IST INNOVATIVE SENSOR TECHNOLOGY |
| Part Number | P0K1.202.3FW.A.007 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
