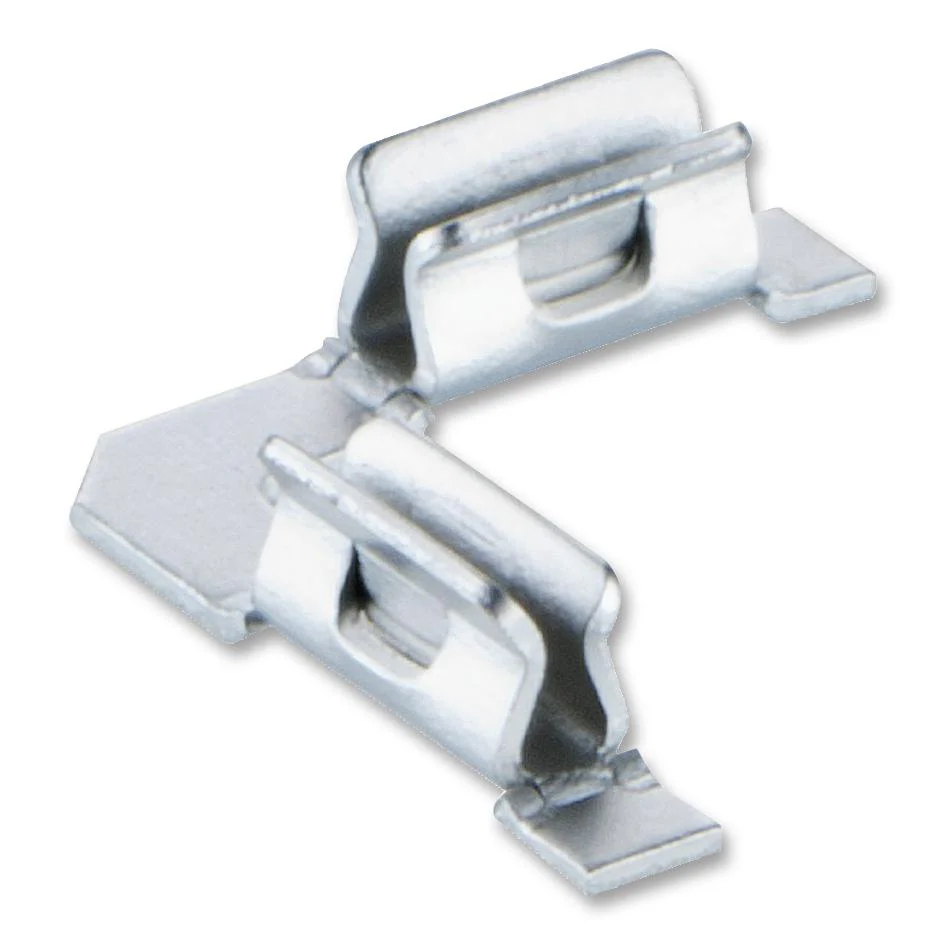

Harwin S0981-46R S0981-46R Shield Clip RFI Right Angle Stainless Steel Surface Mount 4.7mm x 1.3mm Size
Harwin S0981-46R S0981-46R Shield Clip RFI Right Angle Stainless Steel Surface Mount 4.7mm x 1.3mm Size
- SMT RFI shield clip for EMI/RFI shields, corner
- Corner type (4.7mm long, 1.3mm high), for shield thickness 0.2-0.25mm
- Tin finish on contact area and termination
- Recommended for use with S02-20150300, S02-25200300 or S02-30200250 shield cans
- Top entry
- Operating temperature range from -25°C to +150°C
- Vertical connector orientation
- Stainless steel base material of contact
- 4.7mm x 4.7mm x 1.3mm overall dimension (L x W x D)
Product details
| Clip Type | RFI Shield Clip |
| Clip Diameter | - |
| Mounting Hole Dia | - |
| Product Range | - |
Other details
| Brand | HARWIN |
| Part Number | S0981-46R |
| Quantity | Each |
| Drawing EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
