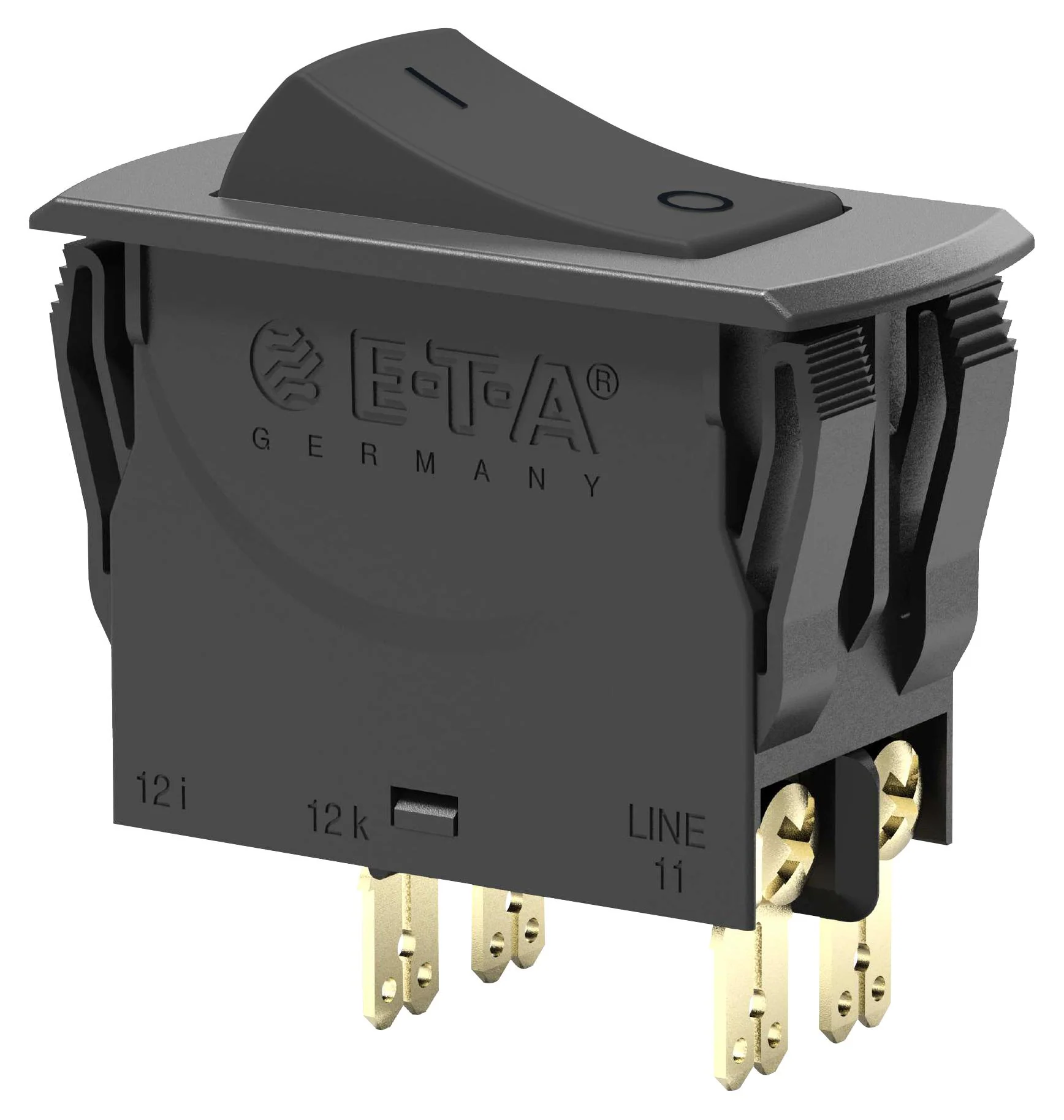

ETA 3120-N521-H7T1-W01D-5A 3120-N521-H7T1-W01D-5A Thermal Circuit Breaker On-Off 3120-N Series 5 A 2 Pole 50 V 240 Snap In New
ETA 3120-N521-H7T1-W01D-5A 3120-N521-H7T1-W01D-5A Thermal Circuit Breaker On-Off 3120-N Series 5 A 2 Pole 50 V 240 Snap In New
3120-N521-H7T1-W01D-5A is a 3120-N thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermobimetal. This type is ideally suited for overload protection of motors, pumps, transformers, and cables. After tripping, it can reliably, easily, and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked. Functional extension options with add-on modules for low voltage release, auxiliary contact function, remote trip or fast magnetic trip. Typical application includes medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, office machines, audio equipment, machine tools, household, hobby, and garden equipment, industrial equipment control, and medical technology.
- Snap-in, mounting cut-out 44.5 x 22mm mounting method, 2pole switching, 2pole thermally protected
- Standard style
- Thermal trip cure, rocker actuator, black without illumination rocker colour and illumination opaque
- Current rating is 5A
- Double pole thermal circuit breaker/switch combination
- Expandable functionality through appliance inlet module
- Suitable for use in medical equipment according to IEC/EN 60601
- Reduced mounting and wiring time, space saving design
- Reduced disposition and storage costs, increased overall reliability
- Ambient temperature range from -30 to 60°C
Other details
| Brand | ETA |
| Part Number | 3120-N521-H7T1-W01D-5A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
