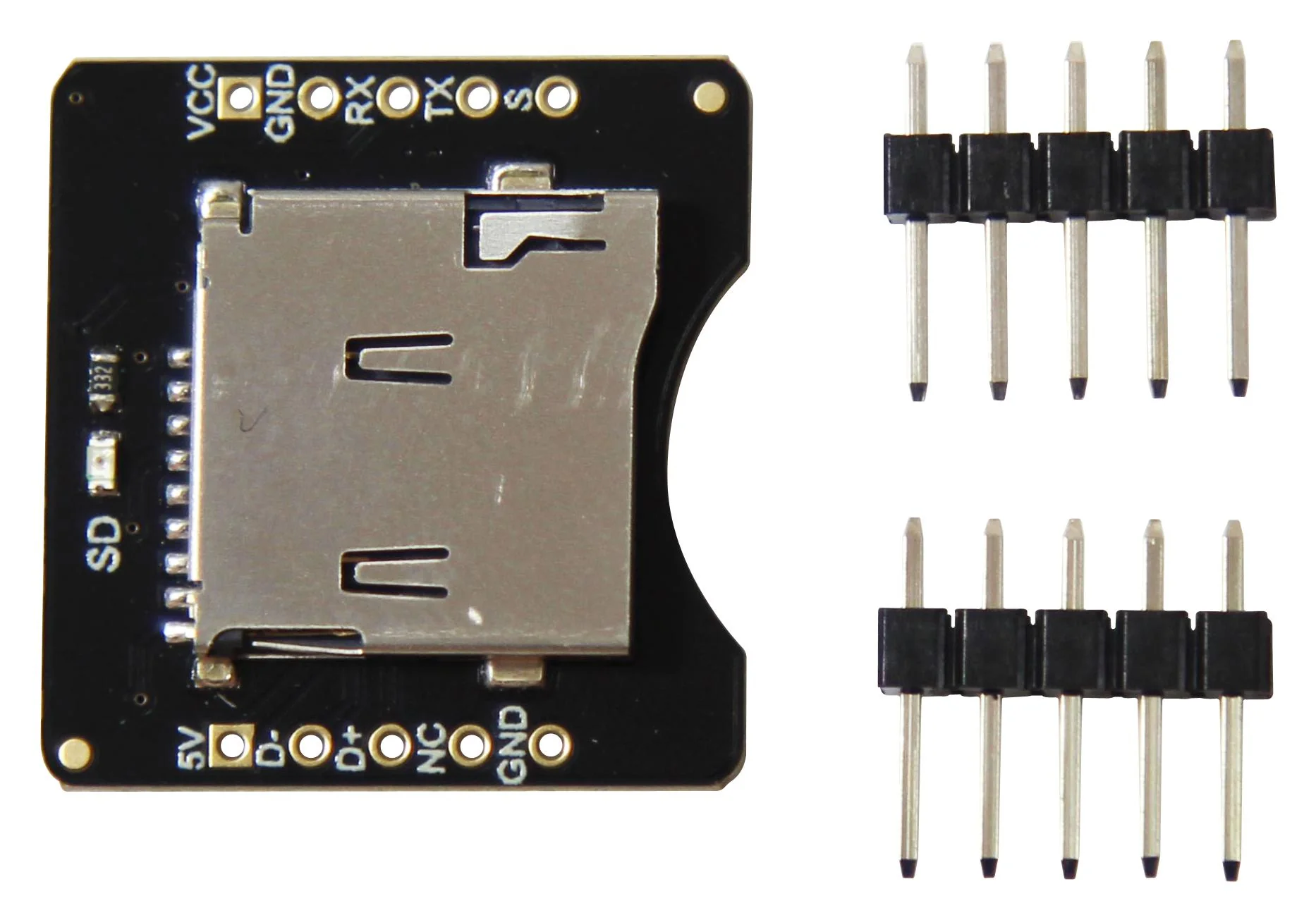

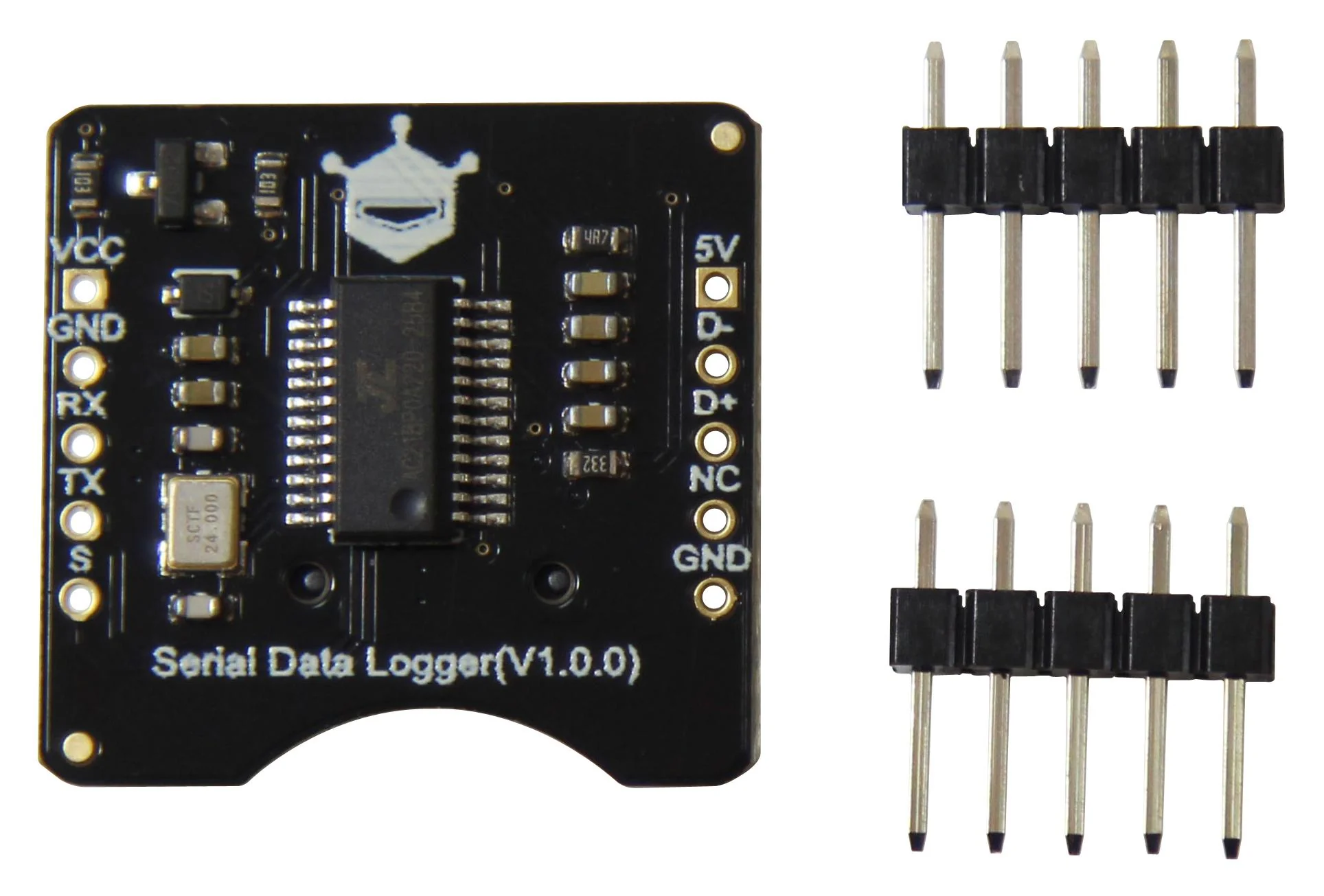

Dfrobot TEL0148 TEL0148 Serial Data Logger Board 3.3 V to 5 Arduino UNO R3

TEL0148 is a Fermion: serial data logger for Arduino. This Fermion: Serial Data Logger can store data more conveniently, and supports direct data printing through serial port without additional codes. It is used for offline data collection, capture product debug logs and for robots and drones debug.

• With USB function, no card reader required
• Support multiple baud rates, with good compatibility
• LED indicator for viewing data writing status visually
• FAT32 file system, support 32GB TF card
• On-board SAVE pin makes it easier to store data into separate files.
• Supply voltage range from 3.3V to 5V, operating current is 23mA
• Operating temperature range from -30°C to 85°C and humidity range from 5%RH to 85%RH
• Dimension is 23.5 x 22.5mm

Contents

Fermion: serial data logger x1, 2.54-5P black single-row connector x2.

Other details

Brand	DFROBOT
Part Number	TEL0148
Quantity	Each
Technical Data Sheet EN
