Dfrobot DFR0563 DFR0563 Battery Fuel Gauge Gravity I2C 3.7V Lithium Dfrduino UNO R3 & Raspberry Pi 3B Development Board
Dfrobot DFR0563 DFR0563 Battery Fuel Gauge Gravity I2C 3.7V Lithium Dfrduino UNO R3 & Raspberry Pi 3B Development Board

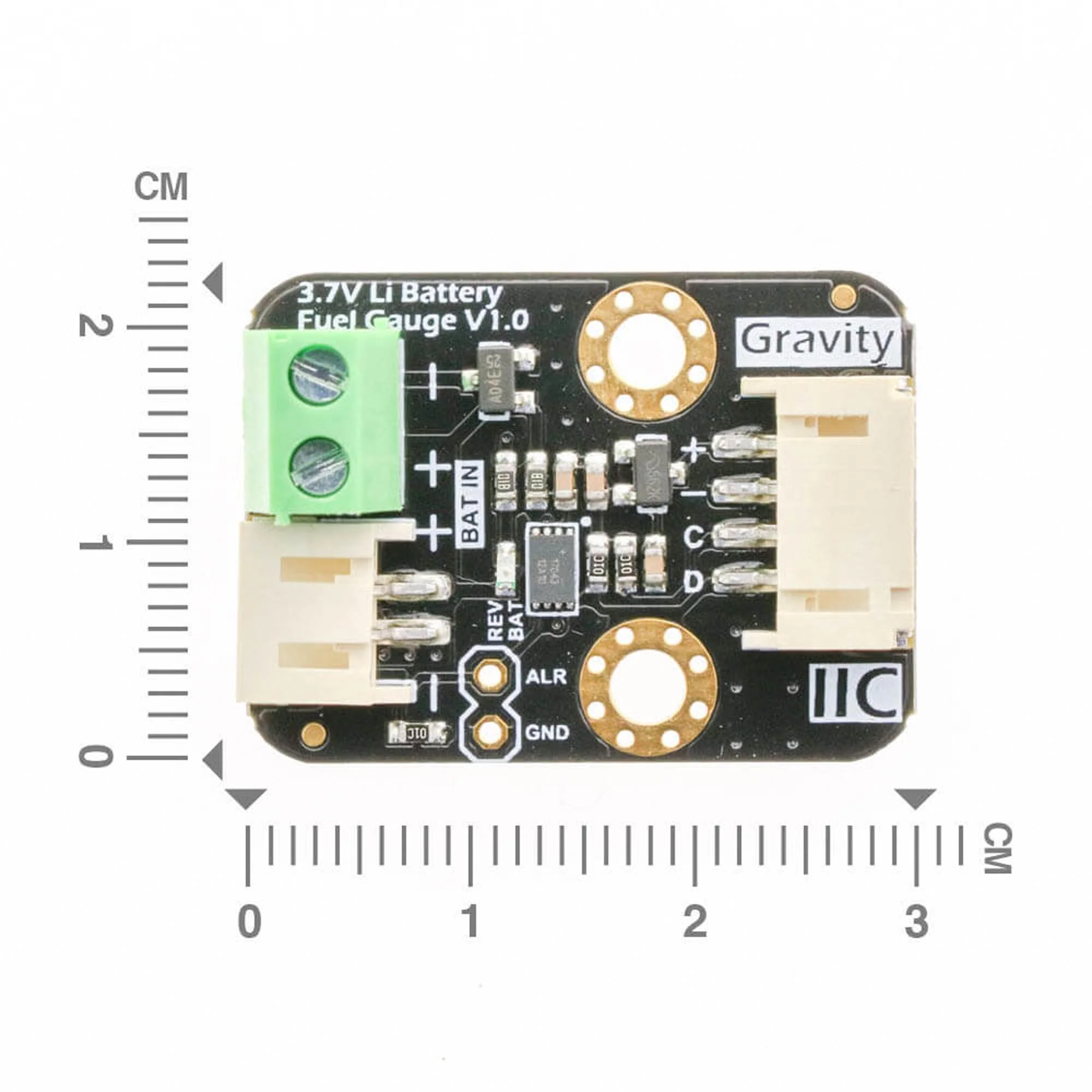

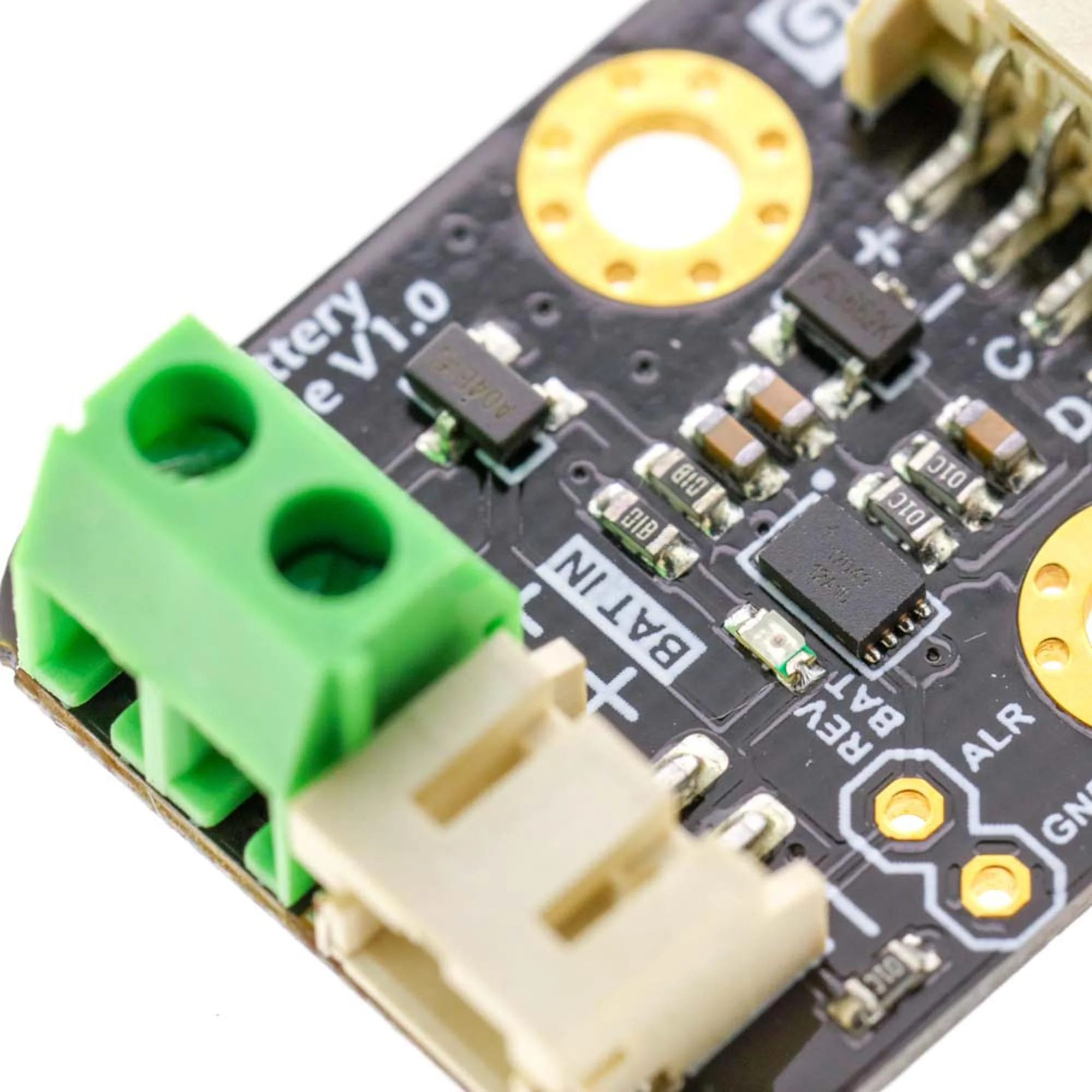

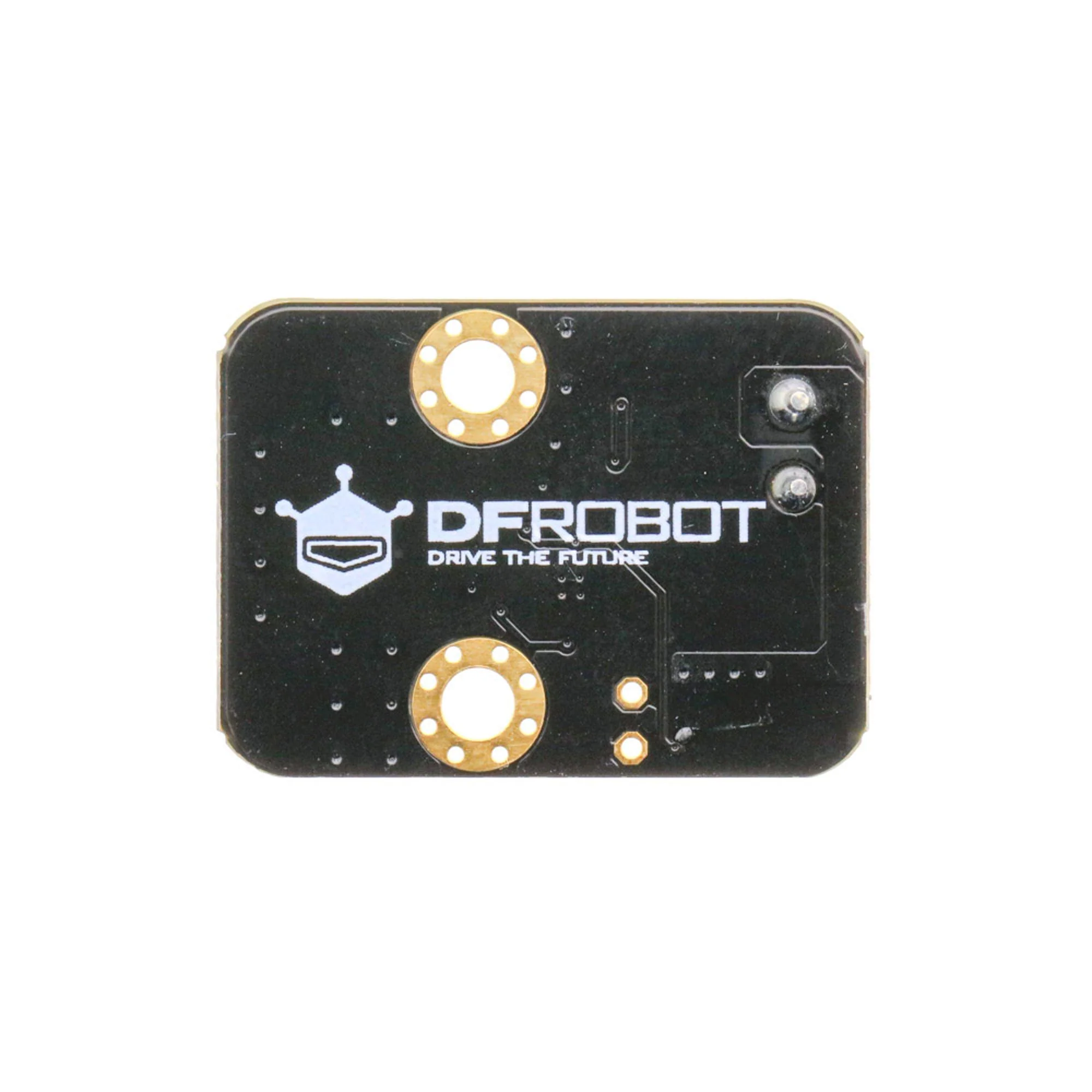

- Gravity I2C 3.7V Li battery fuel gauge module
- Maxim's patented algorithm, accurate voltage and remaining power readings of lithium battery
- No full-to-empty relearning process, no offset accumulation errors, plug and play
- Wide input voltage, compatible with 3.3V and 5V controllers
- Programmable low power alert interrupt threshold
- Battery reverse connection protection
- Used for solar weather station, street light, lithium battery charger and robotics
- 3.3V to 6.0V input voltage (VCC), 2.5V to 4.2V battery input voltage (BAT IN)
- 3.7V Li-polymer/Li-ion battery, 50uA operating current
- Gravity I2C (logic level: 0-3.3V) interface, 22.0 x 30.0mm dimension
Gravity: I2C 3.7V Li Battery Fuel Gauge x1, xh2.54-2P Header x1, Gravity-4P I2C/ UART Sensor Wire x1.
Product details
| Silicon Manufacturer | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Silicon Family Name | - |
| For Use With | DFRduino UNO R3 & Raspberry Pi 3B Development Boards |
| Kit Contents | Gravity I2C 3.7V Li Battery Fuel Gauge, XH2.54-2P Header, Gravity-4P I2C/ UART Sensor Wire |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | DFR0563 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Product Page EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
