DFROBOT FIT0562 Backlight Module, LCD, RGB, Arduino Development Boards
Product Overview
FIT0562 is a RGB LCD backlight module. The Gravity: I2C 16x2 Arduino LCD with RGB backlight display which backlight can be modulated to the different backlight colours and the display effect is very brilliant. This RGB LCD backlight panel is its internal backlight component. The RGB LCD backlight panel uses the RGB colour model, this is an industry colour standard that produces a wide variety of colours by varying three colour channels: red (R), green (G), and blue (B), a total of 16 million colours, nearly all colours that human vision can perceive. The RGB LCD backlight board has a built-in common anode diode with the black edge at the pins facing up, the pins from left to right are red, power positive, green and blue. It can be used for both backlighting and LED indicators.
- 3V(min) 3.2V(max) forward voltage

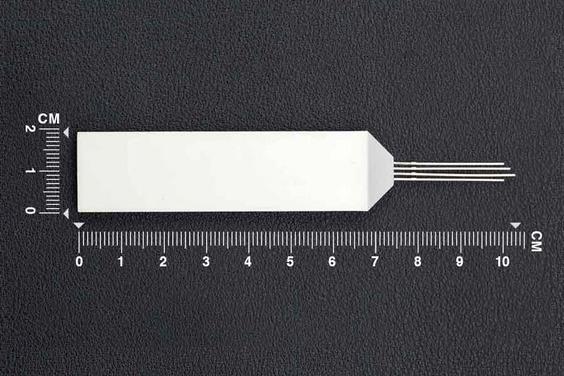

- Size: length 7.32 x 1.85 x 0.28cm
- 5V reverse voltage
- 75mW limit power consumption
- Temperature condition range from -40 to 80°C
Product details
Other details
| Brand | DFROBOT |
| Part Number | FIT0562 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
